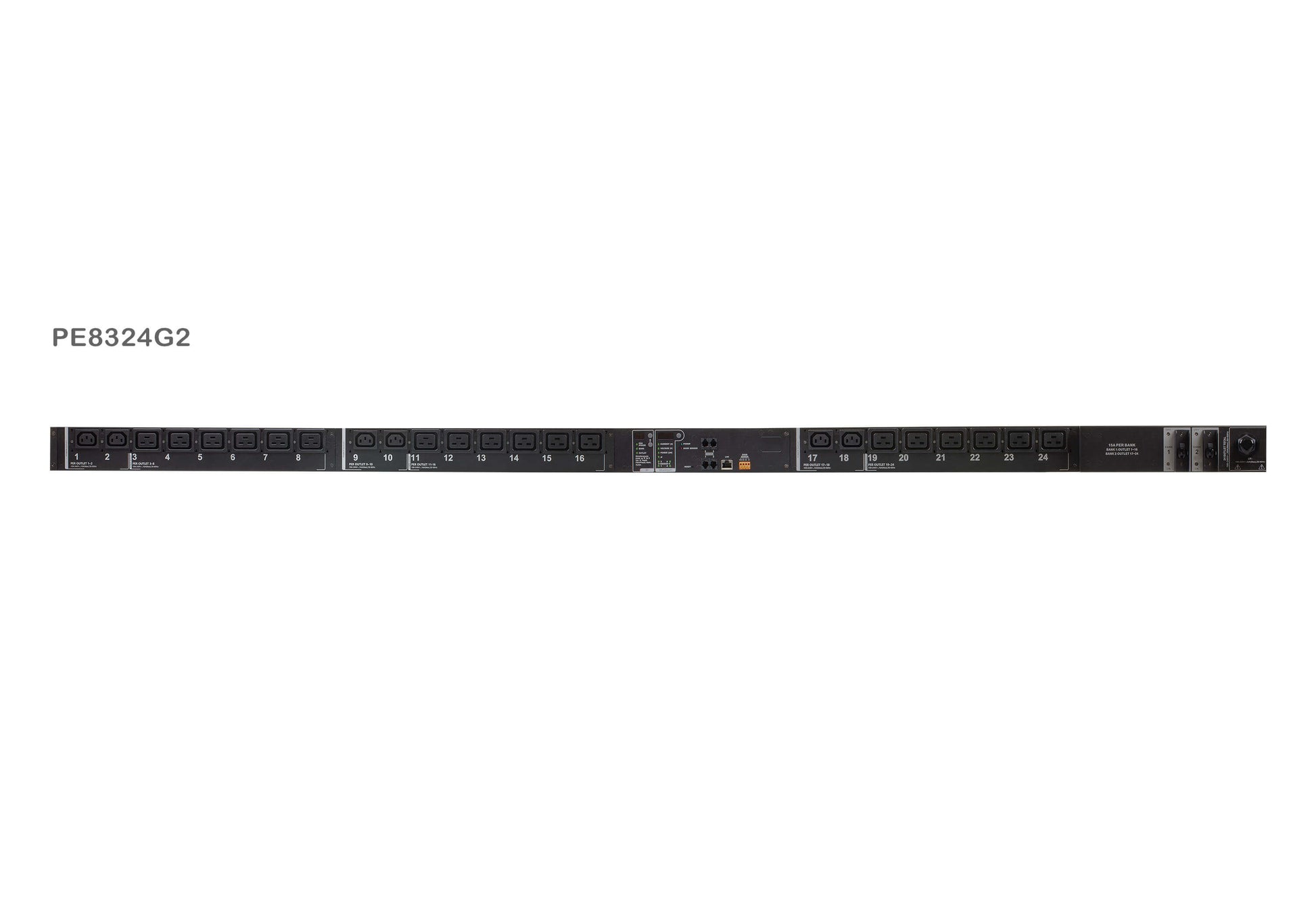

ATEN PE8324G2-AT | NRGence eco PDU 24-Outlet Switched & Metered, IEC 60309 32A, 0U

ATEN PE8324G2-AT | NRGence eco PDU 24-Outlet Switched & Metered, IEC 60309 32A, 0U

PE8324G2-AT

Stock Status: Enquire

$3,572.36 AUD
$3,572.36 AUD
$3,572.36 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN PE8324G2 is an intelligent 0U rack PDU delivering outlet-level metering and switching across 24 AC outlets, purpose-built for data centre power optimisation. Accepting an IEC 60309 32A input at 100–240 VAC, it provides real-time current, voltage, power, and energy monitoring at PDU, bank, and individual outlet level — giving IT and facilities teams granular visibility and remote control over every connected device via TCP/IP. Proactive Overload Protection (POP) automatically sheds load before breakers trip, while configurable power-on sequencing and scheduling reduce inrush and enable automated energy management.

As part of ATEN's NRGence green energy ecosystem, the PE8324G2 integrates with NRGence eco DC DCIM and CC2000 for enterprise-wide power analysis, department-level reporting, and multi-site management. Security is enterprise-grade with SNMP V1/V2/V3, RADIUS, 128-bit SSL, and IP/MAC filtering. Up to 4 environmental sensor ports enable temperature and humidity monitoring directly from the PDU. Contact iptrading.com.au — your local source for enterprise-grade networking solutions.

Features

- Outlet-level remote power control — On/Off and Power Cycle for individual outlets and outlet groups
- Real-time metering of current, voltage, power, power dissipation, temperature, and humidity at PDU, bank, and outlet level with configurable threshold alerts
- Proactive Overload Protection (POP) — automatically sheds the last overload-causing outlet with user-defined shutdown priority
- Power-On sequencing — configure power-on order and delay per outlet to manage inrush current
- Outlet and outlet-group scheduling — daily, weekly, or custom on/off schedules for automated energy management
- Multiple power control methods: Wake on LAN, System After AC Back, Kill the Power
- 4 external environmental sensor ports for temperature/humidity monitoring plus door sensor support
- Enterprise security: SNMP V1/V2/V3, RADIUS, 128-bit SSL, IP/MAC filtering, three-level account/password management
- Compatible with NRGence eco DC DCIM Web GUI and CC2000 for enterprise-wide power analysis and reporting
- Browser-based management UI (IE, Firefox, Chrome, Safari) with network firmware upgrade support
- Comprehensive power analysis reports separable by department and location

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form Factor: 0U (vertical rack mount)
- Number of Outlets: 24 AC outlets (IEC socket configuration)
- Input Connection: IEC 60309 32A
- Nominal Input Voltage: 100–240 VAC
- Maximum Input Current: 30A
- Maximum Input Power: 7,360 VA
- Input Frequency: 50–60 Hz
- Metering Level: PDU / Bank / Outlet level
- Outlet Switching: Individual and group (On/Off, Power Cycle)
- Network Interface: RJ-45 — TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, ARP, NTP, DNS, Telnet, Ping
- SNMP: V1, V2 and V3
- Security: RADIUS, 128-bit SSL encryption, IP/MAC filter, three-level account management
- Environmental Sensor Ports: 4 (temperature/humidity sensors supported)
- Door Sensor Port: Yes
- Management Compatibility: NRGence eco DC (DCIM Web GUI), CC2000
- Browser Support: IE, Firefox, Chrome, Safari

FAQs

Q: What is the input power connection on the PE8324G2?
A: The PE8324G2 uses an IEC 60309 32A inlet, supporting 100–240 VAC at 50–60 Hz with a maximum input current of 30A and up to 7,360 VA input power capacity.

Q: Can I control and monitor each outlet individually?
A: Yes. The PE8324G2 supports outlet-level remote switching (On/Off and Power Cycle) and real-time metering — including current, voltage, power, and energy consumption — for each of the 24 outlets individually, as well as at bank and PDU level.

Q: What is Proactive Overload Protection (POP) and how does it work?
A: POP automatically powers off the last outlet that caused an overload condition before circuit breakers trip, protecting connected equipment. Administrators can configure a priority order for outlet shutdown, giving critical devices the highest protection.

Q: Does the PE8324G2 support enterprise network management systems?
A: Yes. It supports SNMP V1, V2 and V3, enabling integration with enterprise NMS platforms. It also works with ATEN's NRGence eco DC DCIM Web GUI and CC2000 for centralised energy management, power analysis reporting, and multi-site oversight.

Q: Can I monitor temperature and humidity from this PDU?
A: Yes. The PE8324G2 includes 4 environmental sensor ports that support external temperature and humidity sensors, as well as a door sensor port — delivering environmental monitoring directly through the PDU's management interface.

Q: Can I purchase the ATEN PE8324G2 in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is a local Australian reseller of ATEN power distribution and data centre infrastructure products. Contact us for pricing, availability, and configuration advice tailored to your deployment.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
