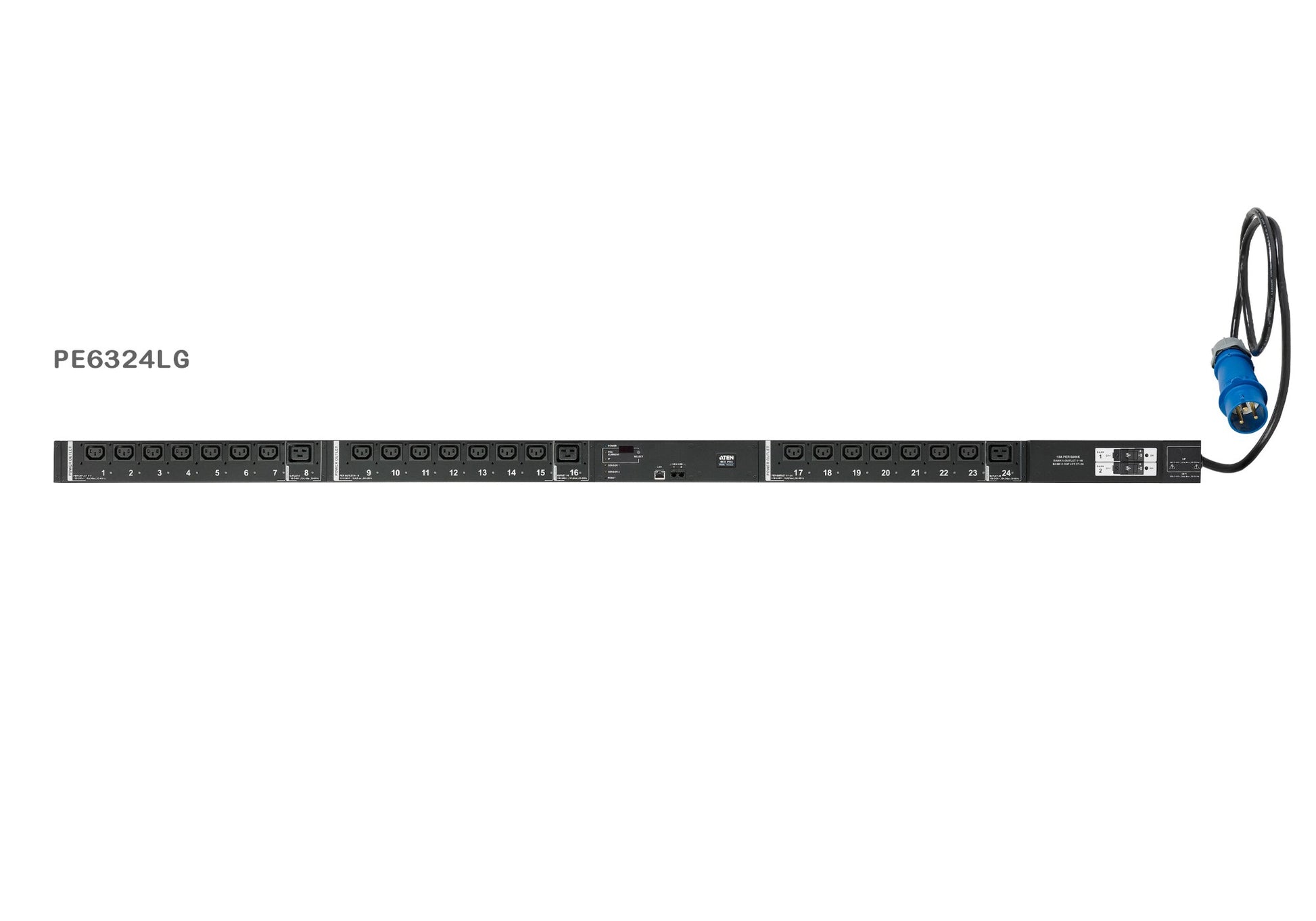

ATEN PE6324LG-AX | eco PDU 0U Switched Bank-Metered, 32A, 21x C13 + 3x C19

Name: ATEN PE6324LG-AX | eco PDU 0U Switched Bank-Metered, 32A, 21x C13 + 3x C19
Brand: ATEN
SKU: PE6324LG-AX
Price: 2018.94 AUD
Availability: BackOrder

Authorised ATEN Partner

SKU:PE6324LG-AX

Stock Status: Enquire

$2,018.94 inc. GST

$1,835.40 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The ATEN PE6324LG-AX is a 0U switched, bank-metered rack PDU for data centre and server room racks. It provides 24 outlets (21 x IEC320 C13 and 3 x IEC320 C19) fed from a 32A IEC 60309 input, with bank-level monitoring of current, voltage, VA, power factor and kWh and remote per-outlet switching over TCP/IP.

The low-profile eco PDU design uses a smaller input region to free up installation space, and two 16A slim breakers protect the outlet banks. Proactive Overload Protection powers off outlets on current overload, two environmental sensor ports support temperature and humidity monitoring, and SNMP v1/v2/v3 support allows integration with ATEN eco DC and third-party management platforms.

Features

- Bank-level power metering and monitoring
- Remote outlet control with On/Off and Power Cycle for individual outlets and outlet groups
- Proactive Overload Protection automatically powers off outlets on current overload
- Power-on sequencing with per-outlet delay
- Wake on LAN, System After AC Back and Kill the Power control methods
- Supports external temperature and temperature and humidity sensors
- Works with ATEN eco DC and third-party SNMP v1/v2/v3 managers
- Low-profile design gives more installation space around the input region

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Form factor: 0U low-profile eco PDU
- Outlets: 24 total, 21 x IEC320 C13 + 3 x IEC320 C19
- Input connection: IEC 60309 32A
- Input voltage: 100 - 240 VAC, 50-60 Hz
- Maximum input current: 30A
- Maximum input power: 7360 VA
- Outlet current limits: C13 10A max, C19 16A max, 16A max per bank
- Breakers: 2 x 16A slim breakers
- Metering: bank-level current, voltage, VA, PF and kWh
- Outlet switching: Yes
- Environmental sensor ports: 2
- Network: 10/100 Mbit Ethernet, SNMP v1/v2/v3, HTTPS, SSL, SMTP, NTP, DHCP, DNS
- Security: 2-level account and password, IP/MAC filter, 128-bit SSL, RADIUS
- Dimensions (L x W x H): 177.5 x 6.6 x 4.4 cm
- Weight: 5.76 kg
- Power cord length: 1.6 m
- Operating temperature: 0-40 C

FAQs

Q: What input connection does the PE6324LG-AX use?
A: It uses an IEC 60309 32A input with a 1.6 m power cord, supporting 100 - 240 VAC at 50-60 Hz and up to 30A maximum input current.

Q: What outlets are provided?
A: It provides 24 outlets in total: 21 x IEC320 C13 and 3 x IEC320 C19, split across three banks of eight outlets.

Q: Does it provide per-outlet metering?
A: No. Metering is at bank level, covering current, voltage, VA, power factor and kWh. Outlet switching is available per outlet and per outlet group.

Q: Can outlets be switched on and off remotely?
A: Yes. Individual outlets and outlet groups can be switched On/Off or power cycled remotely over TCP/IP, with power-on sequencing and per-outlet delay.

Q: Can I monitor rack temperature and humidity?
A: Yes. It has two environmental sensor ports for external temperature or temperature and humidity sensors.

Q: Which management protocols are supported?
A: It supports SNMP v1/v2/v3, HTTP/HTTPS, SSL, Telnet, SMTP, NTP, DHCP and DNS over a 10/100 Mbit Ethernet connection, with RADIUS authentication and IP/MAC filtering.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
