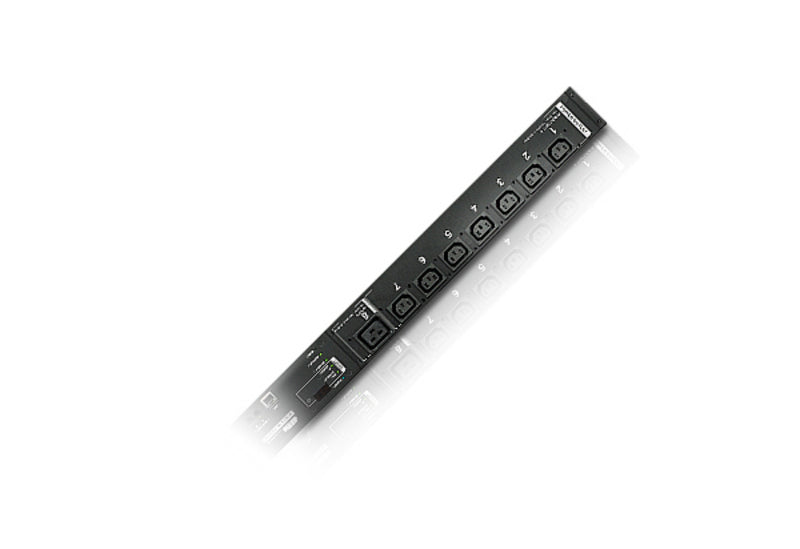

ATEN PE6216G-AX-G | eco PDU 0U Metered Switched PDU, 16A, 14x C13 + 2x C19

Name: ATEN PE6216G-AX-G | eco PDU 0U Metered Switched PDU, 16A, 14x C13 + 2x C19
Brand: ATEN
SKU: PE6216G-AX-G
Price: 1764.68 AUD
Availability: BackOrder

Authorised ATEN Partner

SKU:PE6216G-AX-G

Stock Status: Enquire

$1,764.68 inc. GST

$1,604.25 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The ATEN PE6216G-AX-G is a 0U rack-mount metered and switched PDU with 16 outlets, 14 x IEC C13 and 2 x IEC C19, fed through a single 16A IEC C20 input on 100-240 VAC. It provides per-outlet switching and bank-level metering, so IT teams can remotely power-cycle equipment and track current, voltage, VA, power factor and kWh from a browser interface.

The unit mounts at the rear of the rack and keeps its own management power separate from the outlets, so the interface stays reachable if the circuit breaker trips. It includes two environment sensor ports, power-on sequencing with a configurable delay per outlet, Proactive Overload Protection, event logging and syslog support, and security options including SSL and RADIUS authentication. The free eco PDU Manager software supports centralised management.

Features

- Space-saving 0U rack-mount design with rear mounting
- Remote power control via TCP/IP and a built-in 10/100 Ethernet port
- Separate power for the unit and its outlets, so the interface stays reachable if the circuit breaker trips
- Power-on sequencing with a configurable delay per outlet
- Proactive Overload Protection (POP) powers off outlets when current overloads
- Real-time current, voltage and power monitoring in a browser UI at PDU and bank level
- Support for external temperature, humidity and differential pressure sensors
- Current and voltage threshold settings
- Outlet naming and per-outlet user access assignment
- Event logging and syslog support
- Upgradeable firmware
- Password protection, 128-bit SSL and RADIUS authentication
- Up to 8 user accounts and 1 administrator account
- Free eco PDU Manager software

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 16 outlets: 14 x IEC 60320 C13 + 2 x IEC 60320 C19
- Input: IEC 60320 C20, 16A maximum, 100-240 VAC, 50-60 Hz
- Input power: 3680 VA maximum
- Bank 1-1: outlets 1-8 (7 x C13 + 1 x C19)
- Bank 1-2: outlets 9-16 (7 x C13 + 1 x C19)
- Metering: bank-level current, voltage, VA, PF and kWh
- Metering accuracy (100-250 VAC): +/-1%
- Outlet switching: per outlet
- Breaker: 1 x 16A non-fuse breaker
- Maximum output current: 16A per bank and 16A total
- Environment sensor ports: 2
- Form factor: 0U rack mount
- Input cable length: 3 m
- Colour: Black

FAQs

Q: What outlets does the PE6216G-AX-G provide?
A: It provides 16 outlets in total, 14 x IEC 60320 C13 and 2 x IEC 60320 C19, split across two banks of 8 outlets each.

Q: What input connection and voltage does it use?
A: It uses a single IEC 60320 C20 inlet rated for up to 16A on 100-240 VAC, 50-60 Hz.

Q: Can I switch individual outlets remotely?
A: Yes. Each outlet can be switched on or off remotely over TCP/IP using the browser interface, and outlets can be named and assigned to specific users.

Q: What level of power metering does it offer?
A: It offers bank-level metering of current, voltage, VA, power factor and kWh, viewable in real time in the browser interface.

Q: Does it support environmental monitoring?
A: Yes. It has two environment sensor ports that support external temperature, humidity and differential pressure sensors.

Q: Does management stay available if the circuit breaker trips?
A: Yes. The unit and its outlets are powered separately, so the management interface remains reachable if the circuit breaker trips.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
