ATEN PE6208AV-ATB-G | PE6208AV Metered & Switched Rack PDU, 8x C13, 16A, 1U

Name: ATEN PE6208AV-ATB-G | PE6208AV Metered & Switched Rack PDU, 8x C13, 16A, 1U
Brand: ATEN
SKU: PE6208AV-ATB-G
Price: 1411.74 AUD
Availability: InStock

Authorised ATEN Partner

SKU:PE6208AV-ATB-G

In stock:1

$1,411.74 inc. GST

$1,283.40 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

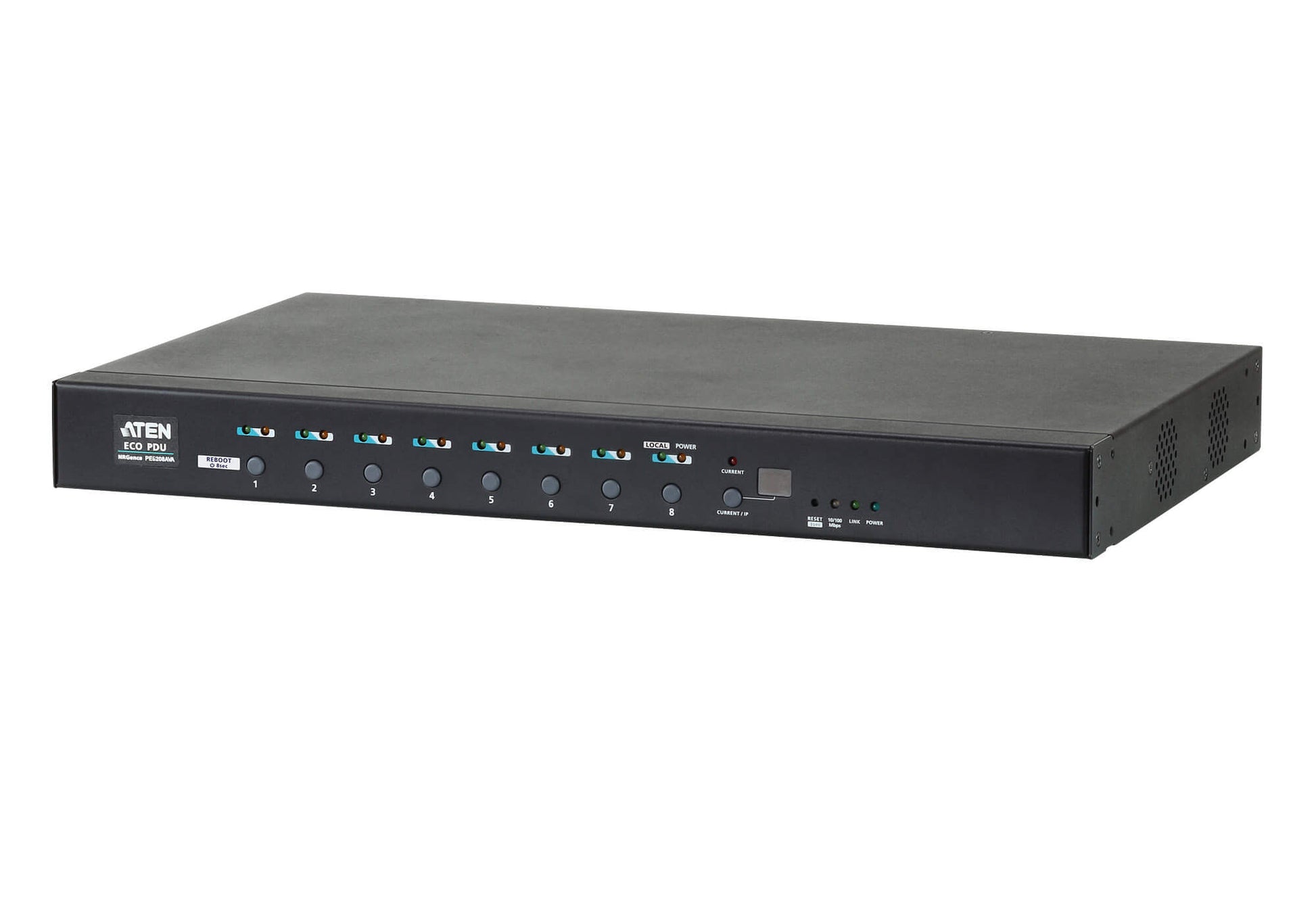

The ATEN PE6208AV is a 1U metered and switched rack PDU built for Pro-A/V and IT racks, with 8 IEC C13 outlets fed from a single IEC C20 input rated 100-240V and 16A. Bank-level metering with 1% accuracy and per-outlet remote switching over IP let administrators monitor load and power cycle connected equipment without a site visit.

A detachable front panel lets the PDU fit 19-inch racks of different depths, and a 10/100 Mbps Ethernet port plus an RS-232 (DB-9) port provide flexible management. Features such as Proactive Overload Protection, configurable power-on sequencing and support for external temperature and humidity sensors make it well suited to managed AV and equipment rack deployments.

Features

- Detachable front panel fits 19-inch racks with different depths
- Remote and local outlet control (On/Off, Power Cycle) by individual outlets and outlet groups
- Proactive Overload Protection (POP) powers off the last outlet that caused an overload
- 1% metering accuracy with bank-level power metering
- RS-232 port support and outlet group on/off control
- Supports external temperature or temperature/humidity sensors
- Wake on LAN, System After AC Back and Kill the Power control methods
- Power-on sequencing with a configurable delay per outlet
- Integrates with ATEN Control System and Control4 libraries

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x IEC 60320 C13 outlets
- Input: IEC 60320 C20, 100-240 VAC, 16A maximum
- Maximum output current: 10A per C13 outlet, 16A per bank and in total
- Metered (bank level, 1% accuracy) and switched (per outlet and outlet group)
- 1U rack mount with detachable front panel for different rack depths
- 10/100 Mbps RJ-45 Ethernet and RS-232 (DB-9) port
- Network protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Ping, SNMP V1/V2/V3, Telnet
- Security: 2-level account/password, IP/MAC filter, 128-bit SSL, RADIUS
- Operating temperature: 0-50 C, storage temperature: -20 to 60 C

FAQs

Q: What type of input and outlets does the PE6208AV-ATB-G use?
A: It has a single IEC 60320 C20 input rated 100-240 VAC at 16A maximum, and 8 x IEC 60320 C13 outlets, each rated up to 10A.

Q: Can individual outlets be switched on and off remotely?
A: Yes. Outlets can be controlled remotely or locally (On/Off and Power Cycle) individually or by outlet group, using the 10/100 Mbps Ethernet connection.

Q: Does it measure power consumption?
A: Yes. It provides bank-level power metering with 1% accuracy, so load can be monitored from the management interface.

Q: Will it fit racks of different depths?
A: The detachable front panel allows the 1U unit to be mounted in 19-inch racks with different depths.

Q: Which management interfaces and protocols are supported?
A: It offers a 10/100 Mbps RJ-45 port and an RS-232 (DB-9) port, with support for HTTP, HTTPS, SSL, SNMP V1/V2/V3, Telnet, NTP, SMTP and more.

Q: What happens if an outlet group is overloaded?
A: Proactive Overload Protection (POP) powers off the last outlet that caused the overload, helping protect the remaining connected equipment.
