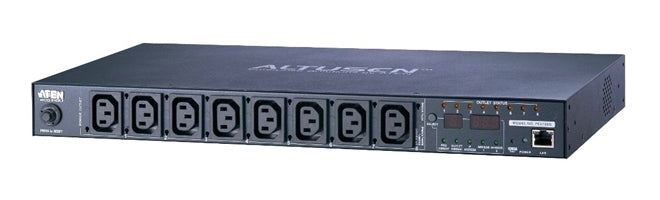

ATEN PE6108G-ATB-G | eco PDU 8-Outlet Smart PDU, 10A, C13, Bank Metering

Name: ATEN PE6108G-ATB-G | eco PDU 8-Outlet Smart PDU, 10A, C13, Bank Metering
Brand: ATEN
SKU: PE6108G-ATB-G
Price: 1075.25 AUD
Availability: InStock

Authorised ATEN Partner

SKU:PE6108G-ATB-G

In stock:44

$1,075.25 inc. GST

$977.50 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The ATEN PE6108G-ATB-G is a 1U rack-mount 8-outlet smart PDU rated 10A, with 8 x IEC C13 outlets, a C14 input and 100-240 VAC operation. It delivers bank-level metering of current, voltage, VA, power factor and kWh, plus remote switching of individual outlets (on, off, power cycle) over the network, making it well suited to remote server rooms and network cabinets. The -ATB firmware adds enhanced security and management protocols.

Proactive Overload Protection powers off outlets automatically on current overload, and a browser-based interface provides event logging, syslog and SMTP alerts, and environment sensor monitoring through two sensor ports. The -ATB firmware adds SMTPS, IPv6, Modbus over TCP/IP, TLS 1.2, SSH, IEEE 802.1X and LDAP / TACACS+ authentication for secure deployment in managed environments.

Features

- Remote power on, off and cycle control of individual outlets
- Remote real-time power measurement and monitoring at bank level
- Proactive Overload Protection (POP) powers off outlets automatically on current overload
- Browser-based UI with multi-browser and multilanguage support
- Event logging and syslog support, with SMTP and Syslog threshold alerts
- Environment sensor monitoring support
- ATB firmware adds SMTPS, IPv6, Modbus over TCP/IP, Auto Ping, TLS 1.2 and SSH
- ATB firmware adds IEEE 802.1X and LDAP / TACACS+ authentication
- ATB firmware adds heartbeat, schedule control, mail control and rule settings in the UI
- Secure 128-bit SSL encryption, two-level password security and configurable per-outlet user permissions
- Upgradeable firmware and RTC support keep timers running during power loss

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 8 x IEC 60320 C13 outlets
- IEC 60320 C14 input connection, 3 m power cord
- Input: 100-240 VAC, 50-60 Hz, 10A max
- Input power: 2300 VA (max)
- Maximum output current: 10A per outlet, bank and total
- 1 x 10A non-fuse breaker
- Bank-level metering of current, voltage, VA, PF and kWh
- Metering accuracy: voltage +/-1%, power +/-2%
- Per-outlet switching (on, off, power cycle)
- 2 environment sensor ports
- 1U rack-mount, 43.24 x 22.04 x 4.40 cm, 2.77 kg
- Operating temperature 0-50°C, humidity 0-80% RH non-condensing
- CE EMC and CE-LVD safety verification

FAQs

Q: What outlets and input does the PE6108G-ATB-G use?
A: It provides 8 x IEC 60320 C13 outlets and a C14 input, supporting 100-240 VAC at 50-60 Hz with a 10A maximum.

Q: Can individual outlets be switched remotely?
A: Yes. Each outlet can be switched on, off or power cycled over the network from the browser-based interface.

Q: Does it meter power at each outlet?
A: It provides bank-level metering of current, voltage, VA, power factor and kWh. Per-outlet switching is supported, but metering is at bank level.

Q: What does the -ATB firmware add?
A: The -ATB firmware adds SMTPS, IPv6, Modbus over TCP/IP, Auto Ping, TLS 1.2, SSH, IEEE 802.1X and LDAP / TACACS+ authentication, plus heartbeat, schedule control, mail control and rule settings.

Q: Can it monitor temperature or humidity?
A: It has 2 environment sensor ports for connecting compatible ATEN environment sensors, with monitoring through the management interface.

Q: What happens if the load exceeds the rating?
A: Proactive Overload Protection automatically powers off outlets on current overload to help protect connected equipment, and the unit also has a 10A non-fuse breaker.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
