ATEN PE5208G-ATB-G | eco PDU PE5208 1U Metered PDU, 16A, 7x C13 + 1x C19, -ATB

Name: ATEN PE5208G-ATB-G | eco PDU PE5208 1U Metered PDU, 16A, 7x C13 + 1x C19, -ATB
Brand: ATEN
SKU: PE5208G-ATB-G
Price: 932.0 AUD
Availability: BackOrder

Authorised ATEN Partner

SKU:PE5208G-ATB-G

Stock Status: Enquire

$932.00 inc. GST

$847.27 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

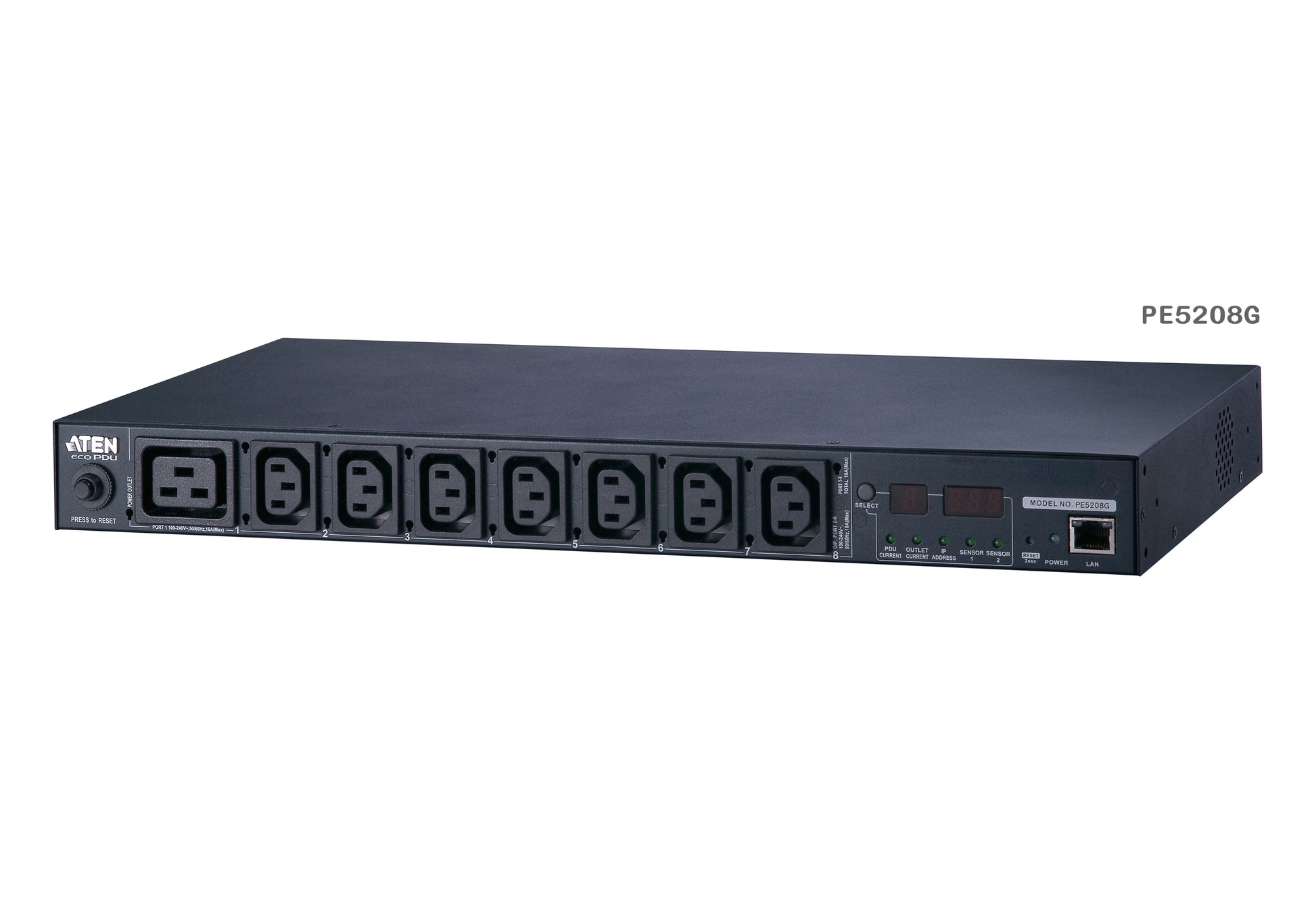

The ATEN PE5208G-ATB-G is a 1U rack-mount metered eco PDU with 8 outlets (7 x IEC C13 and 1 x IEC C19) and a 16A IEC C20 input. Bank-level metering reports current, voltage, VA, power factor and kWh, so rack power consumption can be monitored and capacity planned. The -ATB firmware adds extra security and management features for managed IT environments.

Two environment sensor ports support optional temperature and humidity sensors for rack monitoring, with threshold settings for alerts. Management is over 10/100 Mbit Ethernet, with support for HTTP, HTTPS, SNMP v1/v2/v3, SMTP, NTP and more. Outlets are always on (no outlet switching), and the PDU is compatible with ATEN eco DC software and standard browsers.

Features

- Bank-level power metering and monitoring
- Supports external temperature and humidity sensors for rack environment monitoring
- Threshold settings for current, voltage, power, temperature and humidity
- Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Telnet and SNMP v1/v2/v3
- 2-level account/password security, IP/MAC filter, 128-bit SSL and RADIUS
- ATB firmware adds SMTPS, IPv6, Modbus over TCP/IP, Auto Ping, TLS1.2, SSH, IEEE 802.1X, LDAP and TACACS+
- Works with ATEN eco DC software and standard browsers
- Always-on outlets with no outlet switching

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 outlets: 7 x IEC 60320 C13 + 1 x IEC 60320 C19
- Input: IEC 60320 C20, 16A max, 100-240 VAC, 50-60 Hz
- Maximum input power: 3680 VA
- Maximum output current: C13 10A per outlet, C19 16A per outlet, 16A per bank and in total
- Breaker: 1 x 16A non-fuse breaker
- Metering: bank-level current, voltage, VA, power factor and kWh
- Metering accuracy: voltage 100-250 VAC +/-1%, power 100 W to max capacity +/-2%
- Environment sensor ports: 2
- Outlet switching: none
- Network interface: 10/100 Mbit Ethernet
- Form factor: 1U rack mount
- Dimensions (L x W x H): 43.24 x 22.04 x 4.40 cm
- Weight: 2.71 kg
- Power cord length: 3 m
- Operating temperature: 0 - 50°C, humidity 0 - 80% RH non-condensing
- Compliance: CE (EMC), CE-LVD (safety)
- Package contents: PDU, mounting kit, power cord, user instructions

FAQs

Q: What outlets does the PE5208G-ATB-G provide?
A: It has 8 outlets in total: 7 x IEC 60320 C13 and 1 x IEC 60320 C19. C13 outlets are rated to 10A and the C19 outlet to 16A.

Q: What input connection and power rating does it use?
A: It uses an IEC 60320 C20 inlet with a 16A maximum input at 100-240 VAC, 50-60 Hz, for up to 3680 VA.

Q: Can it switch outlets on and off remotely?
A: No. This is a metered PDU with no outlet switching, so outlets are always on. It monitors power at bank level rather than controlling individual outlets.

Q: What does the -ATB firmware add?
A: The -ATB firmware adds SMTPS, IPv6, Modbus over TCP/IP, Auto Ping, TLS1.2, SSH, IEEE 802.1X, LDAP and TACACS+ authentication.

Q: Can I monitor rack temperature and humidity with it?
A: Yes. It has 2 environment sensor ports for optional temperature and humidity sensors, with threshold settings for alerts.

Q: How is the PDU managed?
A: It connects over 10/100 Mbit Ethernet and is managed via a web browser, SNMP v1/v2/v3 or ATEN eco DC software.
