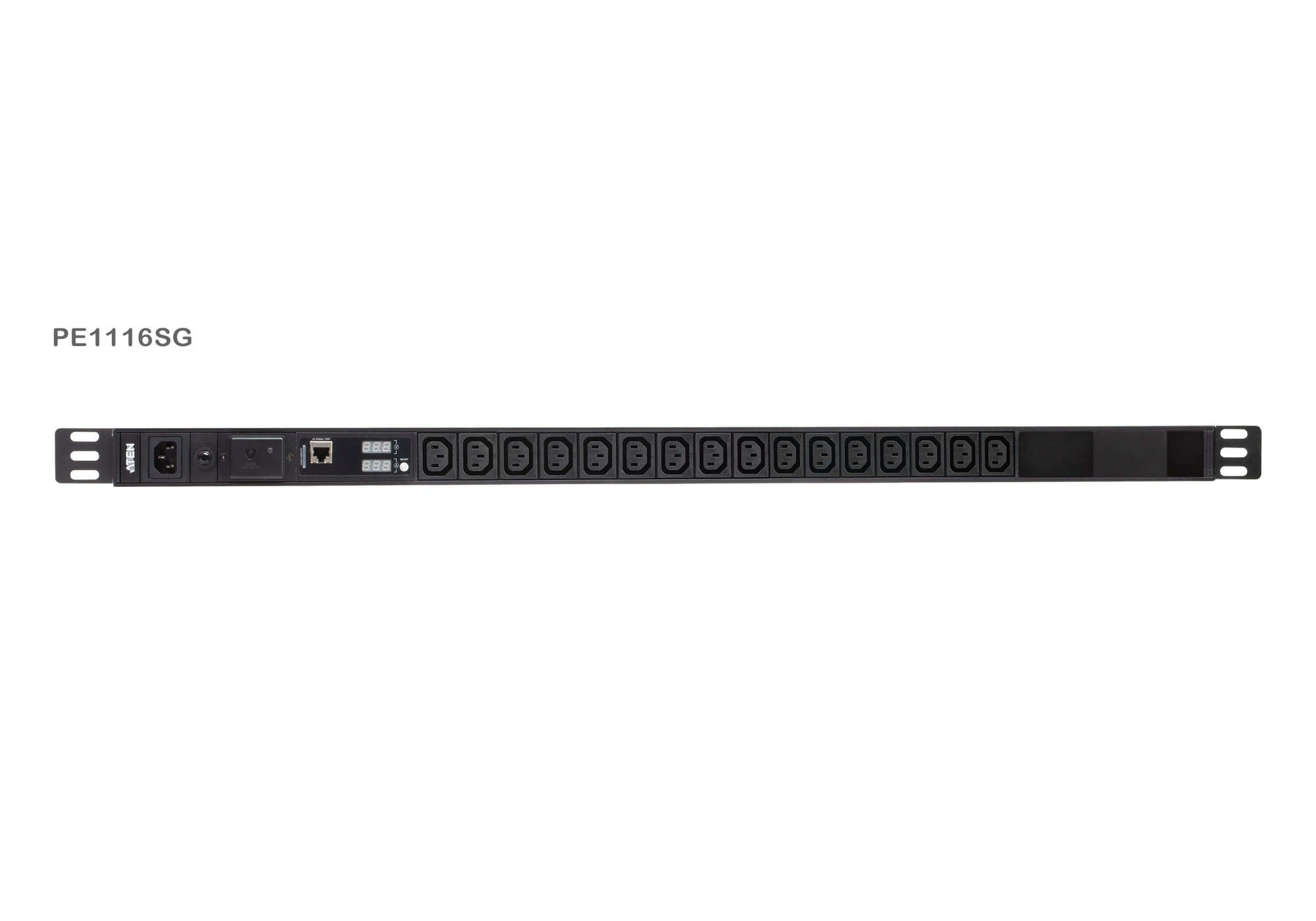

ATEN PE1116SG-AT-G | Basic Metered 0U Rack PDU, 16x IEC C13, 10A, Surge

ATEN PE1116SG-AT-G | Basic Metered 0U Rack PDU, 16x IEC C13, 10A, Surge

Authorised ATEN Partner

PE1116SG-AT-G

Stock Status: Enquire

$379.50 inc. GST
$345.00 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The ATEN PE1116SG is a metered 0U vertical rack PDU with 16 x IEC C13 outlets and a 100-240 VAC, 10A input via an IEC C14 inlet. Dual 3-digit 7-segment displays show current and voltage at a glance, and built-in surge protection helps safeguard connected servers, switches and storage equipment.

The 0U vertical design mounts alongside the rack to save usable rack space, and an Overcurrent Protection Device (OPD) is included. When paired with the optional EC1000 Energy Box, the PDU supports real-time current monitoring. This is the IEC outlet model of the ATEN Basic Metered PDU range.

Features

- Space-saving 0U vertical rack mount design
- 16 IEC C13 outlets for servers, switches and other rack equipment
- Built-in surge protection
- Dual 3-digit 7-segment displays show current and voltage
- Overcurrent Protection Device (OPD) included
- Real-time PDU current monitoring when used with the optional EC1000 Energy Box

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x IEC 320 C13 outlets
- 0U vertical rack mount
- Nominal input voltage: 100-240 VAC
- Maximum input current: 10A (UL de-rated 12A, PSE 10A)
- Input frequency: 50-60 Hz
- Input connection: IEC 320 C14
- Maximum input power: 2400VA
- Maximum output current per outlet, bank and total: 10A (UL de-rated 12A, PSE 10A)
- Overcurrent Protection Device (OPD)
- Surge protection
- Dual 3-digit 7-segment displays for current and voltage
- Dimensions (L x W x H): 96.71 x 4.44 x 6.00 cm
- Weight: 1.30 kg
- Power cord length: 10 ft (3 x 1.0 mm2)

FAQs

Q: What outlet type does the PE1116SG provide?
A: It provides 16 x IEC 320 C13 outlets and connects to the supply through an IEC 320 C14 input.

Q: What input voltage and current does it support?
A: It supports a 100-240 VAC, 50-60 Hz input at up to 10A (UL de-rated 12A, PSE 10A), for a maximum input power of 2400VA.

Q: Does it include surge protection?
A: Yes. The PDU has built-in surge protection and an Overcurrent Protection Device (OPD).

Q: How do I monitor the load on this PDU?
A: Two 3-digit 7-segment displays show current and voltage locally. With the optional EC1000 Energy Box, the PDU can also provide real-time current monitoring.

Q: Is this PDU mounted vertically or horizontally?
A: It is a 0U vertical rack PDU, designed to mount alongside the rack so it does not use up rack units.

Q: Is there a NEMA outlet version of this PDU?
A: The PE1116SG is the IEC outlet model. The wider ATEN Basic Metered PDU series also includes NEMA outlet models.
