Description

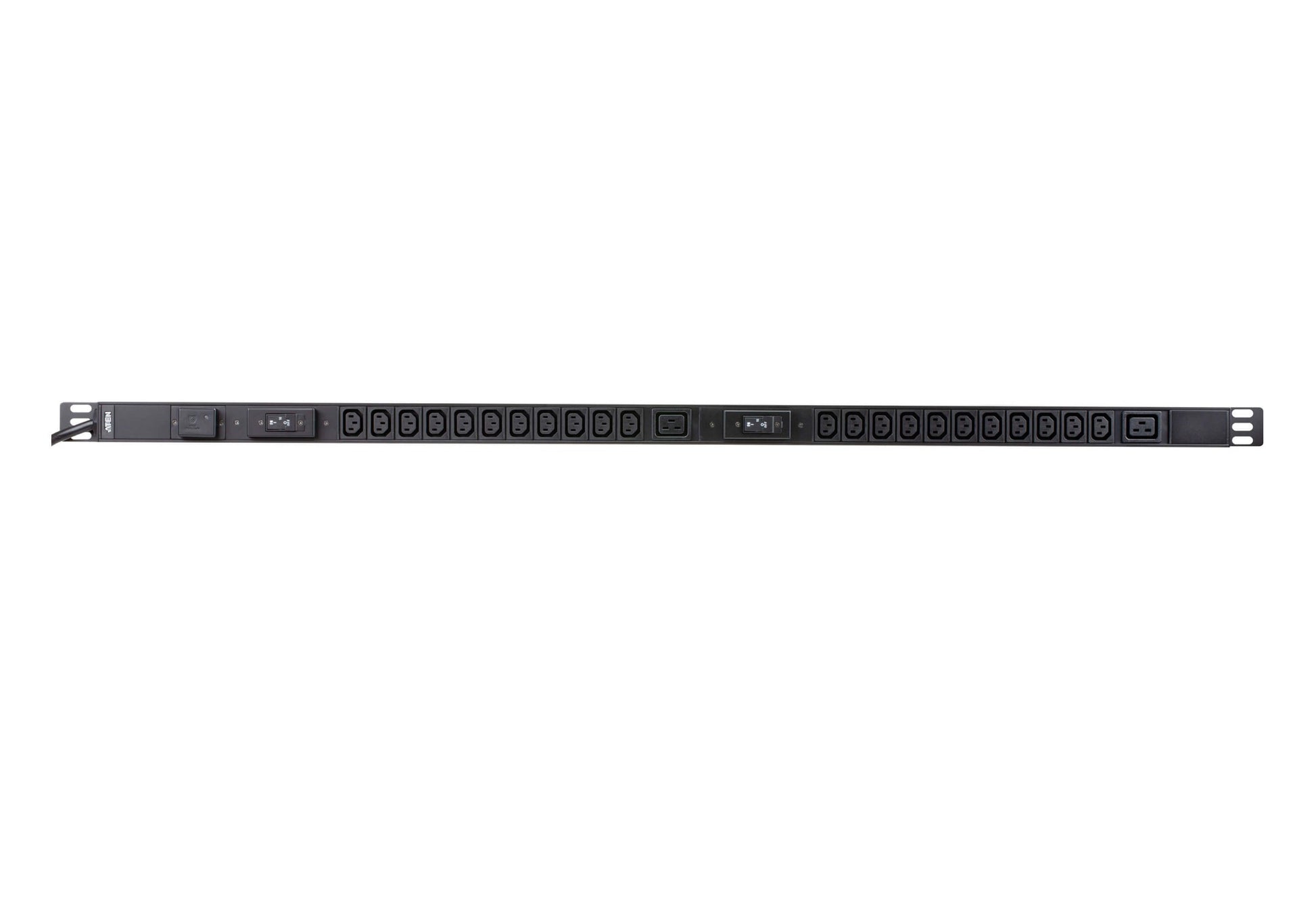

The ATEN PE0324SG is a 0U vertical basic rack PDU with 24 outlets (22 x IEC C13 and 2 x IEC C19) and built-in surge protection for connected IT equipment. It accepts 100-240 VAC through a 32A IEC 60309 input with a Type G plug and delivers up to 7680VA, making it a space-saving power distribution option for data centres, server rooms and network wiring closets.

The compact aluminium housing mounts vertically at the side of the rack using the included L-shaped mounting kit, keeping rack units free for servers and network gear. An overcurrent protection device (OPD) adds an extra layer of protection, and the mix of C13 and C19 outlets covers both standard IT equipment and higher-draw devices.

Features

- Space-saving 0U vertical rack mount design
- 24 outlets combining 22 x C13 and 2 x C19 for varied IT loads
- Built-in surge protection module protects connected IT devices
- Overcurrent protection device (OPD) for added safety
- Durable aluminium housing
- Suited to data centres, server rooms and telecom equipment
- Includes L-shaped mounting kit and user instructions

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 24 outlets: 22 x IEC 320 C13 + 2 x IEC 320 C19
- Nominal input voltage: 100-240 VAC
- Maximum input current: 32A
- Input frequency: 50-60 Hz
- Input connection: IEC 60309 32A
- Input power: 7680VA (max)
- Maximum output current per outlet: C13 10A, C19 16A
- Maximum output current per bank: 16A
- Maximum output current total: 32A
- Built-in surge protection
- Overcurrent protection device (OPD)
- 0U rack mount design with aluminium housing
- Dimensions (L x W x H): 132.71 x 4.44 x 6.00 cm
- Weight: 2.40 kg
- Power cord length: 10 ft (3 x 4 mm2)
- Operating temperature: 0-40 C, storage temperature: -20-60 C
- Operating and storage elevation: 3000 m
- EMC verification: CE Class A
- Safety verification: CE, LVD, UL

FAQs

Q: What outlets does the PE0324SG provide?
A: It provides 24 outlets in total: 22 x IEC 320 C13 and 2 x IEC 320 C19.

Q: What input does this PDU require?
A: It uses a 100-240 VAC input at up to 32A through an IEC 60309 32A plug, with a maximum input power of 7680VA.

Q: Does the PE0324SG include surge protection?
A: Yes. It has a built-in surge protection module to help protect connected IT equipment.

Q: Is this a monitored or switched PDU?
A: No. It is a basic PDU, so it distributes power without remote monitoring or outlet switching.

Q: How is the PE0324SG mounted?
A: It is a 0U design that mounts vertically in the rack using the included L-shaped mounting kit, so it does not use any rack units.

Q: What is the maximum current per outlet?
A: C13 outlets support up to 10A each and C19 outlets support up to 16A each, with a 16A limit per bank and 32A total.
