ATEN PE0316SG-AT | PE Series 0U Basic PDU, 16x IEC C13, 32A, Surge Protection

Name: ATEN PE0316SG-AT | PE Series 0U Basic PDU, 16x IEC C13, 32A, Surge Protection
Brand: ATEN
SKU: PE0316SG-AT
Price: 473.11 AUD
Availability: BackOrder

Authorised ATEN Partner

SKU:PE0316SG-AT

Stock Status: Enquire

$473.11 inc. GST

$430.10 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

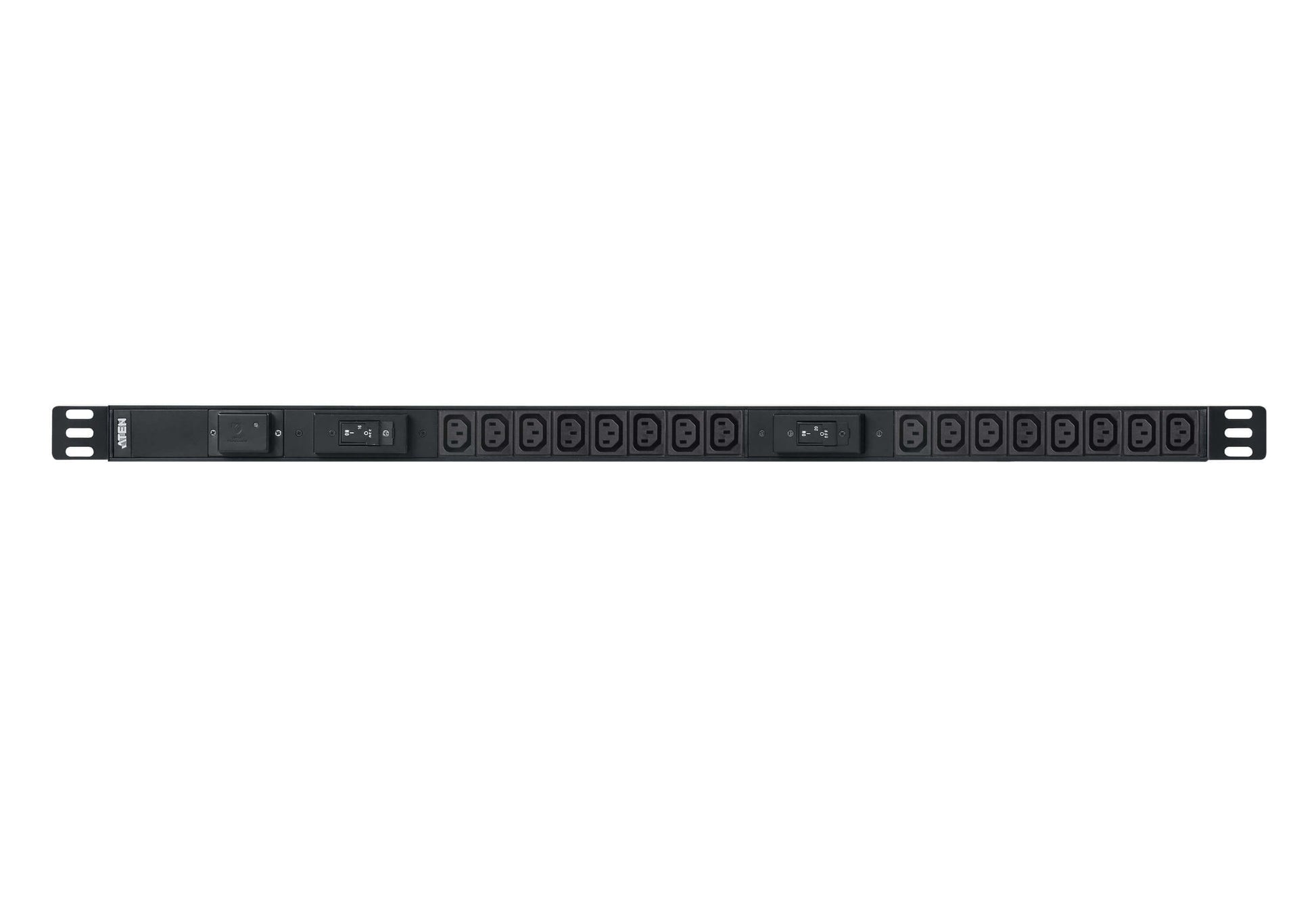

The ATEN PE0316SG-AT is a 0U vertical basic rack PDU with 16 x IEC C13 outlets and a built-in surge protection module, designed for data centres, server rooms and network wiring closets. It accepts 100-240V input at up to 32A via an IEC 60309 32A connection, giving high-density, space-saving power distribution for racks full of servers, switches and storage.

Built in a durable aluminium housing and fitted with an overcurrent protection device (OPD), the PDU supports up to 10A per outlet, 16A per bank and 32A in total. It ships with an L-shaped mounting kit and a 10ft power cord, so it can be fitted vertically at the rear of the rack without using any rack unit space.

Features

- Space-saving 0U vertical mounting keeps rack units free for equipment
- 16 IEC C13 outlets for high-density server and network equipment power
- Built-in surge protection module helps safeguard connected devices
- Overcurrent protection device (OPD) for added electrical safety
- Durable aluminium housing
- High-capacity 32A IEC 60309 input with up to 7680VA input power
- Suited to data centres, server rooms, wiring closets and telecom equipment

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 16 x IEC 320 C13 outlets
- 0U rack mount design
- Surge protection module
- Nominal input voltage: 100-240 VAC, 50-60 Hz
- Maximum input current: 32A
- Input connection: IEC 60309 32A
- Maximum input power: 7680VA
- Maximum output current: 10A per outlet, 16A per bank, 32A total
- Overcurrent protection device (OPD)
- Power cord length: 10ft (3 x 4mm2)
- Dimensions (L x W x H): 96.71 x 4.44 x 6.00 cm
- Weight: 2.10 kg
- Operating temperature: 0 to 40 C, storage: -20 to 60 C
- Safety and EMC: CE Class A, CE, LVD, UL
- Package contents: PDU, L-shaped mounting kit, user instructions

FAQs

Q: What type of outlets does the PE0316SG-AT have?
A: It provides 16 x IEC 320 C13 outlets, rated up to 10A per outlet, 16A per bank and 32A in total.

Q: What input connection does this PDU use?
A: It uses an IEC 60309 32A input connection and accepts 100-240 VAC at 50-60 Hz, with a maximum input current of 32A.

Q: Does this PDU include surge protection?
A: Yes. This model has a built-in surge protection module, which is what the SG suffix in the part number indicates.

Q: Does it take up rack space?
A: No. It is a 0U design that mounts vertically at the rear of the rack using the supplied L-shaped mounting kit.

Q: Can I remotely monitor or switch the outlets?
A: No. This is a basic PDU with no metering or outlet switching. Metered and switched models are available in other ATEN PDU ranges.

Q: What is included in the box?
A: The PDU with its 10ft power cord, an L-shaped mounting kit and user instructions.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
