ATEN PE0216SG-AT-G | PE Series 0U Basic PDU, 16x IEC C13, 16A, Surge Protected

Name: ATEN PE0216SG-AT-G | PE Series 0U Basic PDU, 16x IEC C13, 16A, Surge Protected
Brand: ATEN
SKU: PE0216SG-AT-G
Price: 232.76 AUD
Availability: InStock

Authorised ATEN Partner

SKU:PE0216SG-AT-G

In stock:1

$232.76 inc. GST

$211.60 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

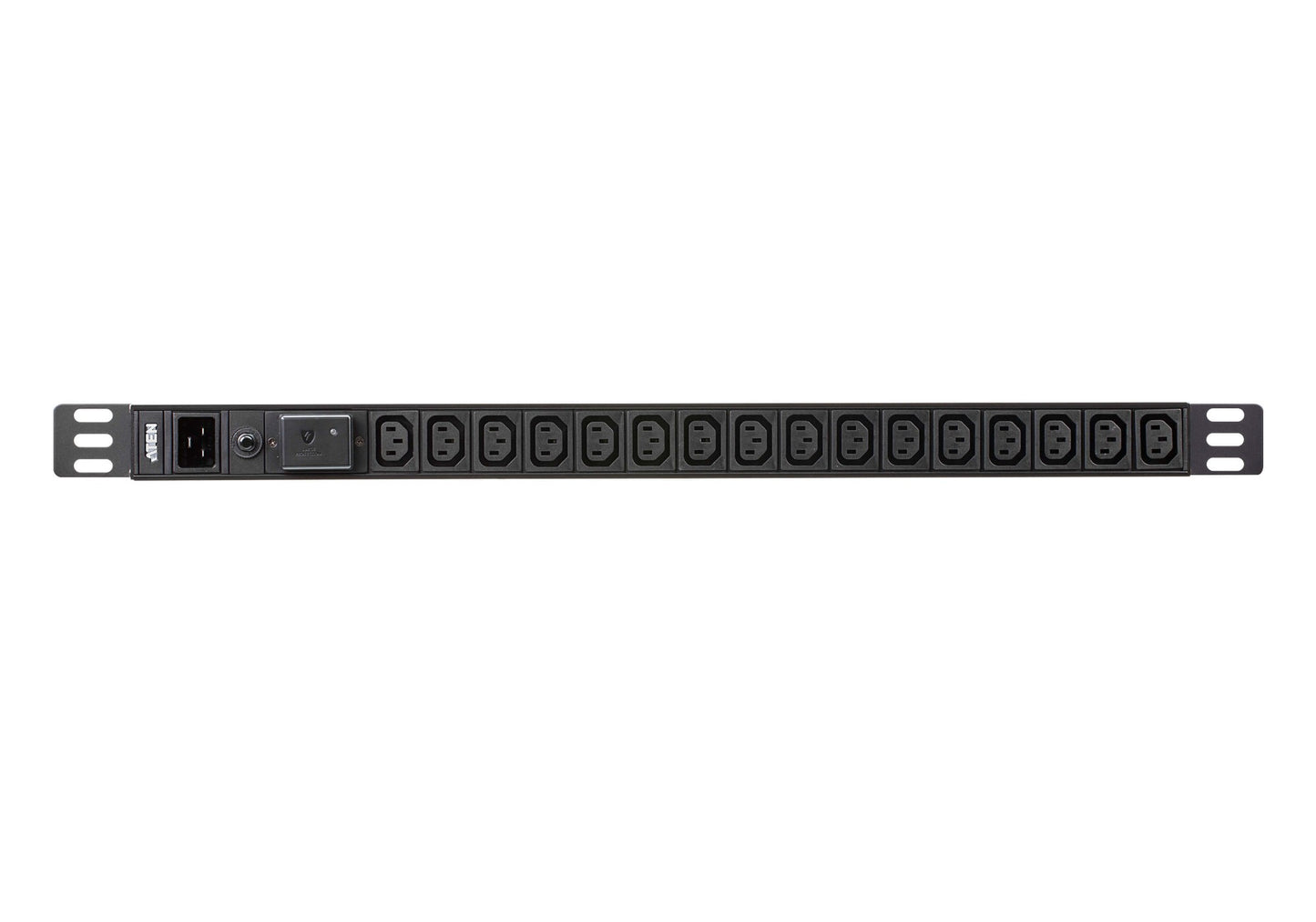

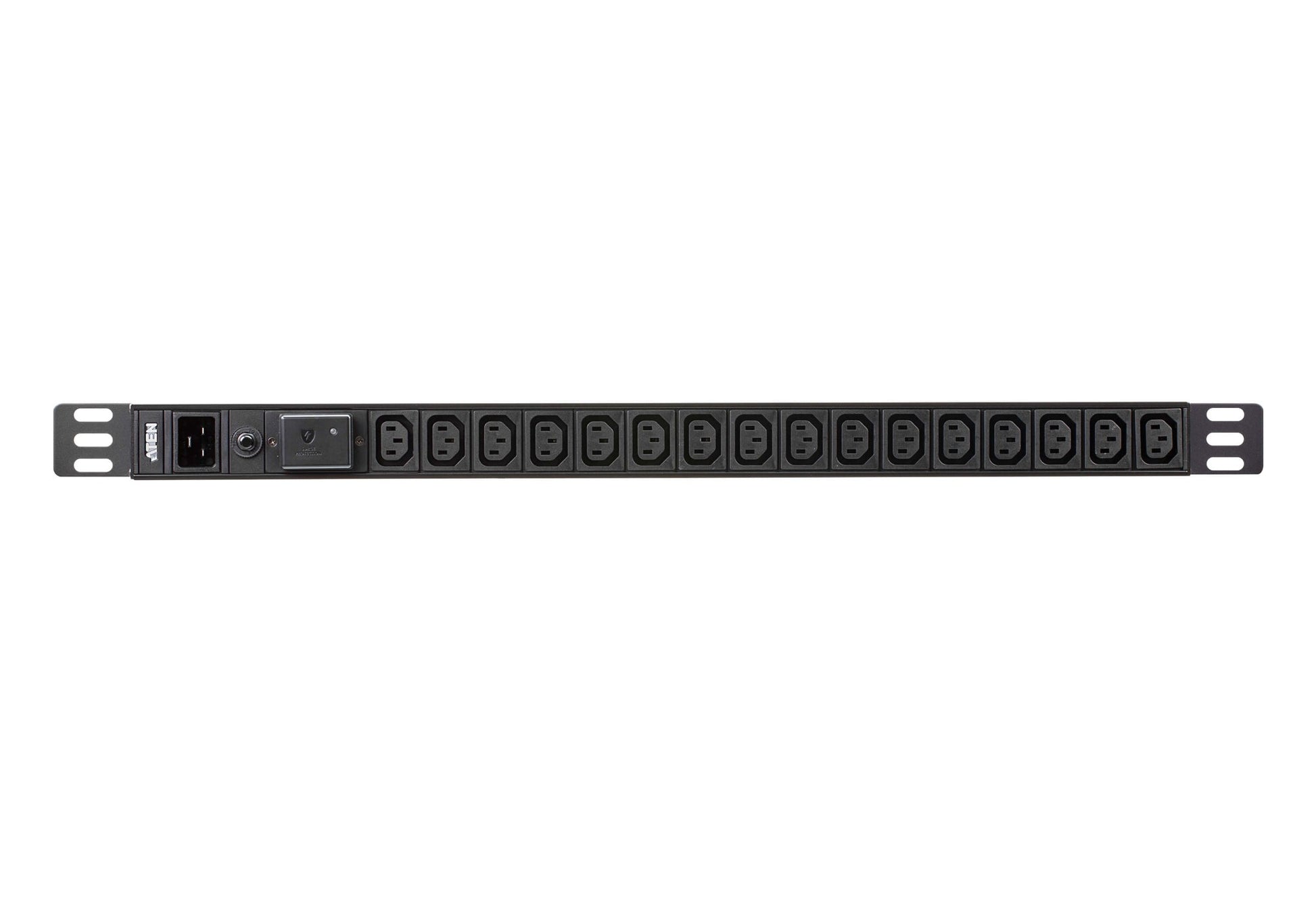

The ATEN PE0216SG is a 0U vertical rack PDU with 16 IEC C13 outlets, a 16A maximum input and a built-in surge protection module. The IEC C20 input accepts 100-240 VAC at 50-60 Hz, and an overcurrent protection device (OPD) adds a further layer of safety for connected IT equipment.

Built in an aluminium housing with a space-saving 0U rack mount design, it suits data centres, server rooms and telecom equipment. Each outlet delivers up to 10A, with a total output of 16A. The package includes the PDU, a 10ft power cord, an L-shaped mounting kit and user instructions.

Features

- Space-saving 0U rack mount design keeps rack units free for equipment
- Built-in surge protection module guards connected IT devices from sudden surges
- Overcurrent protection device adds electrical safety
- Compact and robust aluminium housing
- 16 IEC C13 outlets for high-density server and network equipment
- Includes L-shaped mounting kit and power cord

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 16 x IEC 320 C13 outlets
- Input: 100-240 VAC, 16A max, 50-60 Hz
- Input connection: IEC-320 C20
- Input power: 3840VA (max)
- Maximum output current: 10A per outlet, 16A per bank, 16A total
- Built-in surge protection
- Overcurrent Protection Device (OPD)
- 0U rack mount design, aluminium housing
- Power cord length: 10ft (3x1.5mm2)
- Dimensions (L x W x H): 71.56 x 4.44 x 6.00 cm
- Weight: 1.10 kg
- Operating temperature: 0-40 C, storage: -20-60 C
- Certifications: CE Class A (EMC), CE, LVD, UL (safety)

FAQs

Q: What type of outlets does the PE0216SG have?
A: It has 16 x IEC 320 C13 outlets, with a maximum of 10A per outlet and 16A total output.

Q: What input connection and voltage does this PDU use?
A: It uses an IEC-320 C20 input and accepts 100-240 VAC at 50-60 Hz, with a maximum input current of 16A.

Q: Does the PE0216SG include surge protection?
A: Yes. It has a built-in surge protection module and an overcurrent protection device (OPD).

Q: Is this PDU rack mountable?
A: Yes. It is a 0U vertical design and ships with an L-shaped mounting kit, so it does not consume rack units.

Q: What is included in the package?
A: The package contains the PDU, a 10ft power cord, an L-shaped mounting kit and user instructions.

Q: Is this a managed or switched PDU?
A: No. The PE Series is a basic PDU for power distribution with surge and overcurrent protection, without remote monitoring or switching.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
