ATEN PE0116SG-AT-G | PE0116SG 0U Basic PDU, 16x IEC C13, 10A, Surge Protection

Name: ATEN PE0116SG-AT-G | PE0116SG 0U Basic PDU, 16x IEC C13, 10A, Surge Protection
Brand: ATEN
SKU: PE0116SG-AT-G
Price: 191.02 AUD
Availability: BackOrder

Authorised ATEN Partner

SKU:PE0116SG-AT-G

Stock Status: Enquire

$191.02 inc. GST

$173.65 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

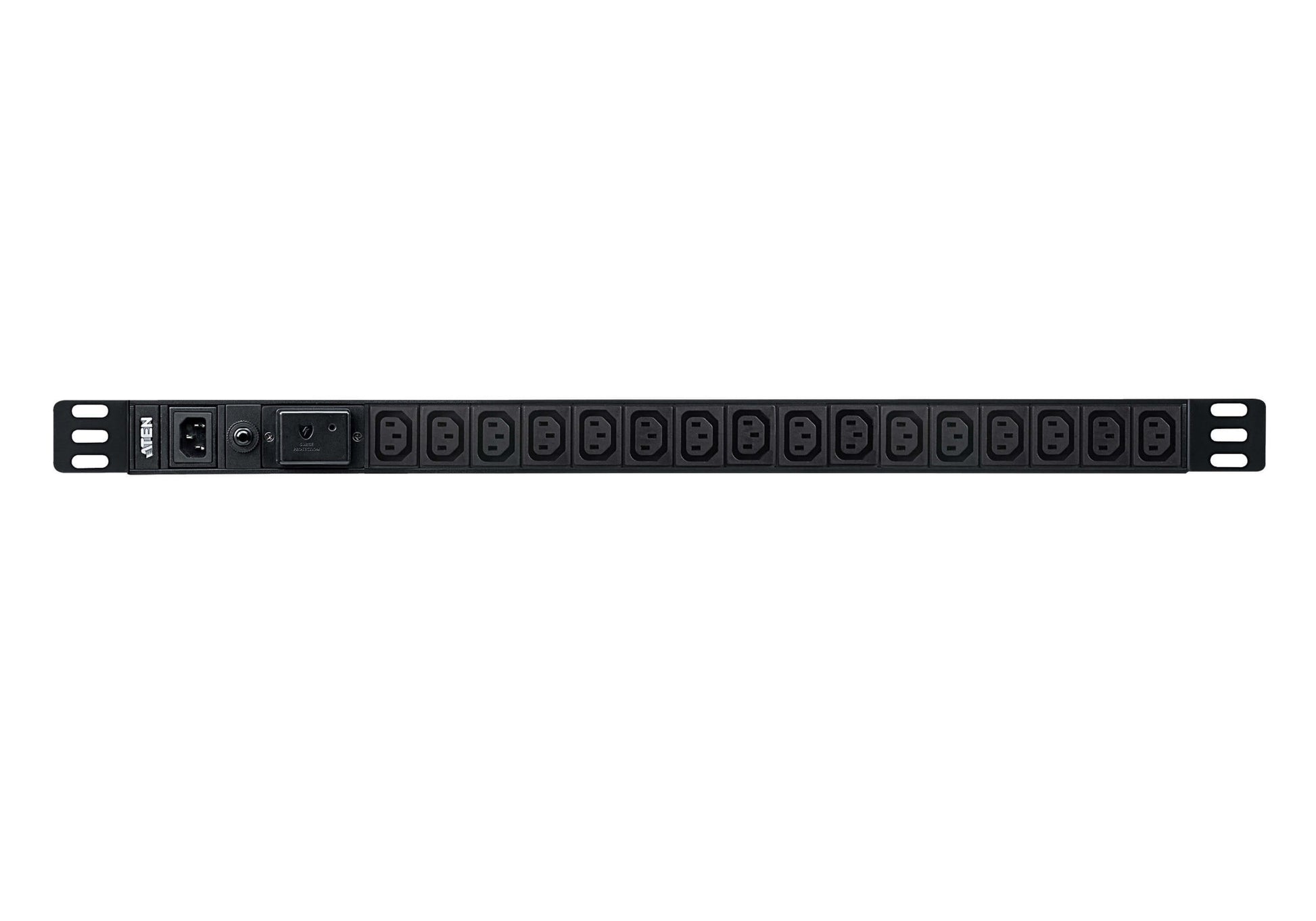

The ATEN PE0116SG is a 0U vertical-mount basic rack PDU with 16 IEC C13 outlets, 100-240VAC input and a 10A maximum rating. A built-in surge protection module and an overcurrent protection device help shield connected IT equipment from power surges and overloads, making it well suited to data centres, server rooms and telecom equipment racks.

The PE0116SG uses an IEC C14 inlet with a 10ft power cord, and its compact aluminium housing mounts vertically so it does not consume any rack units. An L-shaped mounting kit is included. A NEMA outlet version of this PDU is available separately as the PE0116SA.

Features

- Space saving 0U rack mount design keeps rack units free for equipment
- Built-in surge protection module protects connected IT equipment from power surges
- Overcurrent protection design reduces equipment downtime
- Aluminium housing is compact and robust
- Suited to data centres, server rooms and telecom equipment
- Also available with NEMA outlets as the PE0116SA

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 16 x IEC 60320 C13 outlets
- 0U rack mount design
- Nominal input voltage: 100-240 VAC, 50-60 Hz
- Maximum input current: 10A
- Maximum input power: 2400VA
- Input connection: IEC 60320 C14
- Maximum output current per outlet, bank and total: 10A
- Surge protection and overcurrent protection device (OPD)
- Aluminium housing
- Dimensions (L x W x H): 71.56 x 4.44 x 6.00 cm
- Weight: 1.10 kg
- Power cord length: 10ft (3 x 1.0mm2)
- EMC: FCC Class A, CE Class A
- Safety: CE, LVD
- Package contents: PDU, power cord, L-shaped mounting kit, user instructions

FAQs

Q: What outlet type does the PE0116SG use?
A: It provides 16 IEC 60320 C13 outlets. The input connection is an IEC 60320 C14 inlet fitted with a 10ft power cord.

Q: Does the PE0116SG include surge protection?
A: Yes. It has a built-in surge protection module as well as an overcurrent protection device (OPD) to help protect connected equipment.

Q: What is the maximum load this PDU can support?
A: The maximum input and output current is 10A across 100-240VAC, giving a maximum input power of 2400VA. This 10A limit applies to each outlet, bank and the total.

Q: Does it use any rack units?
A: No. The PE0116SG is a 0U vertical-mount PDU and is fitted using the included L-shaped mounting kit.

Q: Is this a metered or switched PDU?
A: No. The PE0116SG is a basic PDU for power distribution with surge and overcurrent protection. It does not provide metering or remote outlet switching.

Q: Is a NEMA outlet version available?
A: Yes. The equivalent NEMA outlet model is the ATEN PE0116SA. The PE0116SG covers the IEC C13 outlet configuration.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
