ATEN PE0110SG-AT-G | Basic 1U Rack PDU, 10x IEC C13, 10A, Surge Protection

Name: ATEN PE0110SG-AT-G | Basic 1U Rack PDU, 10x IEC C13, 10A, Surge Protection
Brand: ATEN
SKU: PE0110SG-AT-G
Price: 145.48 AUD
Availability: BackOrder

Authorised ATEN Partner

SKU:PE0110SG-AT-G

Stock Status: Enquire

$145.48 inc. GST

$132.25 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The ATEN PE0110SG is a 1U rack-mount basic PDU that distributes power from a single IEC C14 inlet to 10 IEC C13 outlets. Rated for 100-240 VAC at 10A maximum, it suits data centres, server rooms and telecom equipment where a simple, reliable power strip for the rack is needed. Built-in surge protection and an overcurrent protection device help safeguard connected equipment.

The PE0110SG passes power through unfiltered and has no metering or switching, which keeps it straightforward to deploy. The C14 inlet with 3 metre power cord and wide 100-240 VAC input range make it a practical choice for IEC-based equipment, while the NEMA 5-15 100-120 VAC model is a separate sibling SKU.

Features

- 1U rack-mount PDU distributing power from a single plug to 10 outlets
- Built-in surge protection to help prevent damage to connected equipment
- Overcurrent protection device (OPD)
- Unfiltered electrical pass-through for simple deployment
- Wide 100-240 VAC input range
- Suitable for data centres, server rooms and telecom equipment

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 10 x IEC-320 C13 outlets
- Nominal input voltage: 100-240 VAC, 50-60 Hz
- Maximum input current: 10A
- Input connection: IEC-320 C14 (G plug)
- Input power: 2400VA (max)
- Maximum output current: 10A per outlet, per bank and in total
- Overcurrent protection device (OPD)
- Surge protection
- 1U rack mount
- Dimensions (L x W x H): 48.20 x 4.44 x 4.50 cm
- Weight: 0.66 kg
- Power cord length: 10ft (3 x 1.5mm2)
- Operating temperature: 0-40 C (reduce load to 60% as temperature nears 40 C)
- Storage temperature: -20 to 60 C
- Operating and storage elevation: 3000 m

FAQs

Q: How many outlets does the ATEN PE0110SG have and what type are they?
A: It has 10 IEC-320 C13 outlets, powered from a single IEC-320 C14 inlet.

Q: What input voltage does it support?
A: It supports a nominal input of 100-240 VAC at 50-60 Hz, with a maximum input current of 10A.

Q: Does this PDU include surge protection?
A: Yes. It has built-in surge protection and an overcurrent protection device (OPD) to help protect connected equipment.

Q: Is this a metered or switched PDU?
A: No. It is a basic PDU that passes power through to the outlets without metering, monitoring or remote switching.

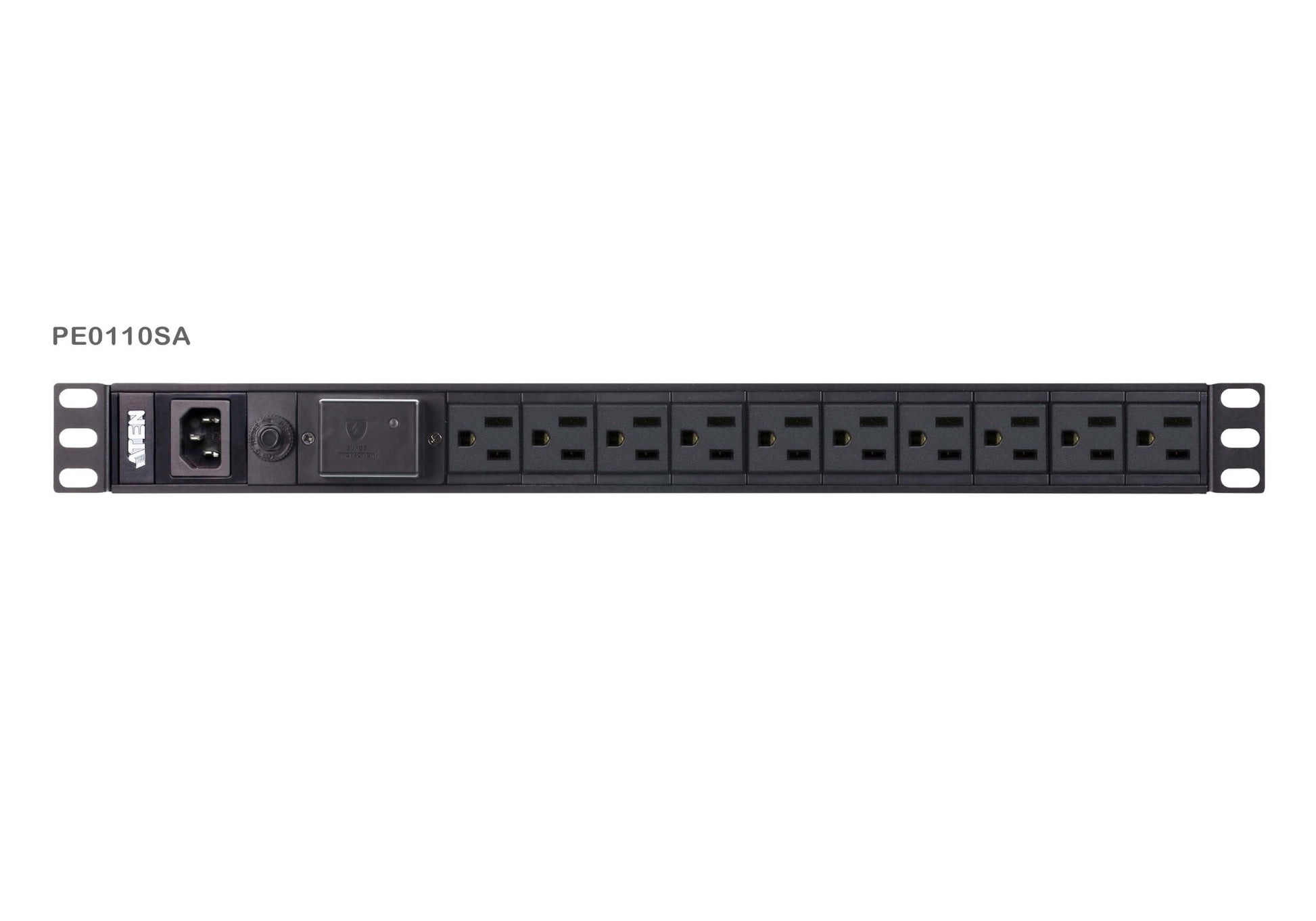

Q: What is the difference between the PE0110SG and PE0110SA?
A: The PE0110SG is the 100-240 VAC, 10A model with an IEC C14 inlet and 10 C13 outlets. The PE0110SA is the NEMA 5-15, 100-120 VAC sibling.

Q: How much rack space does it take up?
A: It is a 1U rack-mount unit measuring 48.20 x 4.44 x 4.50 cm and weighing 0.66 kg.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
