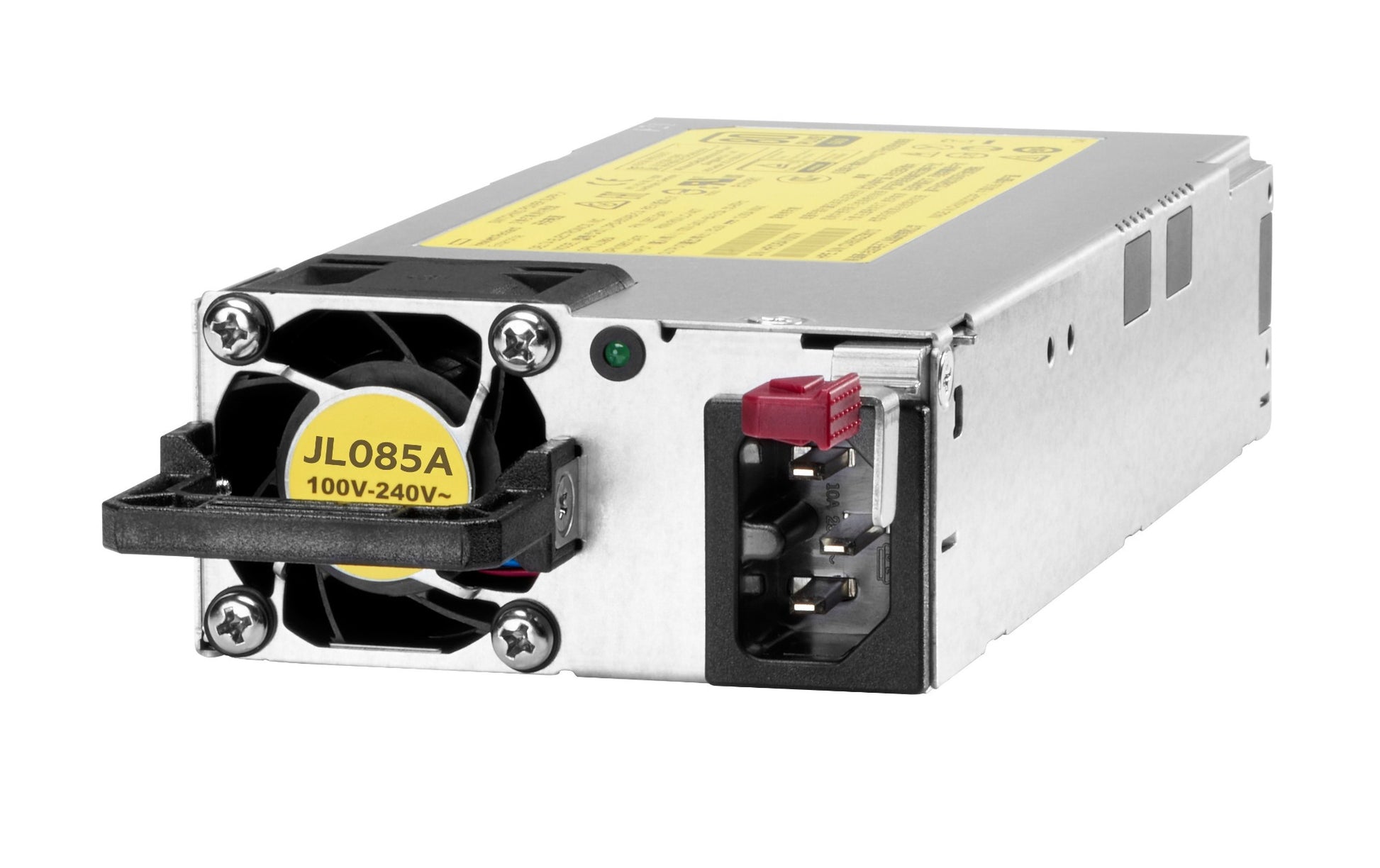

• Aruba JL085A X371 250W power supply with silver body black fan red connector
1 1

Aruba

Aruba JL085A | X371 12VDC 250W Power Supply, Non-PoE, Hot-Plug

Aruba JL085A | X371 12VDC 250W Power Supply, Non-PoE, Hot-Plug

Authorised Aruba Partner

JL085A

In stock:4

$554.13 inc. GST
$503.75 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The X371 12VDC 250W power supply is a redundant, hot-plug AC power supply for non-PoE Aruba switches. It accepts 100-240 V AC mains input at 50-60 Hz and delivers 12 V DC to the switch, providing 250 W of total power for non-PoE deployments.

It is designed for the Aruba 3810M, 2930M and 6300M switch families. Fitting a second unit alongside the primary supply adds power redundancy, and the hot-plug design lets a unit be replaced without taking the switch offline. The compact module measures 83.1 mm wide, 225.6 mm deep and 40.1 mm high.

Features

- Redundant, hot-plug power supply
- Wide-range AC input (100-240 V, 50-60 Hz)
- 12 V DC output for non-PoE switch models
- Compatible with Aruba 2930M, 3810M and 6300M series switches

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 250 W total power
- 12 V DC output
- AC input voltage: 100-240 V
- AC input frequency: 50-60 Hz
- Redundant, hot-plug design
- Non-PoE power supply
- Width: 83.1 mm
- Depth: 225.6 mm
- Height: 40.1 mm
- Weight: 690 g
- Compatible with Aruba 2930M, 3810M and 6300M switches

FAQs

Q: Which switches is the X371 12VDC 250W power supply compatible with?
A: It is intended for non-PoE Aruba 3810M, 2930M and 6300M series switches. Check the exact switch model before ordering.

Q: Does this power supply support PoE?
A: No. This is the non-PoE 250 W unit and supplies 12 V DC to the switch itself. PoE switch models use a different power supply.

Q: Is the power supply hot-pluggable?
A: Yes. It is a redundant, hot-plug design, so a unit can be replaced without powering down the switch when a second supply is installed.

Q: What AC input voltage does it accept?
A: It accepts 100-240 V AC at 50-60 Hz, so it suits mains supplies worldwide.

Q: What are the physical dimensions of the module?
A: It measures 83.1 mm wide, 225.6 mm deep and 40.1 mm high, and weighs 690 g.
