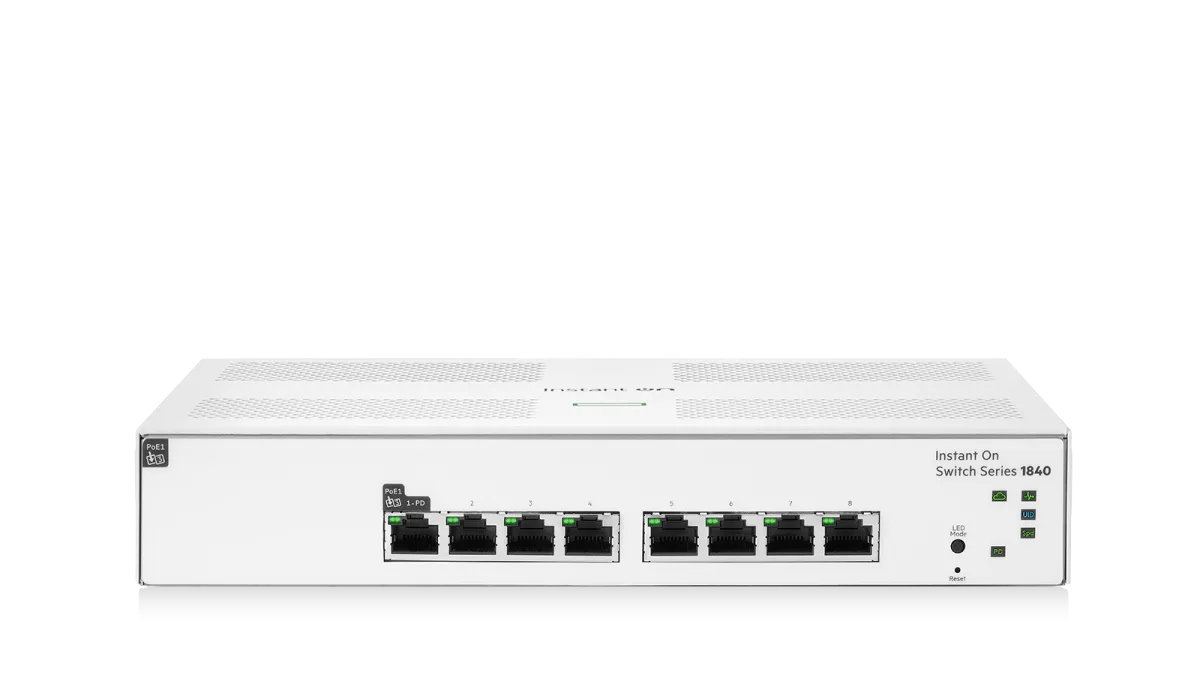

• White hp instant on switch series 1840 network switch with eight ethernet ports and indicator lights for gigabit use
1 1

Aruba Instant On

Aruba Instant On S5E25A#ABG | Instant On 1840 8-Port Gigabit Switch, 1p CL3 PD, No SFP, Fanless

Aruba Instant On S5E25A#ABG | Instant On 1840 8-Port Gigabit Switch, 1p CL3 PD, No SFP, Fanless

S5E25A#ABG

Stock Status: Enquire

$335.11 inc. GST
$304.65 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Aruba Instant On 1840 is a smart-managed Layer 2 Gigabit Switch designed for small businesses that need reliable, easy-to-manage networking without dedicated IT staff. This 8-port model features a unique Class 3 Powered Device (PD) port, meaning the switch itself can be powered directly by an upstream PoE switch — eliminating the need for a separate power outlet and keeping deployments clean and flexible. Managed via the Instant On mobile app, cloud web portal, or local GUI with no subscription fees required.

Built-in enterprise-grade security features include IEEE 802.1X, ACLs, DHCP snooping, IP Source Guard, VLANs, and TPM 2.0 hardware security. The fanless, compact desktop design makes it ideal for acoustically sensitive environments such as reception areas, retail counters, or small offices. QoS with four hardware queues ensures smooth performance for VoIP and video traffic. Get it now at iptrading.com.au — authentic hardware, reliable service.

Features

- Powered Device (PD) port — power the switch via an upstream PoE switch, no dedicated power outlet required
- Smart-managed via Instant On mobile app, cloud web portal, or local web GUI — no subscription fees
- IEEE 802.1X, ACLs, DHCP snooping, IP Source Guard, and TPM 2.0 for robust SMB security
- DSCP and IEEE 802.1p QoS with four hardware queues for VoIP and video prioritisation
- IEEE 802.1Q VLAN support for network segmentation
- Energy Efficient Ethernet (IEEE 802.3az) and auto-port shutdown to reduce power consumption
- Auto MDI/MDIX on all ports — no crossover cables needed
- Fanless, compact desktop form factor — silent operation for office and retail environments
- LLDP-based automatic power allocation for efficient energy management
- Designed for SMBs with no dedicated IT staff

Warranty

• Access Points & Secure Gateways: 2-year warranty
• Instant On Switches: Limited lifetime warranty
• Transceivers & DACs: 3-year warranty
Extended Warranty Options:
Extended coverage is available via IP Trading. Contact us to tailor a plan to your Aruba Instant On deployment.
https://instant-on.hpe.com/files/FAQ_AIO_Warranty-Support-Services.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8x 10/100/1000Base-T Gigabit Ethernet Ports
- 1x Class 3 Powered Device (PD) Port — IEEE 802.3af, up to 13W input
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.90 Mpps
- Layer 2 Smart-Managed
- No SFP Uplink Ports
- No PoE PSE Output
- Power Input: Class 3 PD (upstream PoE switch) or external power adapter
- Fanless Design
- TPM 2.0 Security Chip
- Dimensions: 16.50 x 25.40 x 4.40 cm
- Weight: 1.13 kg

FAQs

Q: Can this switch power other PoE devices?
A: No. The S5E25A is a Powered Device (PD) model — it can receive power from an upstream PoE switch via its Class 3 PD port, but it does not supply PoE power to connected devices. If you need PoE output, consider other models in the Instant On 1840 or 1960 series.

Q: How is the Instant On 1840 managed?
A: It can be managed via the Aruba Instant On mobile app (iOS/Android), a cloud-based web portal, or a local web GUI — all with no subscription fees or licensing costs required.

Q: Does this switch require a power outlet?
A: Not necessarily. The switch includes a Class 3 PD port that allows it to be powered by an upstream IEEE 802.3af-compliant PoE switch, making it ideal for deployments where a power outlet is unavailable or inconvenient. It can also be powered via an included external power adapter.

Q: Is this switch suitable for small office or retail environments?
A: Yes. The fanless, compact desktop design and simple app-based management make it ideal for small offices, retail counters, reception areas, or any acoustically sensitive space without dedicated IT support.

Q: What security features are included?
A: The 1840 includes IEEE 802.1X port-based authentication, ACLs, IEEE 802.1Q VLANs, DHCP snooping, IP Source Guard, and TPM 2.0 hardware security — providing enterprise-grade protection in an SMB package.

Q: Can I purchase the HPE Aruba Instant On S5E25A in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller supplying authentic HPE Aruba Instant On products with reliable local service. Contact us for pricing, availability, and volume enquiries.
