Arista

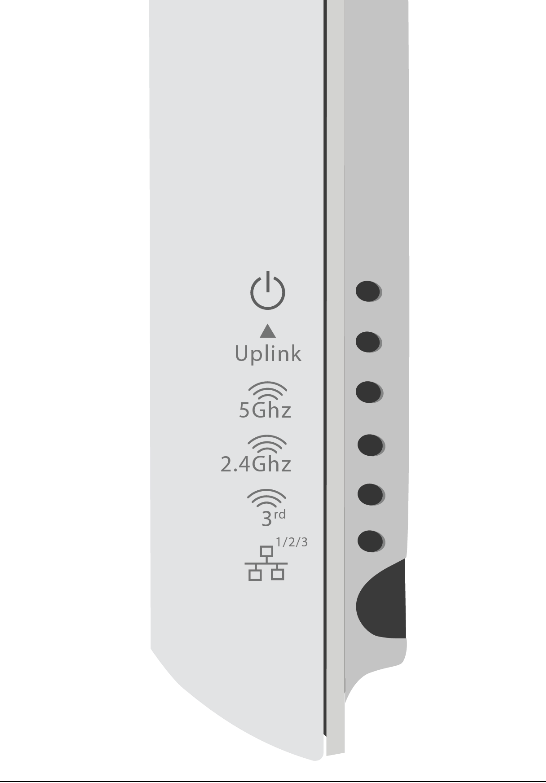

Arista OEM-AP-W118 | W-118 Wall Plate Wi-Fi 5 Access Point, 2x2:2, 4x GbE

Arista OEM-AP-W118 | W-118 Wall Plate Wi-Fi 5 Access Point, 2x2:2, 4x GbE

Authorised Arista Partner

SKU:OEM-AP-W118

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This item has been replaced by AP-W318.

Description

The Arista W-118 is a low-profile wall plate Wi-Fi 5 (802.11ac Wave 2) access point with 2x2:2 MU-MIMO and internal antennas. It provides a maximum data rate of 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, and includes four Gigabit Ethernet ports (one uplink and three LAN passthrough). That makes it well suited to per-room deployments in hospitality, dormitories, hostels and remote workspaces.

The W-118 supports VLAN segmentation and LAN port passthrough, so wired devices in the room can share the same connection as the wireless service. It is powered by 802.3at PoE or an optional DC supply, and includes built-in WIPS and mesh support for secure, scalable medium-density wireless coverage.

Features

- Low-profile wall plate form factor for in-room deployments
- Dual concurrent 5 GHz and 2.4 GHz radios with 802.11ac Wave 2 MU-MIMO
- VLAN segmentation and LAN port passthrough
- Three Gigabit LAN passthrough ports for wired in-room devices
- Suited to hospitality, dormitories, hostels and remote workspaces
- Built-in WIPS and mesh support

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Model: W-118
- Standard: 802.11a/b/g/n/ac Wave 2
- Spatial streams: 2x2:2 MU-MIMO
- Max data rate: 867 Mbps (5 GHz) / 300 Mbps (2.4 GHz)
- 2.4 GHz radio: 802.11b/g/n
- 5 GHz radio: 802.11a/n/ac (Wave 2)
- Channel width: 20/40/80 MHz
- Antenna: internal
- Ports: 4 x Gigabit Ethernet (1 x uplink, 3 x LAN passthrough)
- Power: 802.3at PoE or DC power
- Form factor: low-profile wall plate
- WIPS: supported
- Mesh: supported

FAQs

Q: What is the maximum wireless data rate of the W-118?
A: The W-118 supports up to 867 Mbps on the 5 GHz radio and up to 300 Mbps on the 2.4 GHz radio, using 2x2:2 MU-MIMO.

Q: How is the W-118 powered?
A: It can be powered by 802.3at PoE or by a DC power supply.

Q: How many Ethernet ports does the W-118 have?
A: It has four Gigabit Ethernet ports: one uplink and three LAN passthrough ports for wired devices in the room.

Q: Does the W-118 use internal or external antennas?
A: The W-118 uses internal antennas, which keeps the wall plate profile clean and low.

Q: Where is the W-118 best deployed?
A: It is designed for per-room, medium-density deployments such as hotels, hostels, dormitories and remote workspaces.

Q: Does the W-118 support VLAN segmentation?
A: Yes. It supports VLAN segmentation and LAN port passthrough, and also includes WIPS and mesh support.
