Arista AP-W318 | W-318 Tri-Band Wi-Fi 6E Wall Plate Access Point, 2.5GbE PoE
Arista AP-W318 | W-318 Tri-Band Wi-Fi 6E Wall Plate Access Point, 2.5GbE PoE
Authorised Arista Partner
SKU:AP-W318
Stock Status: Enquire
Couldn't load pickup availability
Description
Description

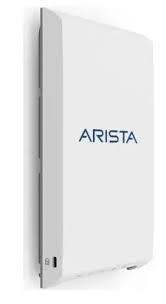

The Arista AP-W318 is a tri-band 2x2 Wi-Fi 6E wall plate access point with internal antennas, built for enterprise deployments in hotel rooms, student accommodation, healthcare wards and offices. It runs concurrent 6GHz, 5GHz and 2.4GHz 802.11ax radios, each with two spatial streams, with peak rates of up to 2.4 Gbps on 6GHz, 1.2 Gbps on 5GHz and 574 Mbps on 2.4GHz.
A 2.5 Gigabit Ethernet PoE uplink and three 1 Gigabit Ethernet ports let the AP-W318 serve wired devices from the same wall location. It includes a BLE radio and ZigBee-capable hardware for IoT use, plus a TPM for secure storage. The access point is managed through Arista CloudVision Wi-Fi, and its distributed control plane keeps serving users if the management plane is interrupted.
Features
Features
- Wired VLAN monitoring for 'No-WiFi' zone enforcement
- Third party analytics integration with real-time data transfer
- Self-healing wireless mesh networking
- Smart steering, band steering and smart load balancing
- Distributed control plane keeps serving users if the management plane is interrupted
- Interference avoidance from LTE/3G small and macro cells and CBRS
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Wi-Fi 6E (802.11ax), 6 stream wall plate access point
- Tri-band radios: 2x2:2 6GHz, 2x2:2 5GHz, 2x2:2 2.4GHz
- Up to 574 Mbps (2.4GHz), 1.2 Gbps (5GHz), 2.4 Gbps (6GHz)
- Integrated internal antennas
- 20/40/80/160 MHz channel widths
- MU-MIMO and OFDMA support
- 1 x 2.5 Gigabit Ethernet PoE port
- 3 x 1 Gigabit Ethernet ports
- PoE++ for full functionality, PoE+ with reduced functionality
- BLE radio and ZigBee-capable hardware
- TPM for secure storage
- Wall mounting
FAQs
Q: Which Wi-Fi standard and bands does the Arista AP-W318 support?
A: It is a tri-band Wi-Fi 6E (802.11ax) access point with concurrent 2x2:2 radios on 6GHz, 5GHz and 2.4GHz.
Q: How is the AP-W318 powered?
A: It is powered through its 2.5 Gigabit Ethernet PoE port. PoE++ is required for full functionality, and PoE+ will run it with reduced functionality.
Q: What wired ports does it provide?
A: One 2.5 Gigabit Ethernet PoE port and three 1 Gigabit Ethernet ports, so wired devices can connect at the same wall location.
Q: Does the AP-W318 have external antennas?
A: No. It uses integrated internal antennas in a wall plate form factor.
Q: How is the AP-W318 managed?
A: It is managed through Arista CloudVision Wi-Fi. Its distributed control plane architecture keeps serving users if the management plane is interrupted.
Q: Does it support IoT devices?
A: Yes. It includes a BLE radio and ZigBee-capable hardware, with ZigBee software support planned for future upgrades.
