Arista

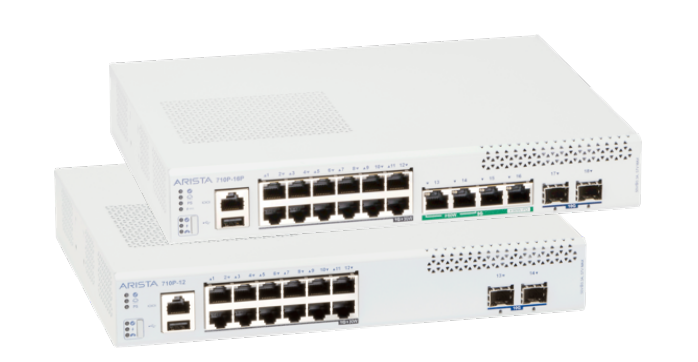

Arista CCS-710P-12 | 710P-12 12-Port Gigabit PoE Switch, 2x 10G SFP+, 150W

Arista CCS-710P-12 | 710P-12 12-Port Gigabit PoE Switch, 2x 10G SFP+, 150W

Authorised Arista Partner

SKU:CCS-710P-12

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista CCS-710P-12 is a compact, fanless managed PoE switch with 12 x 10M-1GbE RJ45 PoE ports at 30W and 2 x 1/10G SFP+ uplinks. This variant ships with a 150W external power adapter and no power cord, making it a space-saving choice for branch offices, retail sites and other constrained deployments that need silent operation.

Part of the Arista CCS-710P Compact Series, it can be managed on-prem or from the cloud with CloudVision and supports Zero Touch Provisioning for fast rollout. Sub-2 microsecond latency, jumbo frames to 9216 bytes and sFlow and IPFIX monitoring give network teams the visibility and performance they need at the edge.

Features

- Fanless design for silent operation
- Small form factor for space-constrained deployments
- Zero Touch Provisioning
- On-prem or cloud managed with CloudVision
- PoE powered capable, PoE pass-through and continuous PoE
- sFlow and IPFIX traffic and flow monitoring
- 802.1Q VLANs and trunking, 802.1AB LLDP, IGMP v1/v2/v3 snooping, 802.1s MSTP
- Mode button for user reset

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12 x 10M-1GbE RJ45 PoE ports at 30W
- 2 x 1/10G SFP+ uplinks
- Throughput (FDX): 64Gbps
- Packets per second: 95 Mpps
- Latency (RJ-45): 1.2 microseconds
- CPU: Dual Core x86
- System memory: 4GB, system flash: 8GB, packet buffer: 2MB
- 1 x USB port, 1 x console port
- Max power (excluding PoE): 46W
- Power input: 150W external adapter, no power cord included
- Size (WxHxD): 26.9 x 4.4 x 24.8 cm
- Weight: 2.05kg
- Jumbo frames (9216 bytes)

FAQs

Q: Does the CCS-710P-12 include a power cord?
A: No. This variant includes a 150W external power adapter but no power cord, so a suitable regional cord must be supplied separately.

Q: How many PoE ports does it have and at what power?
A: It has 12 x 10M-1GbE RJ45 PoE ports delivering up to 30W per port, powered by the 150W external adapter.

Q: What uplink options are available?
A: Two 1/10G SFP+ uplink ports, suitable for fibre or direct attach connections to an upstream aggregation or core switch.

Q: Can it be managed from the cloud?
A: Yes. It can be managed on-prem or through Arista CloudVision, and it supports Zero Touch Provisioning for simplified deployment.

Q: Is the switch fanless?
A: Yes. It is fanless and silent, which suits offices, classrooms and retail environments where noise matters.

Q: What is its switching performance?
A: It delivers 64Gbps full-duplex throughput and 95 Mpps forwarding with 1.2 microsecond latency on RJ-45 ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
