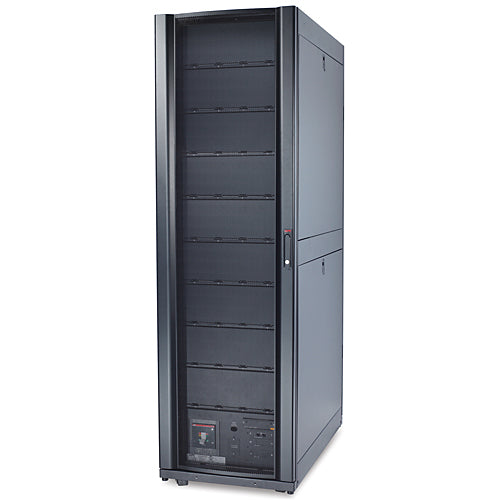

• APC SYCFXR9 Symmetra PX160 42U battery frame UPS cabinet black metal rack
1 1

APC

APC SYCFXR9 | Symmetra PX 42U UPS Battery Frame, 9 Modules, Frame Only

APC SYCFXR9 | Symmetra PX 42U UPS Battery Frame, 9 Modules, Frame Only

Authorised APC Partner

SYCFXR9

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Symmetra PX 42U UPS battery frame is a modular battery cabinet that holds up to 9 battery modules and is supplied as the frame only, with the battery modules sold separately. It is designed for Symmetra PX 96/160 kW (400V) and Symmetra PX 100 kW (208V) UPS systems, providing the extended runtime battery housing for large-scale power protection deployments.

The frame is built in a 42U NetShelter rack form factor, finished in black, and supports VRLA sealed lead acid battery modules connected in parallel for redundancy. It integrates into the modular Symmetra PX architecture and is compatible with StruxureWare Data Center Expert for centralised management.

Features

- Battery modules connect in parallel for higher availability through redundant batteries
- Hot-swappable batteries keep protected equipment powered during battery replacement
- Intelligent battery management provides precision charging to maximise battery performance, life and reliability
- Temperature-compensated charging prolongs battery life by regulating charge voltage according to battery temperature
- User-replaceable batteries reduce mean time to repair
- Compatible with StruxureWare Data Center Expert for centralised management
- Part of the modular Symmetra PX architecture in a NetShelter rack form factor

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Type: UPS battery cabinet (battery frame only)
- Rack height: 42U
- Capacity: up to 9 battery modules (sold separately)
- Compatible with Symmetra PX 96/160kW (400V) and Symmetra PX 100kW (208V)
- Battery technology: sealed lead acid (VRLA)
- Colour: Black
- Net weight: 345 kg
- Shipping weight: 379 kg
- Shipping dimensions: 2150 mm H x 848 mm W x 1210 mm D
- Storage temperature: -15 to 40 C
- Storage relative humidity: 0 to 95%
- Certifications: CE, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3

FAQs

Q: Does this battery frame include the battery modules?
A: No. This SKU is the frame only and holds up to 9 battery modules, which are sold separately.

Q: Which UPS systems is this frame compatible with?
A: It is compatible with the 400V Symmetra PX 96/160 kW and the 208V Symmetra PX 100 kW UPS systems.

Q: How many battery modules can the frame hold?
A: The frame holds up to 9 battery modules in a 42U rack form factor.

Q: What battery technology does the frame support?
A: It supports sealed lead acid (VRLA) battery modules, which are connected in parallel for redundancy.

Q: Can batteries be replaced without shutting down the load?
A: Yes. The batteries are hot-swappable and user-replaceable, so protected equipment stays powered during battery replacement.

Q: How does this SKU differ from SYCFXR9-9 and SYCFXR9-S?
A: SYCFXR9 is the frame only. The sibling SKUs SYCFXR9-9 and SYCFXR9-S include the 9 battery modules and/or startup service.
