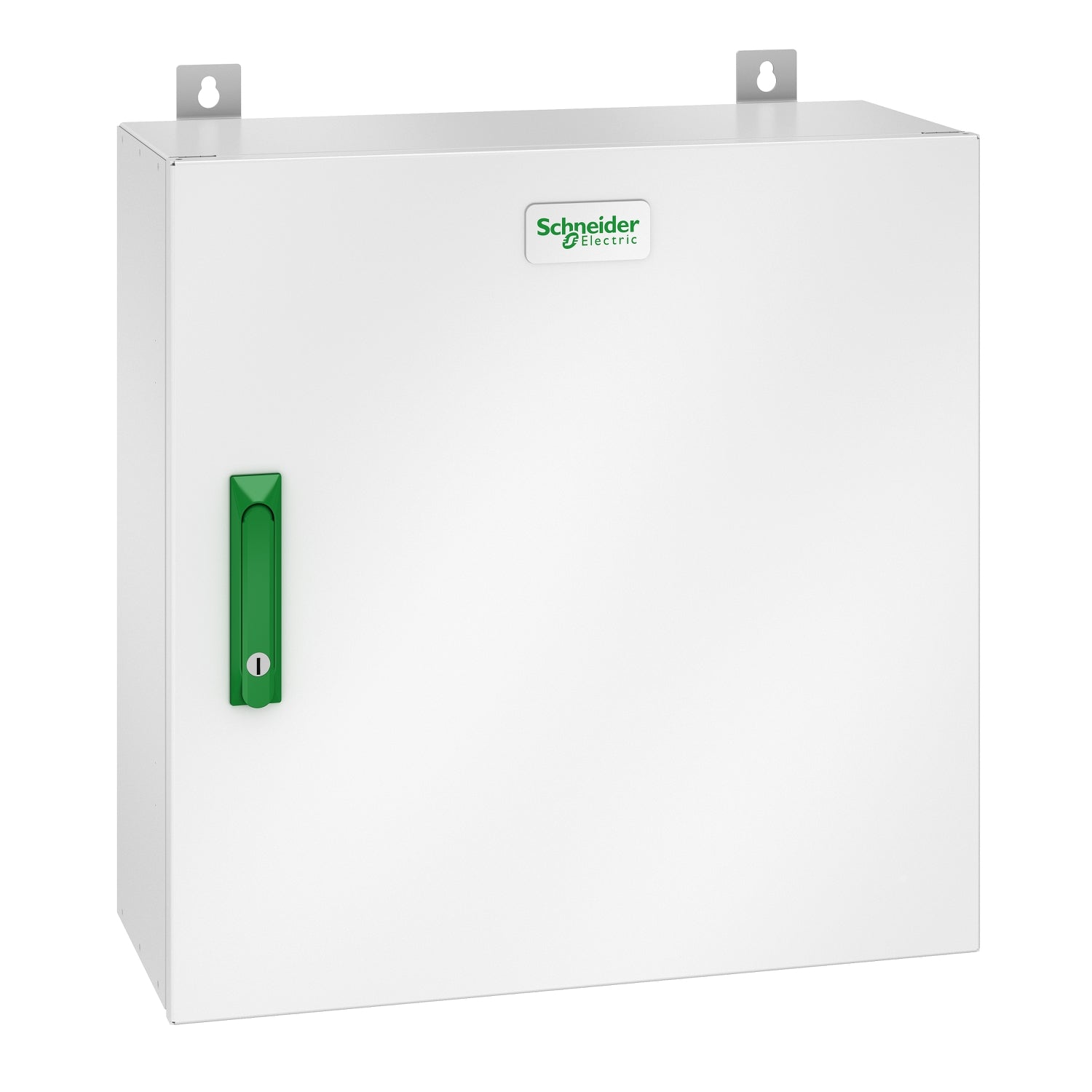

• White Schneider Electric Easy UPS 3M backfeed box with green handle and mounting brackets for 275A 3-phase UPS
1 1

APC

APC SP3OPT009 | Easy UPS 3M Backfeed Box, 275A 3-Phase, Bottom Connection, 60-100kVA

APC SP3OPT009 | Easy UPS 3M Backfeed Box, 275A 3-Phase, Bottom Connection, 60-100kVA

Authorised APC Partner

SP3OPT009

Stock Status: Enquire

$1,704.21 inc. GST
$1,549.28 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC SP3OPT009 is a wall-mount backfeed box with a 275A 3-phase power contactor and bottom connection, designed to provide backfeed protection for 400V Easy UPS 3M 60-100kVA systems. It suits both single and dual mains configurations, making it a practical addition to data centre and server room power installations.

This 275A box is the 60-100kVA option within the Easy UPS 3-Series accessories range. The Easy UPS 3M 60-100kVA system supports up to six UPS units in parallel and ECO mode, and the backfeed box helps protect upstream supply connections in these deployments.

Features

- Provides backfeed protection for Easy UPS 3M 60-100kVA 400V systems
- 275A 3-phase power contactor
- Wall-mountable enclosure
- Bottom connection for cabling
- Works with single or dual mains systems
- Sized for 60-100kVA models, with a larger 550A box available for 120-200kVA models

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: SP3OPT009
- Contactor rating: 275A
- Phases: 3-phase
- Connection type: Bottom connection
- Mounting: Wall mount
- Mains configuration: Single or dual mains
- Compatible UPS: Easy UPS 3M 60-100kVA, 400V
- Product range: Easy UPS 3-Series Accessories

FAQs

Q: Which UPS systems is the SP3OPT009 backfeed box compatible with?
A: It is designed for 400V Easy UPS 3M 60-100kVA systems.

Q: Does it support dual mains installations?
A: Yes. The backfeed box supports both single and dual mains system configurations.

Q: What contactor rating does this backfeed box use?
A: It uses a 275A 3-phase power contactor.

Q: How is the backfeed box mounted and connected?
A: It is a wall-mountable enclosure with a bottom connection arrangement.

Q: Can I use this box with the larger 120-200kVA Easy UPS 3M models?
A: No. The SP3OPT009 is the 60-100kVA option. The larger SP3OPT010 with a 550A contactor is intended for 120-200kVA models.
