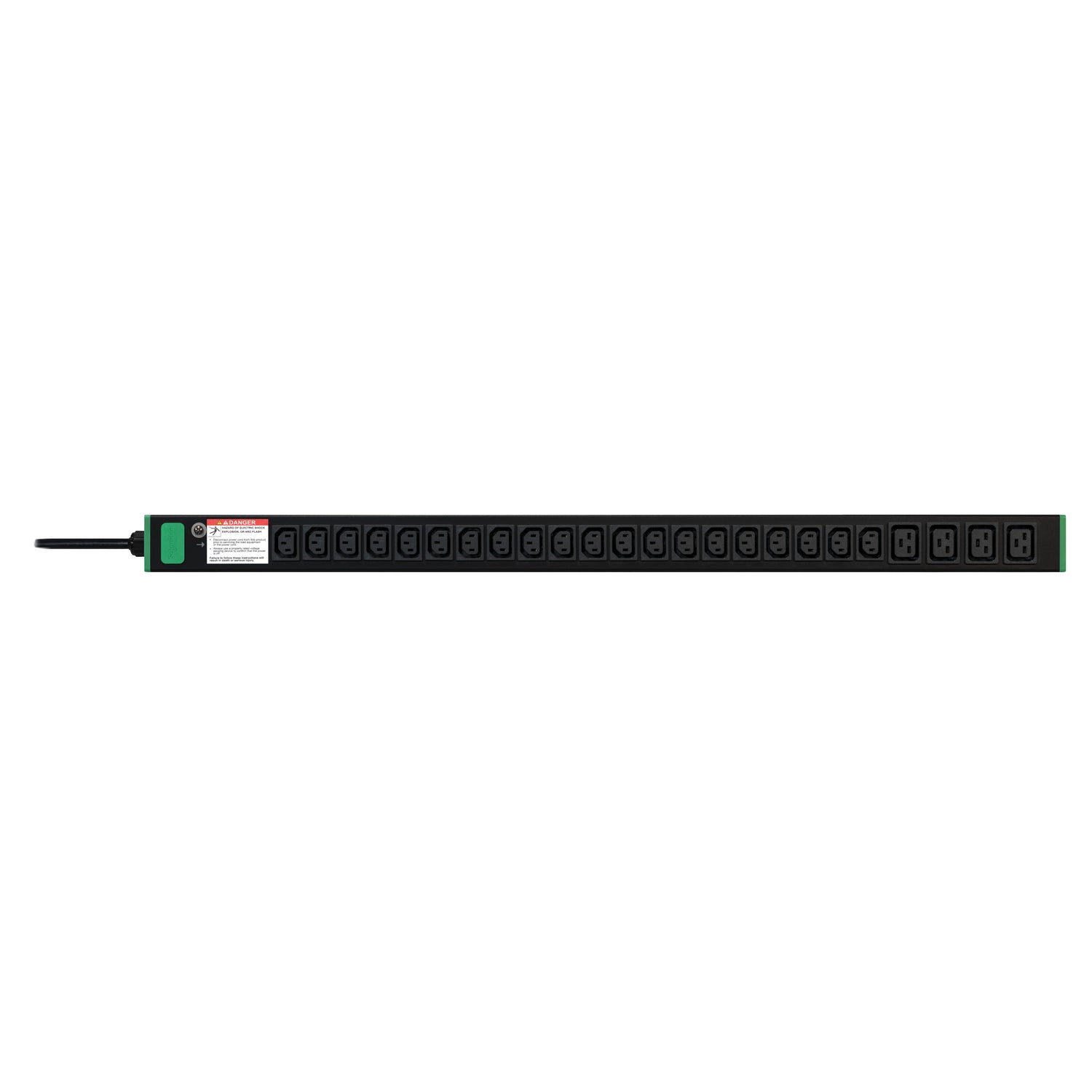

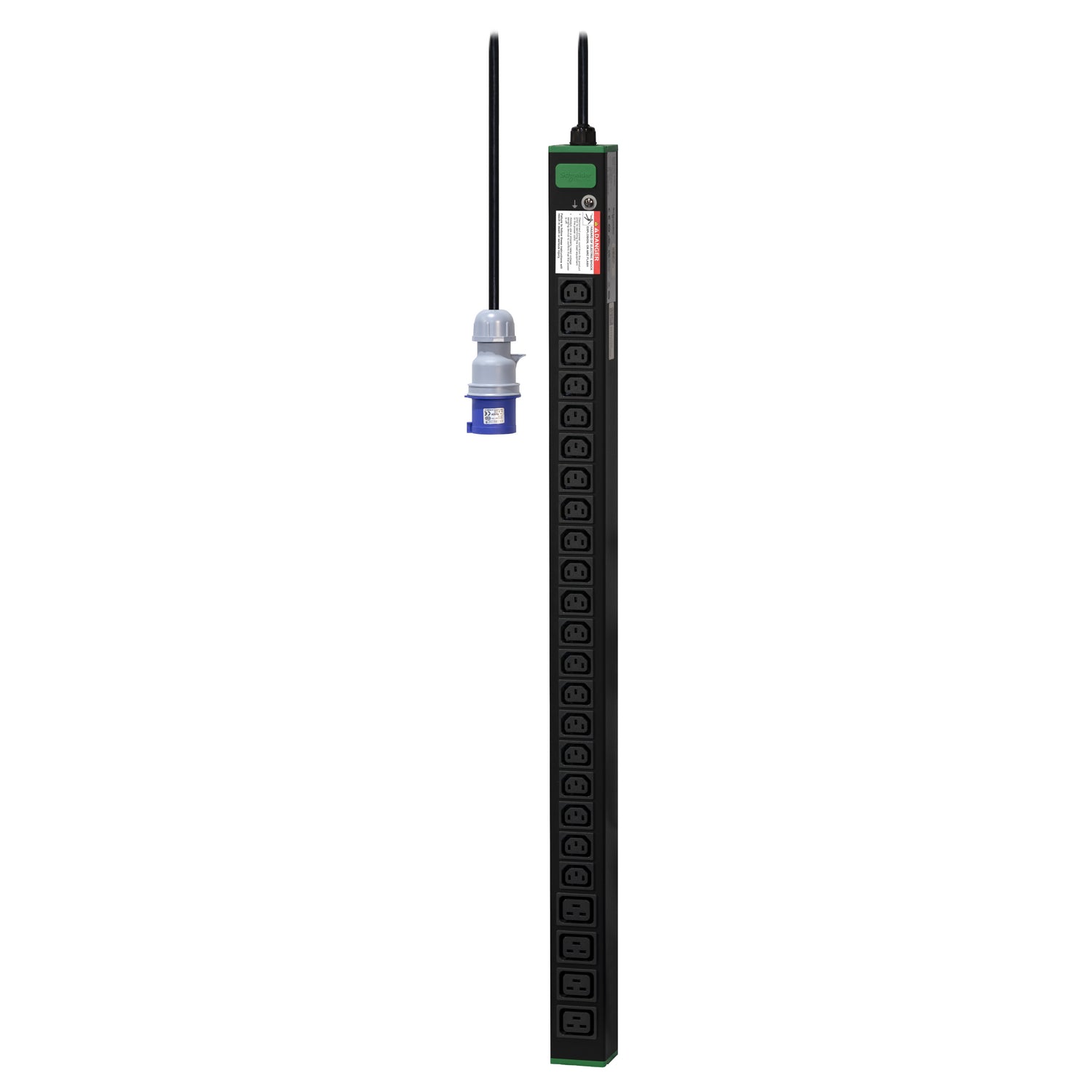

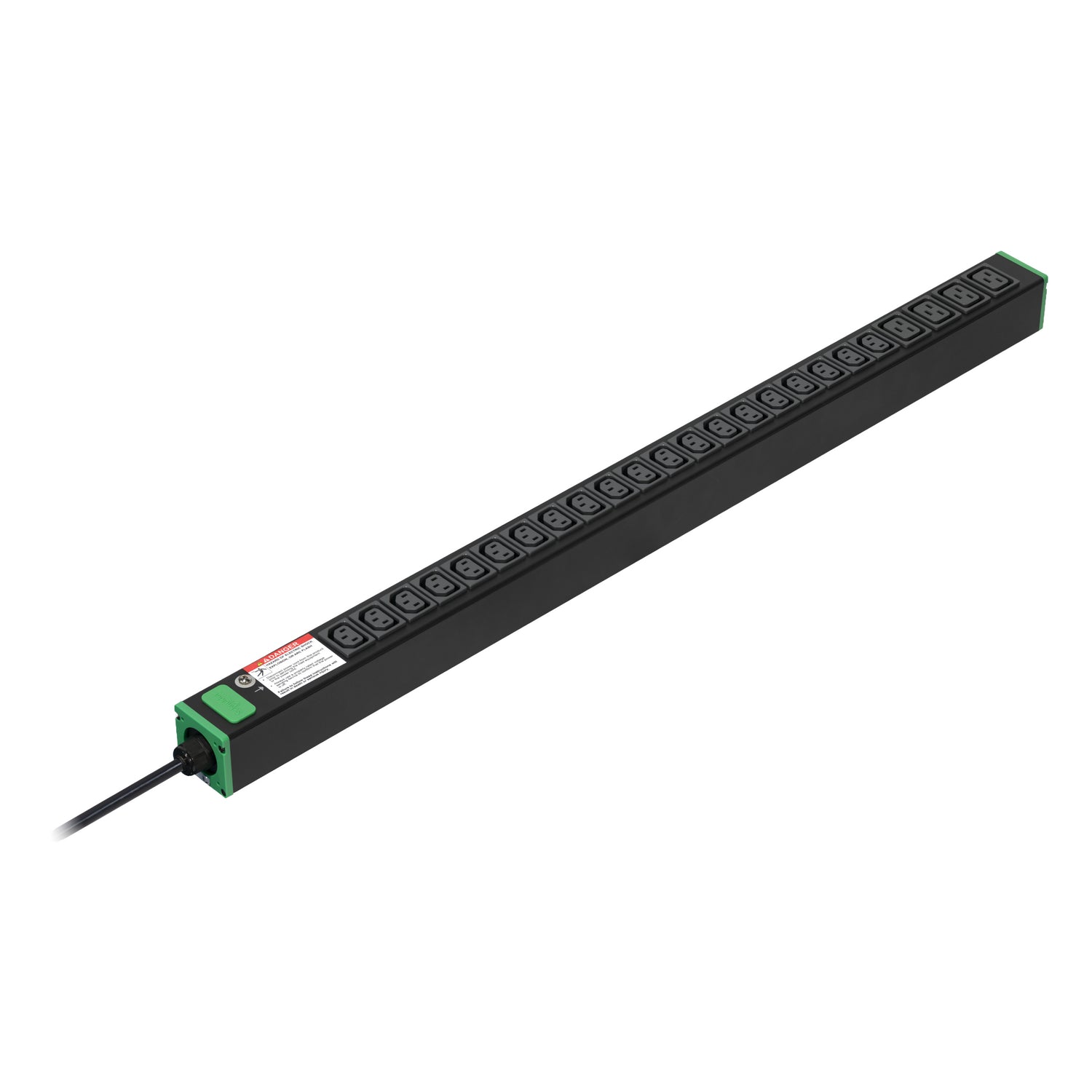

APC SEP6117G | EasyPDU Basic 0U Vertical PDU, 16A, 230V, 20xC13 4xC19, IEC60309

APC SEP6117G | EasyPDU Basic 0U Vertical PDU, 16A, 230V, 20xC13 4xC19, IEC60309

SEP6117G

Stock Status: Enquire

$338.37 inc. GST
$307.61 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC EasyPDU Basic vertical 0U rack PDU delivers reliable single-phase 230V/16A power distribution across 24 IEC 60320 outlets — 20 x C13 and 4 x C19 — making it an ideal choice for high-density data centre and server room deployments. With a 3.7kW capacity and IEC60309 plug inlet, it provides straightforward, no-frills power distribution with the flexibility to support a wide mix of IT equipment without consuming any horizontal rack unit space.

Installed vertically in the side channel of standard open-frame or enclosed racks, the SEP6117G maximises usable rack space while keeping power infrastructure tidy and accessible. CE certified and compatible with 50/60Hz environments, it suits both Australian and international data centre deployments. Order direct from iptrading.com.au — Australian-owned and operated since 2001.

Features

- Vertical 0U rack-mounted design preserves full rack unit availability for active equipment
- Side-mounted installation supports flexible integration into open-frame and enclosed racks
- 24 IEC 60320 outlets (20 x C13, 4 x C19) accommodates diverse IT and server hardware
- 16A single-phase input suitable for professional and enterprise rack environments
- IEC60309 plug inlet for secure, industrial-grade power connection
- 3.7kW power capacity supports high-density rack configurations
- 50/60Hz compatibility for use in Australian and international data centre environments
- CE certified for reliable and compliant operation

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form Factor: Vertical 0U (Zero U) rack-mount
- Input Voltage: 230V, Single Phase
- Input Current: 16A
- Power Capacity: 3.7kW
- Inlet: IEC60309 plug
- Total Outlets: 24 IEC 60320
- Outlet Types: 20 x IEC C13, 4 x IEC C19
- Frequency: 50/60 Hz
- Colour: Black
- Certification: CE

FAQs

Q: What is the total outlet count on the APC SEP6117G?
A: The SEP6117G provides 24 IEC 60320 outlets in total — 20 x C13 outlets for standard server and network equipment, and 4 x C19 outlets for higher-draw devices such as high-end servers, UPS units, and PDU transfer switches.

Q: What type of inlet plug does the SEP6117G use?
A: It uses an IEC60309 plug inlet, which provides an industrial-grade, secure power connection commonly found in professional data centre and server room power infrastructure.

Q: How is the SEP6117G mounted in a rack?
A: This is a vertical 0U PDU designed to mount along the side channel of a standard rack cabinet. This approach consumes no horizontal rack unit (U) space, allowing all rack units to remain available for active IT equipment.

Q: Is the APC SEP6117G suitable for Australian data centres?
A: Yes. It operates on 230V single-phase at 50/60Hz, which is compatible with Australian mains power (230V/50Hz). It is CE certified and built for professional IT environments. Note that the IEC60309 inlet requires an appropriate power outlet or whip connection at your rack.

Q: Can I purchase the APC SEP6117G in Australia through IP Trading?
A: Yes. The SEP6117G is available to order directly from iptrading.com.au. IP Trading is an Australian-owned and operated B2B IT hardware reseller with over 20 years of experience supplying enterprise power and networking infrastructure.

Q: What is the maximum power capacity of this PDU?
A: The SEP6117G supports a maximum power capacity of 3.7kW at 230V/16A single phase, making it well suited for standard rack deployments in data centre, server room, and network closet environments.
