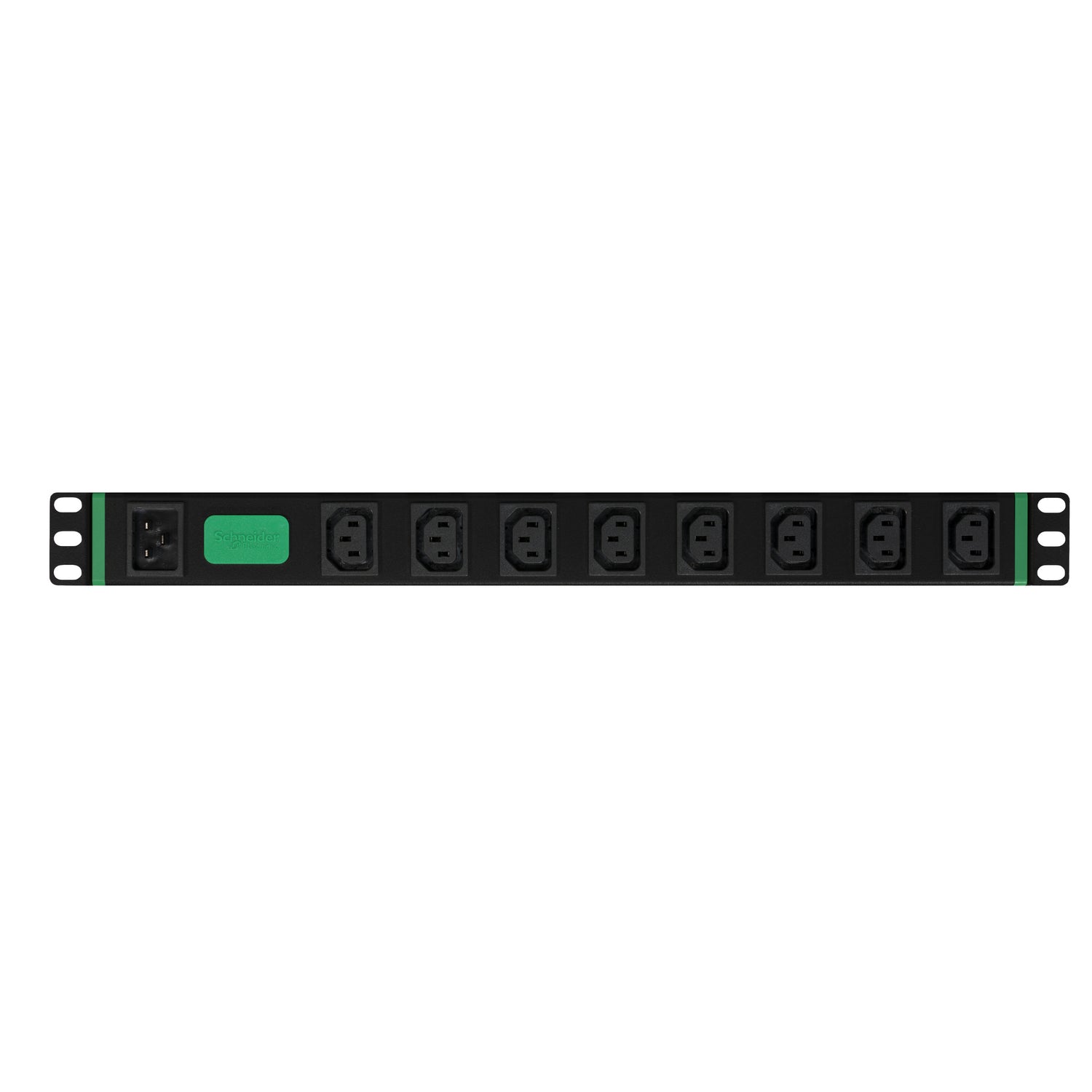

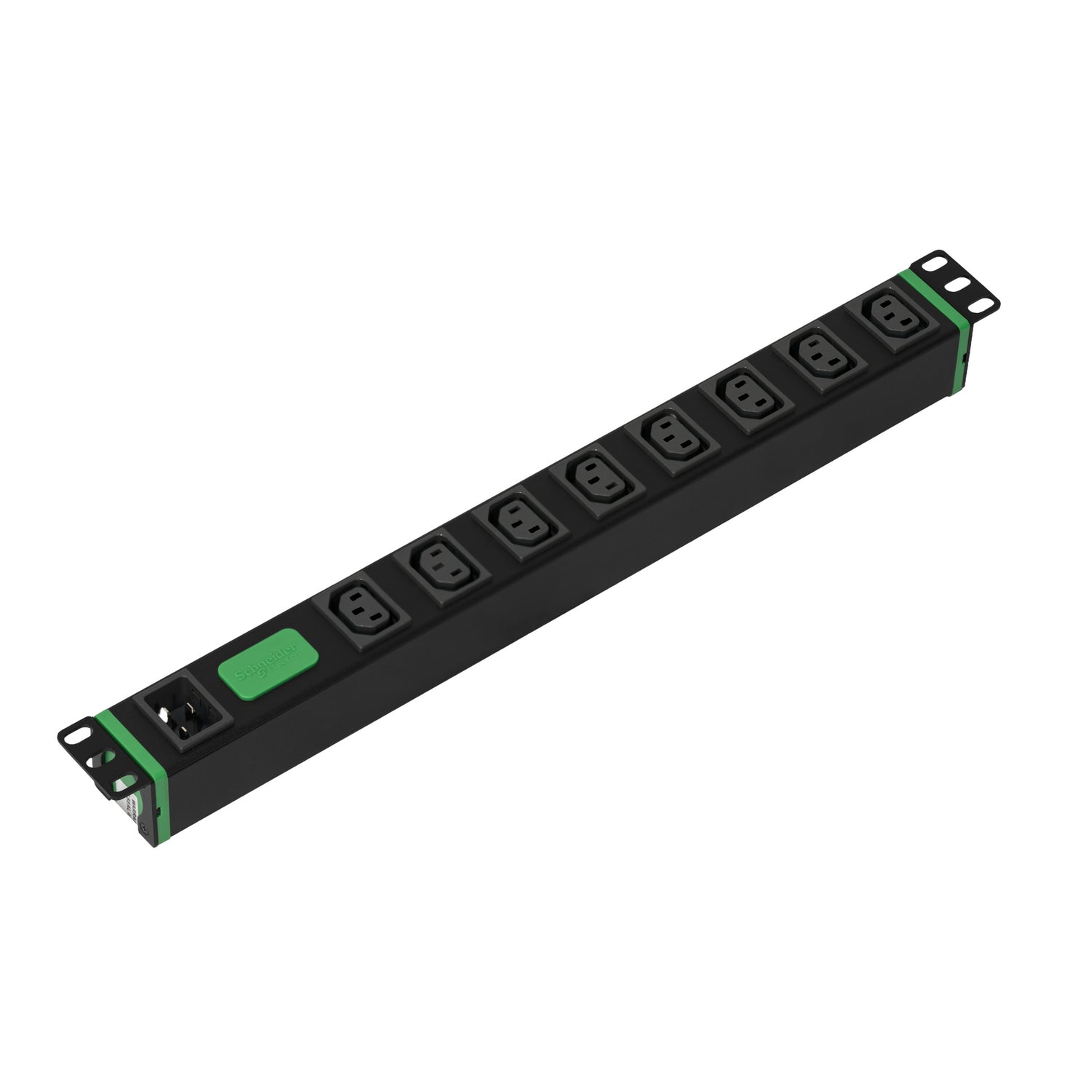

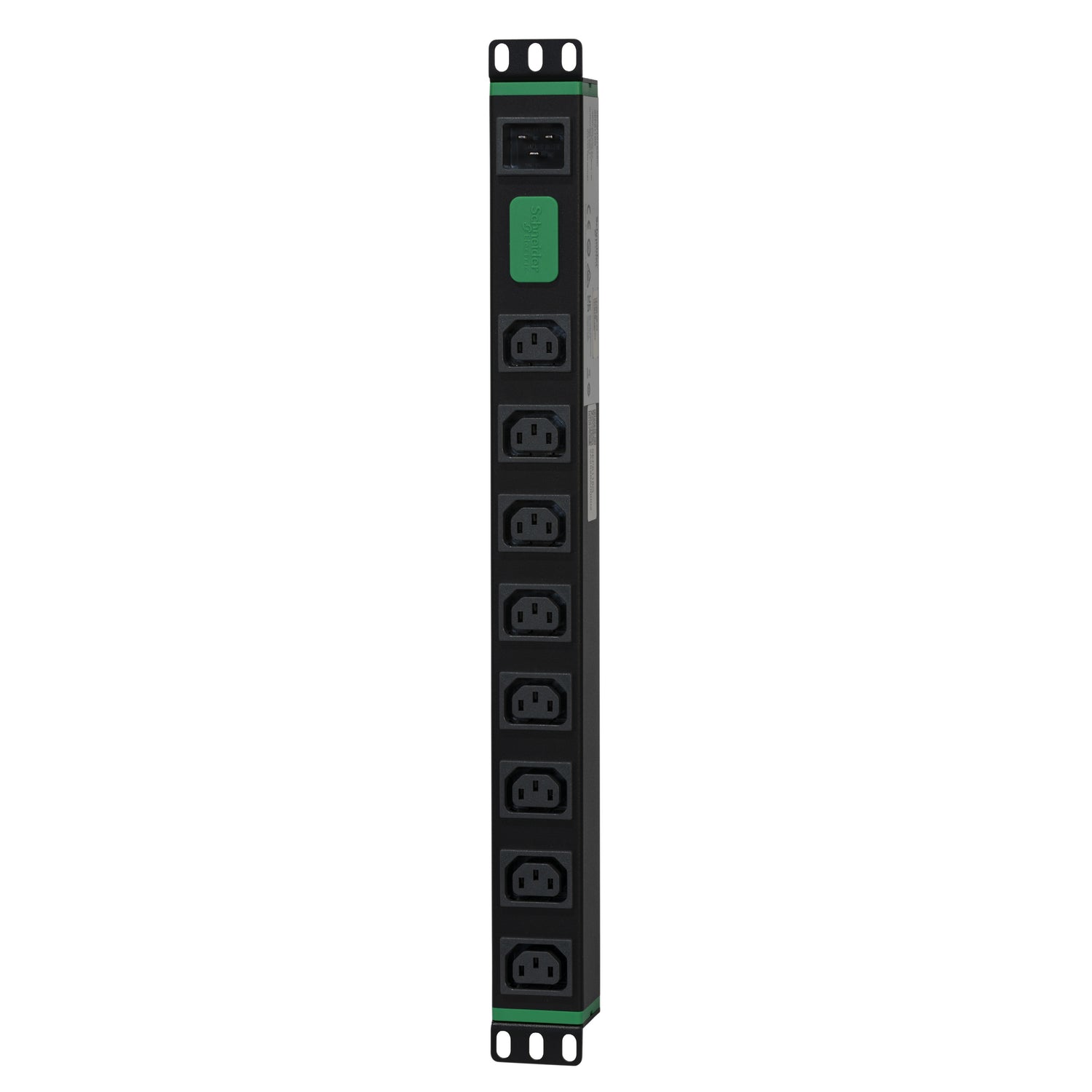

APC SEP6116G | Easy PDU Basic 1U Horizontal Rack PDU, 16A, 230V, 8x C13

APC SEP6116G | Easy PDU Basic 1U Horizontal Rack PDU, 16A, 230V, 8x C13

SEP6116G

Stock Status: Enquire

$128.11 inc. GST
$116.46 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Easy PDU Basic is a 1U horizontal rack-mountable Power Distribution Unit designed for straightforward, reliable power distribution in server racks and network cabinets. Delivering up to 3.7kW of single-phase power through 8 x IEC 60320 C13 outlets via a C20 inlet, it supports 200–240V AC environments at up to 16A — ideal for IT infrastructure deployments across data centres, server rooms, and comms cabinets.

Built with an ultra-lightweight aluminium housing (up to 50% lighter than traditional PDUs), the Easy PDU Basic installs toollessly into any 19-inch EIA-310-D or APC NetShelter rack using the included brackets and hardware. Compatible with APC's broader EasyPDU product family covering 120V, 208V, and 230V power ranges. Need it fast? iptrading.com.au delivers across Australia — shop now.

Features

- Horizontal 1U rack-mount design for space-efficient installation in standard 19-inch cabinets
- Ultra-lightweight aluminium housing — up to 50% weight reduction compared to traditional PDU models
- Toolless rack mounting with included brackets and hardware for fast, tool-free installation
- Single-phase power input supporting 200V, 208V, and 230V environments
- 8 x IEC 60320 C13 outlets provide flexible connectivity for servers, switches, and network appliances
- Compatible with APC NetShelter and all EIA-310-D standard 19-inch rack enclosures
- Part of APC's wide EasyPDU family covering 120V, 208V, and 230V power requirements
- Includes installation guide, user manual, power cable, and rack mounting brackets

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Rack Form Factor: 1U, Horizontal
- Output Connections: 8 x IEC 60320 C13 (10A per outlet)
- Input Connection: IEC 60320 C20
- Nominal Input Voltage: 200–240V AC
- Nominal Output Voltage: 208V / 230V
- Maximum Input Current: 16A
- Load Capacity: 3,680 VA (3.7 kW)
- Input Frequency: 50/60 Hz
- Power Cord Length: 2.5 m
- Dimensions: 482 mm (W) x 44 mm (H) x 44 mm (D)
- Net Weight: 0.58 kg
- Operating Temperature: -5°C to +45°C
- Storage Temperature: -25°C to +65°C
- Relative Humidity: 5–95% non-condensing
- Operating Altitude: 0–10,000 ft
- Colour: Black
- Certifications: CE, TÜV

FAQs

Q: What type of input connector does the SEP6116G use?
A: The APC Easy PDU Basic SEP6116G uses an IEC 60320 C20 inlet, accepting a standard C19-to-C20 power cord. A 2.5 m power cord is included in the box.

Q: How many devices can I connect to this PDU?
A: The SEP6116G provides 8 x IEC 60320 C13 outlets, each rated at 10A. The total load is capped at 16A (3.7 kW) at 230V, so load balancing across outlets is recommended for high-draw equipment.

Q: Is this PDU compatible with standard 19-inch racks?
A: Yes. The Easy PDU Basic mounts horizontally in any 19-inch EIA-310-D compliant rack, including APC NetShelter enclosures, using the included toolless mounting brackets and hardware.

Q: Does this PDU offer any monitoring or switching capabilities?
A: No — the SEP6116G is a Basic PDU, meaning it provides straightforward power distribution without metering, monitoring, or outlet-level switching. For managed or metered options, APC's Switched and Metered EasyPDU variants are available.

Q: Can I purchase the APC SEP6116G in Australia through IP Trading?
A: Yes. IP Trading stocks APC PDUs and delivers across Australia. Visit iptrading.com.au to order the SEP6116G or contact the team for volume pricing and fast dispatch.

Q: What certifications does the APC Easy PDU Basic hold?
A: The SEP6116G carries CE and TÜV certifications, confirming compliance with European safety and electromagnetic compatibility standards — suitable for deployment in Australian and international IT environments.
