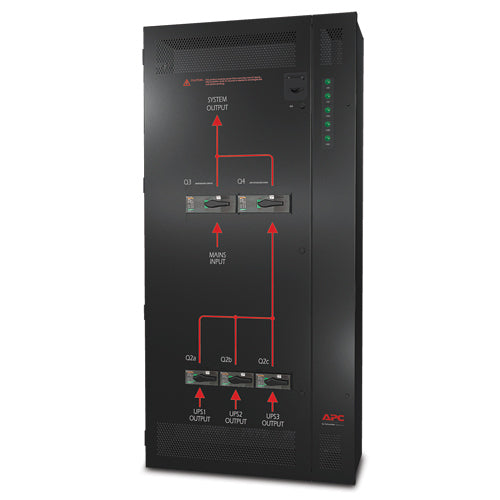

• Black APC SBPAR30K40H-WP server rack with red wiring diagram
1 1

APC

APC SBPAR30K40H-WP | Smart-UPS VT Parallel Maintenance Bypass Panel, 30-40kVA, 400V

APC SBPAR30K40H-WP | Smart-UPS VT Parallel Maintenance Bypass Panel, 30-40kVA, 400V

Authorised APC Partner

SBPAR30K40H-WP

Stock Status: Enquire

$5,077.71 inc. GST
$4,616.10 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC SBPAR30K40H-WP is a wall-mounted parallel maintenance bypass panel for up to 3 Smart-UPS VT units rated 30-40kVA at 400V three phase. It lets each UPS be isolated for service or replacement without interrupting power to the connected load, making it a practical choice for server rooms and critical facilities that need continuous uptime.

The panel supports parallel configurations of up to 120000VA and is configurable for 380, 400 or 415V three-phase nominal output voltage. It is designed to work with the APC Smart-UPS VT series and uses hard-wired 5-wire (3P + N + E) connections. Wall mounting keeps floor and rack space free.

Features

- Supports parallel configuration of up to 3 UPS units
- Maintenance bypass allows UPS service without load interruption
- Configurable for 380, 400 or 415V 3-phase nominal output voltage
- Compatible with APC Smart-UPS VT series
- Wall-mount design saves rack and floor space

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Main input voltage: 400V, 3 phase
- Main output voltage: 400V, 3 phase
- Other configurable output voltages: 380V / 415V
- Rated power: 120000VA (up to 3 units of 30-40kVA)
- Output connection: hard wire 5-wire (3P + N + E)
- Frequency: 50Hz
- Mounting: wall-mount, not rack-mountable
- Operating temperature: 0-40 C
- Operating humidity: 0-95%
- Operating altitude: 0-10000 ft
- Storage temperature: -15 to 45 C
- Storage humidity: 0-95%
- Standards: EN 50091-2, EN/IEC 62040-3, EN/IEC 62040-1-1, VFI-SS-111
- Package weight: approx. 54.9 kg

FAQs

Q: Which UPS models is the SBPAR30K40H-WP compatible with?
A: It is designed for the APC Smart-UPS VT series in the 30-40kVA, 400V range, with up to 3 units in parallel.

Q: Is this a power distribution unit?
A: No. It is a parallel maintenance bypass panel that allows UPS units to be isolated for service while the load stays powered. It is not a rack PDU.

Q: What output voltages does it support?
A: The nominal output is 400V three phase, and it can also be configured for 380V or 415V three phase.

Q: Can it be rack mounted?
A: No. It is a wall-mount panel and is not rack-mountable.

Q: How is it connected to the load?
A: Output is hard-wired using a 5-wire connection (3 phase, neutral and earth), so installation by a qualified electrician is required.

Q: How much total load can the parallel system handle?
A: The panel is rated for up to 120000VA, covering up to three 30-40kVA UPS units operating in parallel.
