APC SBP6KRMI2U | Maintenance Bypass Panel, 230V 32A MBB, Hardwire, 4x C19

APC SBP6KRMI2U | Maintenance Bypass Panel, 230V 32A MBB, Hardwire, 4x C19

Authorised APC Partner

SBP6KRMI2U

Stock Status: Enquire

$2,335.19 inc. GST
$2,122.90 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

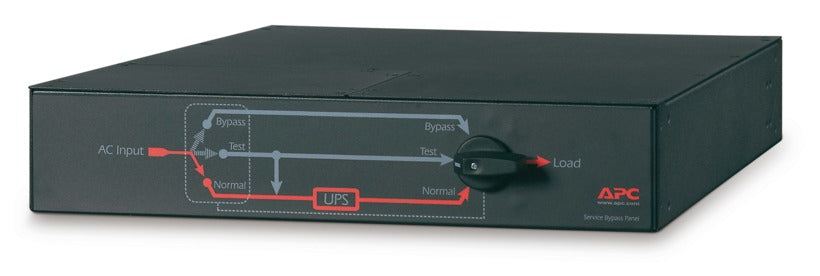

The APC SBP6KRMI2U is a 2U rack-mount maintenance bypass panel with a 230V, 32A hardwired input and four IEC C19 outputs. Its make-before-break (MBB) bypass lets a UPS be isolated for service, replacement or upgrade while connected equipment stays powered, so critical loads are not interrupted.

Rated for loads up to 7680VA, it suits APC Smart-UPS, Smart-UPS On-Line, Symmetra and InfraStruXure Type A systems. Rack mounting brackets, an installation guide and a user manual are included, and an overload circuit breaker protects the panel.

Features

- Isolates the UPS for maintenance or upgrades without interrupting power to critical loads
- Make-before-break bypass switching
- Compatible with APC Smart-UPS, Smart-UPS On-Line, Symmetra and InfraStruXure Type A
- Supports systems up to 7.6 kVA

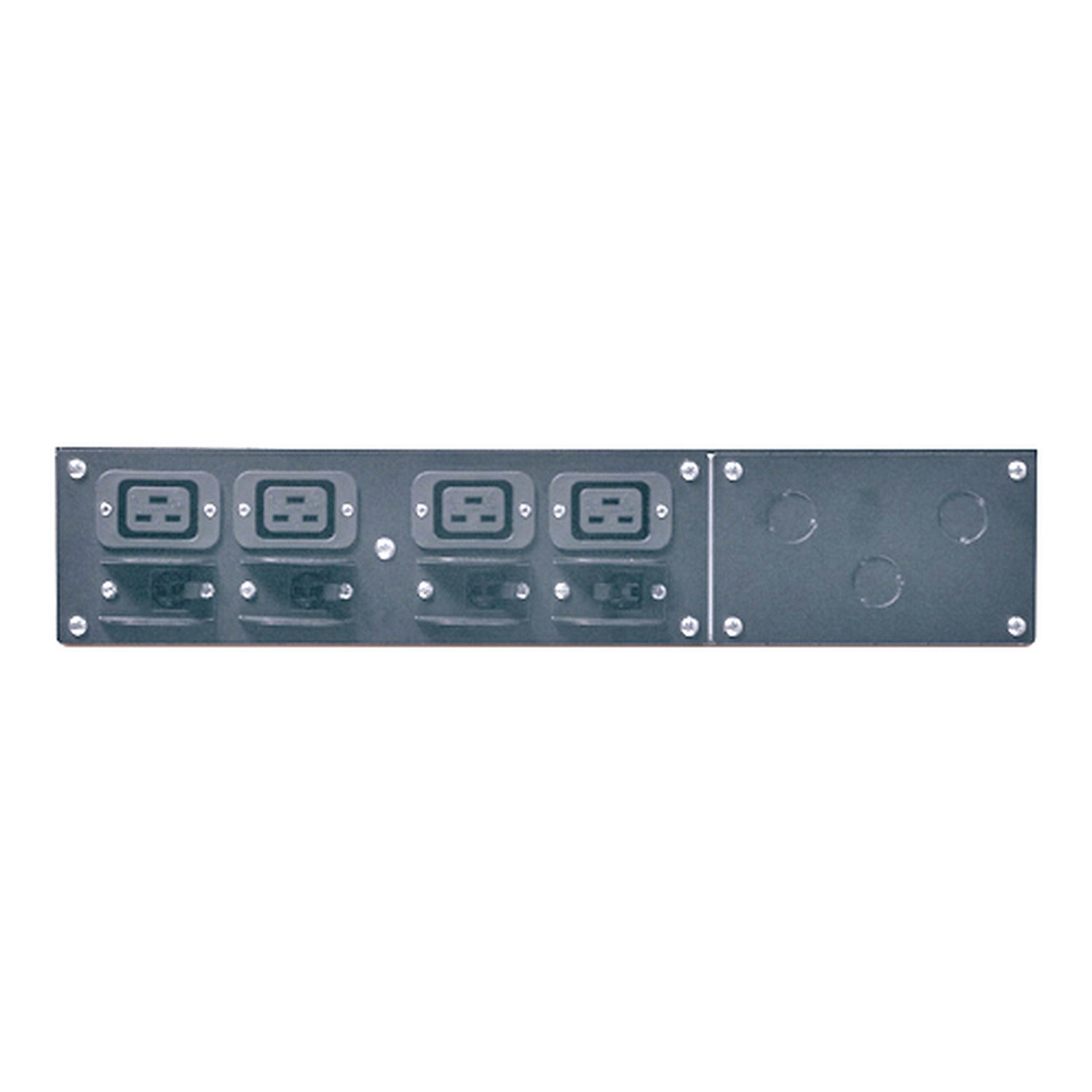

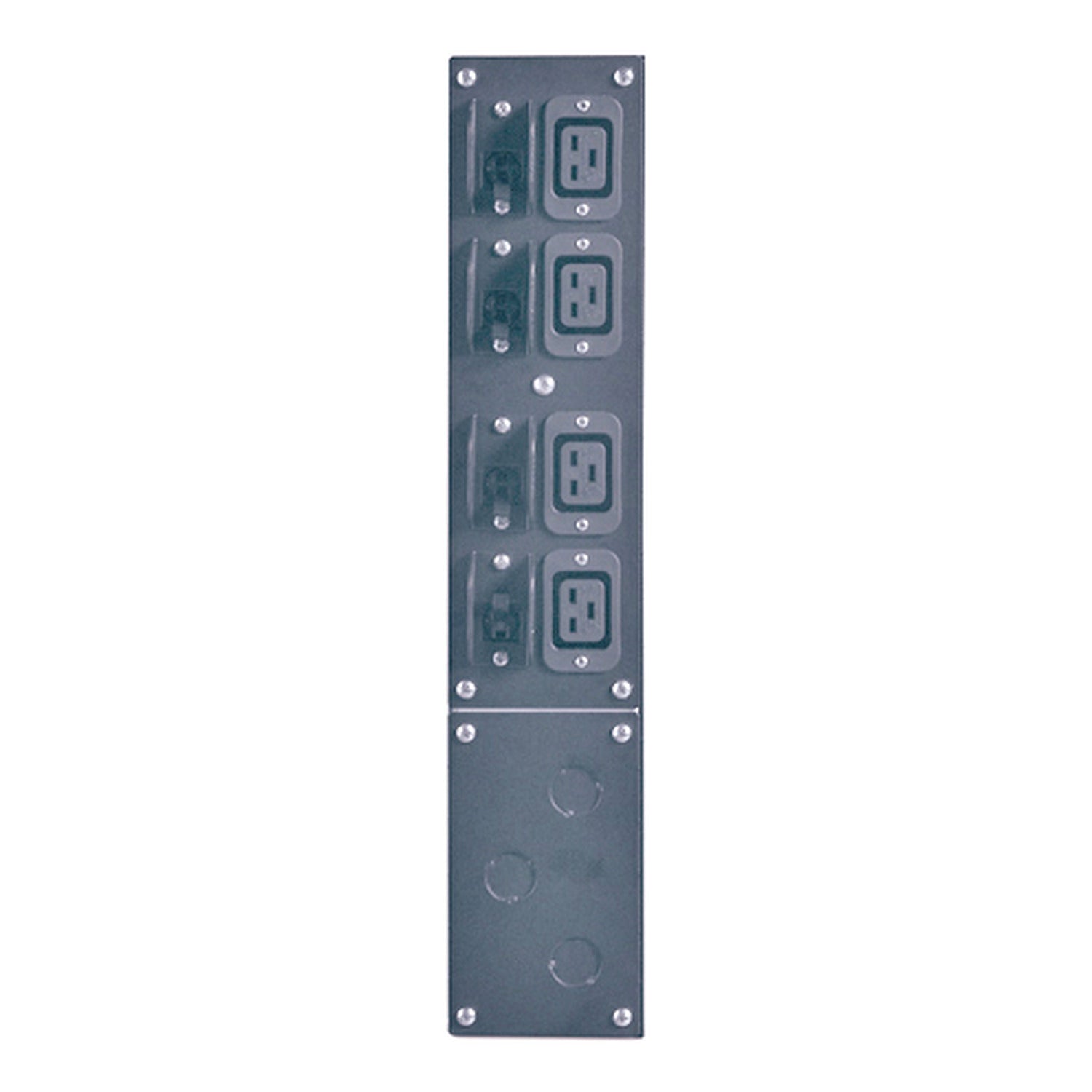

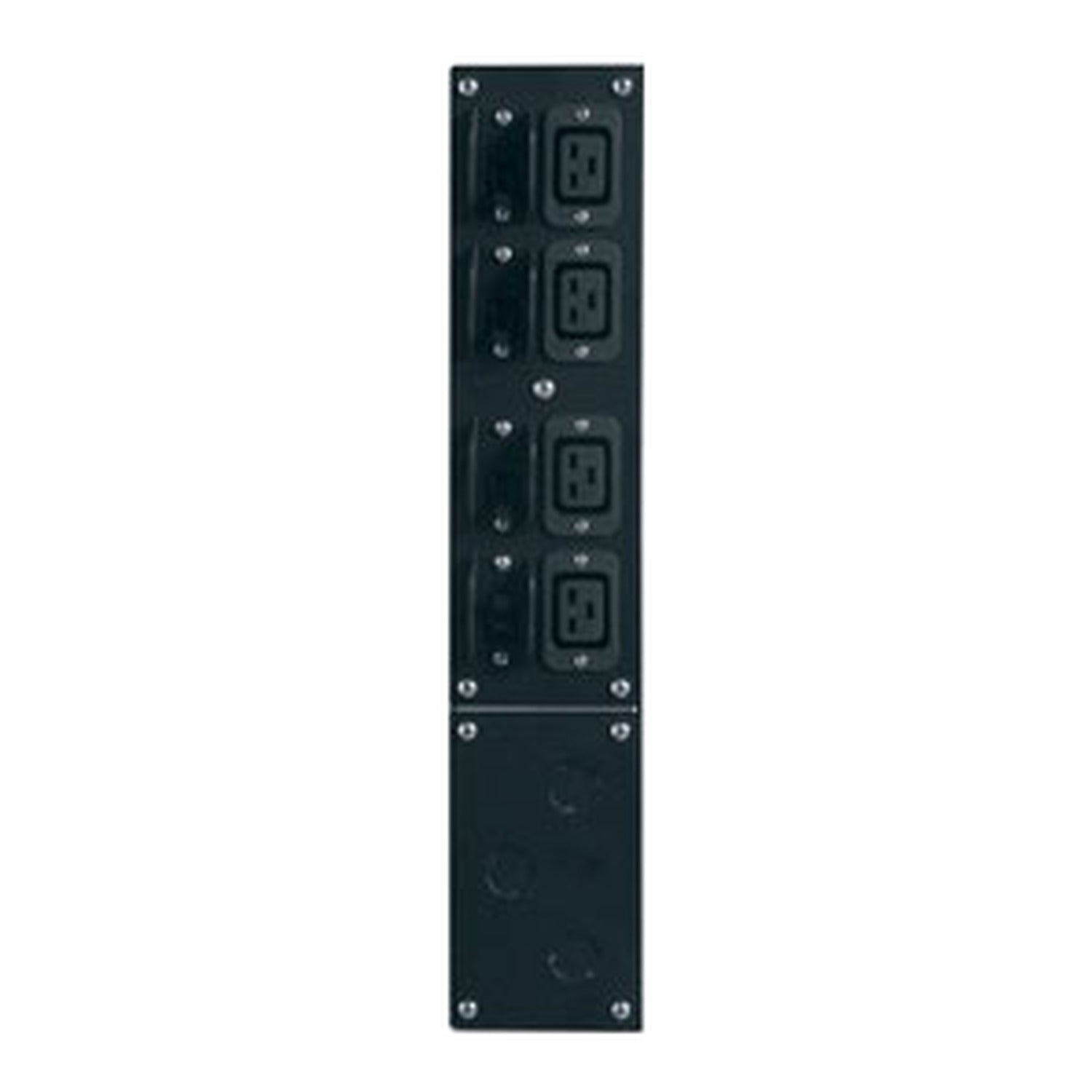

- Four IEC C19 outputs for connecting high-current equipment
- Includes rack mounting brackets, installation guide and user manual

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Input: 230V, 32A hardwired, 3-wire (1P + N + E)
- Input frequency: 50/60 Hz
- Outputs: 4 x IEC 60320 C19
- Load capacity: 7680VA, power factor range 0 to 1
- Bypass type: make-before-break (MBB)
- Efficiency at full load: 99%
- Overload protection: circuit breaker
- Form factor: 2U rack mount
- Dimensions (H x W x D): 89 x 432 x 660 mm
- Net weight: 11.36 kg
- Colour: Black
- Operating temperature: -20 to 50 C
- Approvals: CSA, EN 60950, GOST, IEC 60950, UL 1778

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Which UPS systems is the SBP6KRMI2U compatible with?
A: It is designed for APC Smart-UPS, Smart-UPS On-Line, Symmetra and InfraStruXure Type A systems, up to 7.6 kVA.

Q: How is the input connected?
A: The input is hardwired, 230V 32A, 3-wire (1P + N + E). It has no plug, so it needs a fixed connection by a qualified electrician.

Q: What outputs does it provide?
A: Four IEC 60320 C19 outputs, suitable for PDUs and equipment that use C19 connections.

Q: What does make-before-break mean for my loads?
A: The bypass connection is made before the UPS path is broken, so connected equipment stays powered while the UPS is isolated for service or replacement.

Q: How much space does it need in the rack?
A: It is a 2U rack-mount unit, 432 mm wide and 660 mm deep, and rack mounting brackets are included.

Q: What is the maximum load it can support?
A: It is rated for 7680VA and a maximum current of 32A, with circuit breaker overload protection.
