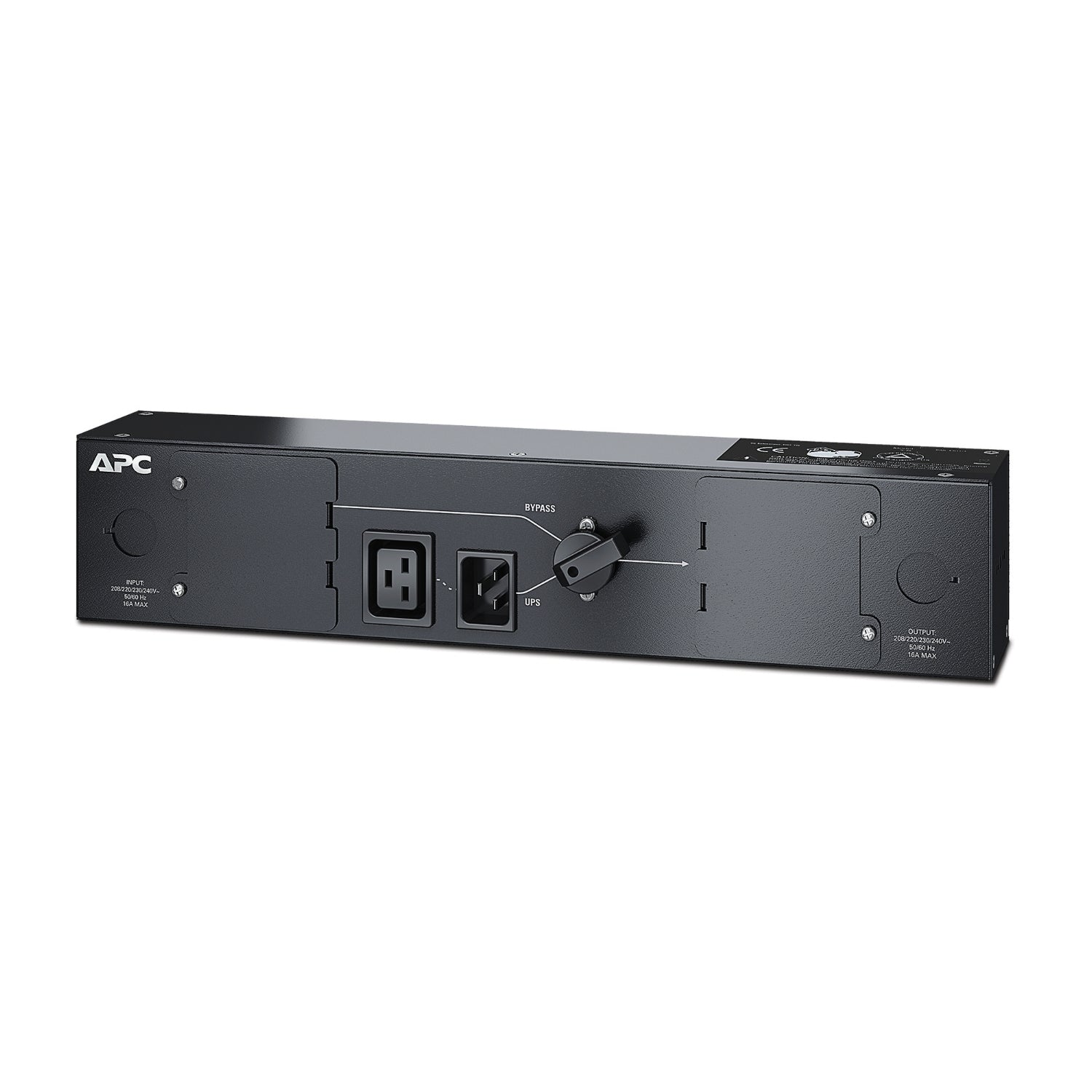

• APC SBP3000RMHW service bypass PDU rear view with black UPS outlets and switch
1 1

APC

APC SBP3000RMHW | Service Bypass Panel PDU, 3000VA, 230V 16A Hardwire, 2U

APC SBP3000RMHW | Service Bypass Panel PDU, 3000VA, 230V 16A Hardwire, 2U

Authorised APC Partner

SBP3000RMHW

Stock Status: Enquire

$559.13 inc. GST
$508.30 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC SBP3000RMHW is a 2U rack-mount service bypass panel PDU rated for 3000VA at 230V, with a 16A hardwired input and output. Its 3-breaker maintenance bypass design isolates a UPS from the critical load so the UPS can be serviced or replaced without interrupting connected equipment.

It is designed for APC InfraStruXure Type A, Smart-UPS and Symmetra UPS products, with a 99% efficiency rating at full load. Rack mounting brackets and a user manual are included, and the 19 inch format fits standard server and network racks.

Features

- 3-breaker wrap-around maintenance bypass to isolate the UPS from the critical load
- Quick transfer between power sources with no disruption to connected equipment
- Designed for APC InfraStruXure Type A, Smart-UPS and Symmetra UPS products
- 99% efficiency at full load
- 19 inch rack-mountable in 2U
- Rack mounting brackets and user manual included

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Load capacity: 3000VA
- Nominal input and output voltage: 230V
- Acceptable input voltage: 220-240V, 50/60Hz
- Maximum line current: 16A
- Input connection: hard wire 3-wire (H N + E)
- Output connections: 1 x IEC jumper, 1 x hard wire 3-wire (H N + E)
- Overload protection: circuit breaker
- Efficiency at full load: 99%
- Form factor: 2U rack mount
- Dimensions (H x W x D): 89 x 432 x 76 mm
- Net weight: 2.27 kg
- Operating temperature: 0 to 40 C
- Approvals: VDE
- Included: rack mounting brackets, user manual

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What is a service bypass panel used for?
A: It lets you transfer the critical load away from the UPS so the UPS can be serviced, maintained or replaced without shutting down connected equipment.

Q: Which APC UPS products is it designed for?
A: It is designed for APC InfraStruXure Type A, Smart-UPS and Symmetra UPS products.

Q: What is the load capacity and current rating?
A: The panel is rated for 3000VA at 230V with a maximum line current of 16A.

Q: How is it connected to power?
A: It uses a 230V 16A hardwired 3-wire (H N + E) connection and has one IEC jumper output plus a hardwired output.

Q: How much rack space does it need?
A: It is a 2U, 19 inch rack-mount unit and rack mounting brackets are included.

Q: Does it include overload protection?
A: Yes, it has circuit breaker overload protection.
