APC SBP20KRMI4U | Maintenance Bypass Panel, 230V 125A, Hardwire, 8x C19, 4U

APC SBP20KRMI4U | Maintenance Bypass Panel, 230V 125A, Hardwire, 8x C19, 4U

Authorised APC Partner

SBP20KRMI4U

Stock Status: Enquire

$4,470.51 inc. GST
$4,064.10 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

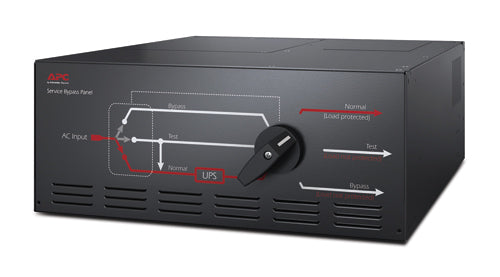

The APC SBP20KRMI4U is a 4U rack-mount maintenance bypass panel rated 230V and 125A, designed to keep connected equipment running on utility power while a UPS is serviced or replaced. It features a hardwired input and eight IEC 60320 C19 output outlets, making it a practical choice for distributing a 20kVA load in server rooms and data centres.

Make-before-break bypass switching allows the UPS to be taken out of the power path without interrupting the load. It is suited to compatible Smart-UPS RT models including the SURT10000RMXLIBP, SURT10000RMXLICH and the SURT15KRMXLI-3AVL, 3HAVL, 5AVL and 5HAVL, and ships with rack mounting brackets, an installation guide and a user manual.

Features

- Supplies utility power to connected equipment during UPS maintenance or replacement
- Make-before-break (MBB) bypass switching
- Hardwired input with 8 C19 outlets for distributing load
- 4U rack-mount design
- Rack mounting brackets, installation guide and user manual included

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rated power capacity: 20000 VA
- Rated voltage: 230 V
- Rated current: 125 A
- Input connections: hardwire 5-wire (3PH+N+G) or hardwire 3-wire (1PH+N+G)
- Output connections: 8 x IEC 60320 C19
- Form factor: rack-mount, 4U
- Dimensions (WxDxH): 43.2 x 57.2 x 17.8 cm
- Net weight: approx. 18.8 kg
- Colour: Black

FAQs

Q: Which UPS models is the SBP20KRMI4U compatible with?
A: It is compatible with the APC SURT10000RMXLIBP, SURT10000RMXLICH, SURT15KRMXLI-3AVL, SURT15KRMXLI-3HAVL, SURT15KRMXLI-5AVL and SURT15KRMXLI-5HAVL.

Q: What does a maintenance bypass panel do?
A: It lets connected equipment continue to run from utility power while the UPS is serviced, tested or replaced, avoiding downtime for the protected load.

Q: How is the panel connected to the mains supply?
A: The input is hardwired, supporting 5-wire (3PH+N+G) or 3-wire (1PH+N+G) connections, so installation should be carried out by a qualified electrician.

Q: What outlets does it provide?
A: It provides eight IEC 60320 C19 outlets for connecting UPS-protected loads such as rack PDUs or high-draw equipment.

Q: Does it use make-before-break switching?
A: Yes, make-before-break (MBB) bypass switching is used so the load is not interrupted when transferring between UPS and bypass.

Q: How much rack space does it need?
A: It is a 4U rack-mount unit and ships with rack mounting brackets.
