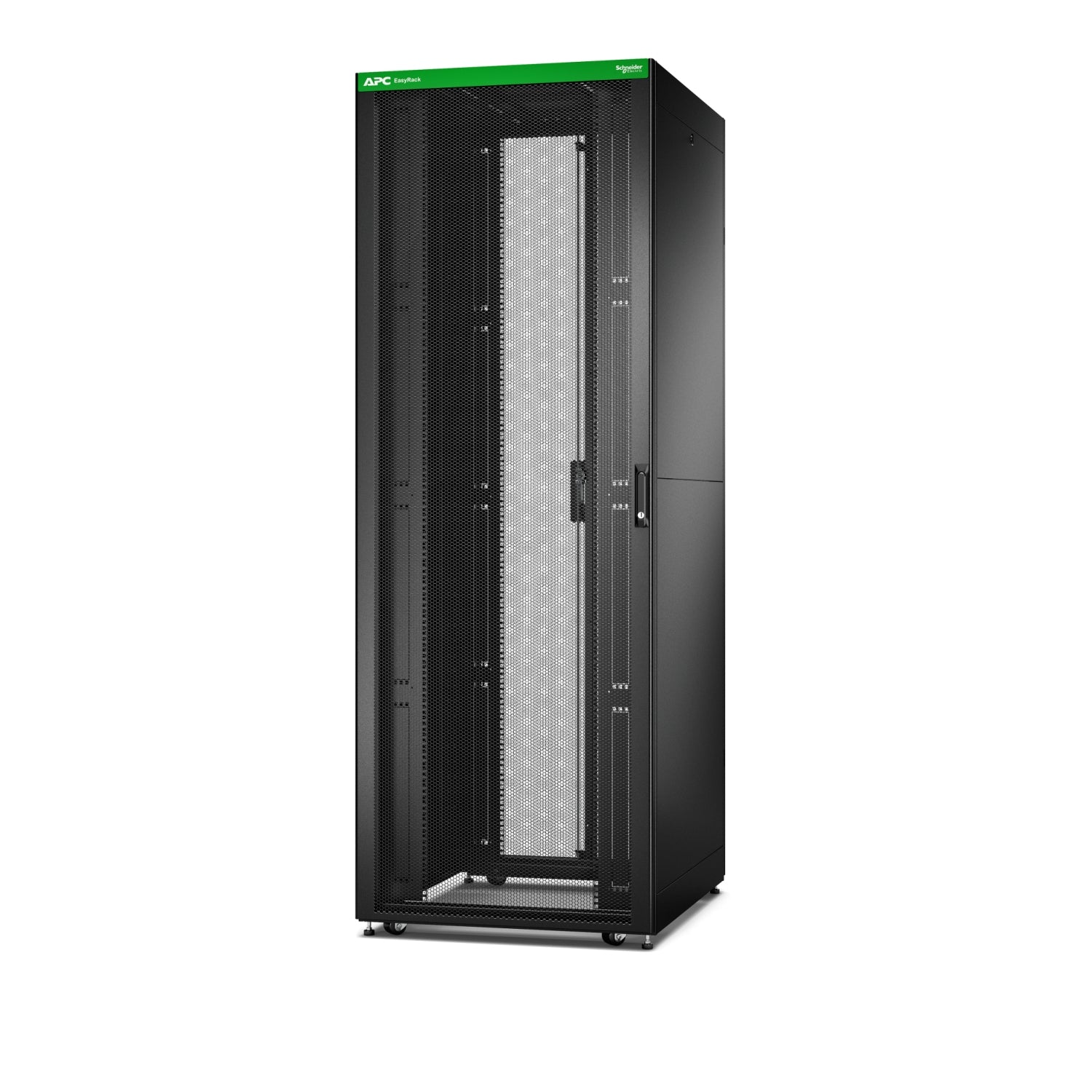

• APC Easy Rack 48U black server rack with green top panel and mesh doors
1 1

APC

APC ER8802 | Easy Rack 48U Rack Enclosure, 800x1000mm, Castors, Feet

APC ER8802 | Easy Rack 48U Rack Enclosure, 800x1000mm, Castors, Feet

Authorised APC Partner

ER8802

Stock Status: Enquire

$2,946.82 inc. GST
$2,678.93 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Easy Rack 48U rack enclosure is a freestanding 19-inch cabinet for server, network and edge computing deployments. This 800W x 1000D mm black model stands 2258 mm high and includes a roof, side panels, pre-installed castors, levelling feet and 4 brackets, with no bottom panel.

Built with 16 gauge vertical posts and an 18 gauge front door, it carries a static load of 1199.75 kg and a dynamic load of 599.65 kg. Baying hardware, keys, keyed-alike doors and mounting hardware are included, and the enclosure is approved to EIA-310E, UL 2416 and UL 60950-1.

Features

- Proven, affordable IT enclosure design with essential features
- Suitable for server rack, network rack and edge computing applications
- Includes roof and side panels
- Pre-installed castors for easy positioning
- Levelling feet and mounting hardware included
- Baying hardware, keys and keyed-alike doors included
- No bottom panel for open cable entry from below

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rack height: 48U
- Rack width: 19 in
- Dimensions: 2258 mm H x 800 mm W x 1000 mm D
- Colour: Black
- Net weight: 140.4 kg
- Static load capacity: 1199.75 kg
- Dynamic load capacity: 599.65 kg
- Maximum mounting depth: 838 mm
- Minimum mounting depth: 242 mm
- Front door: 18 gauge
- Vertical posts: 16 gauge
- Rear door: 19 gauge
- Approvals: EIA-310E, UL 2416, UL 60950-1
- Includes: roof, side panels, castors, feet, 4 brackets (no bottom)

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What size is the ER8802 Easy Rack?
A: It is a 48U, 19-inch rack measuring 2258 mm high, 800 mm wide and 1000 mm deep, finished in black.

Q: Does the ER8802 include a bottom panel?
A: No. This model ships without a bottom panel. It includes a roof, side panels, castors, levelling feet and 4 brackets.

Q: What is the load capacity of this rack?
A: The static load capacity is 1199.75 kg and the dynamic load capacity is 599.65 kg.

Q: Can I move the rack once it is assembled?
A: Yes. Castors are pre-installed for repositioning, and levelling feet are included to stabilise the rack once it is in place.

Q: What mounting depth range does it support?
A: The minimum mounting depth is 242 mm and the maximum mounting depth is 838 mm.

Q: Can multiple Easy Racks be joined together?
A: Yes. Baying hardware is included so adjacent racks can be bayed together.
