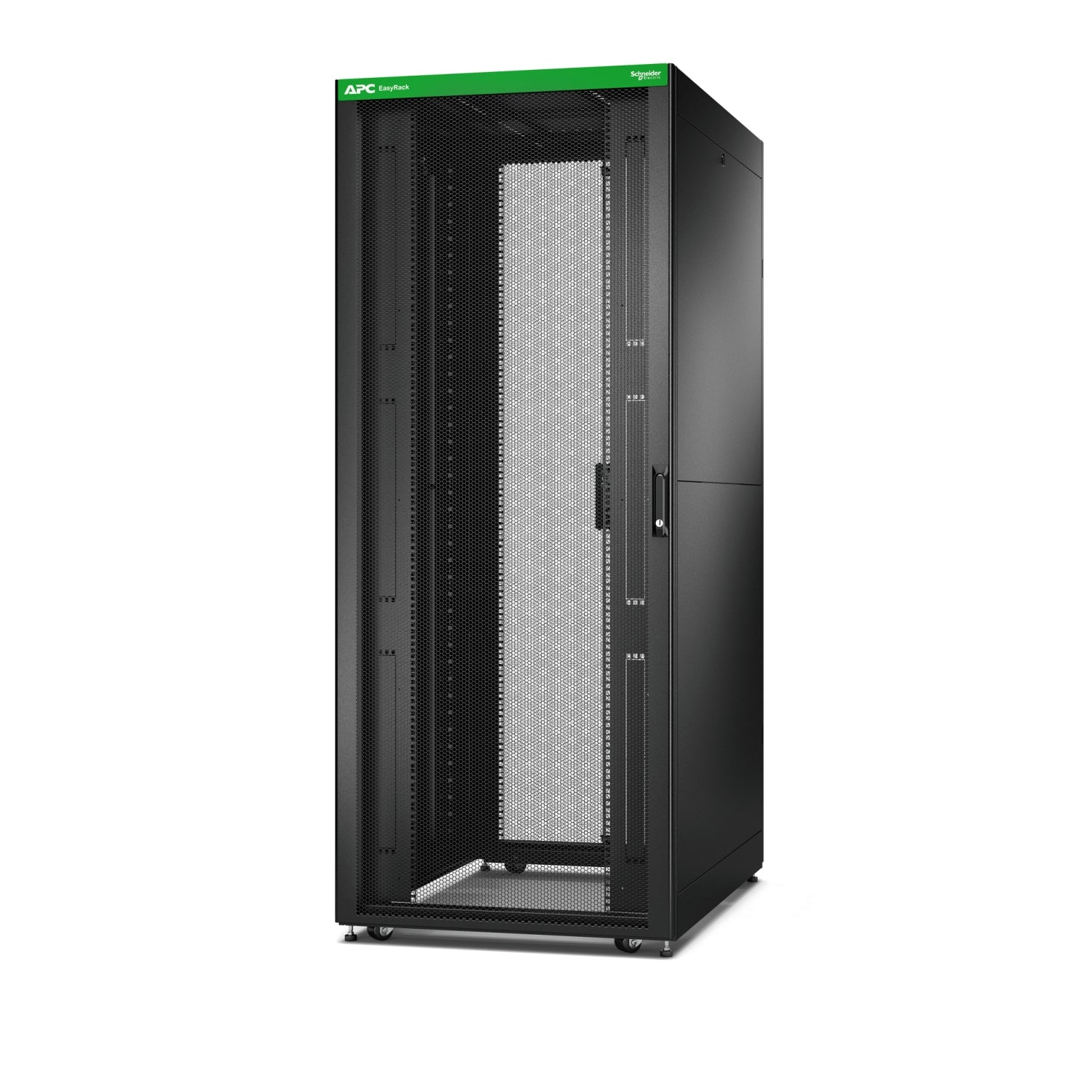

• APC ER8222 Easy Rack 42U black server rack with green Schneider top panel
1 1

APC

APC ER8222 | Easy Rack 42U Rack Cabinet, 800W x 1200D, Black, Castors

APC ER8222 | Easy Rack 42U Rack Cabinet, 800W x 1200D, Black, Castors

Authorised APC Partner

ER8222

In stock:2

$3,423.09 inc. GST
$3,111.90 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Easy Rack ER8222 is a 42U freestanding rack cabinet in black, measuring 1991H x 800W x 1200D mm. It is supplied pre-assembled and includes a roof, blind side panels, castors, levelling feet and 4 brackets, with no bottom panel. Ventilated doors with 81% perforation support airflow for server and networking equipment in datacentre and comms room deployments.

The 800 mm width gives extra room for cable management in dense server and network installations. The multi-functional roof supports cable routing and airflow, rear accessory brackets allow toolless installation, and integrated vertical 1U mounting spaces can be swapped for 1U accessories. The rack is EIA-310E and UL 2416 compliant with integrated electrical grounding.

Features

- Ships pre-assembled, or can be ordered unassembled for tight spaces or storage
- Multi-functional roof for cable management and airflow
- Rear accessory brackets allow toolless installation
- Integrated vertical 1U mounting spaces next to the EIA-310 U-spaces can be swapped for 1U accessories
- 800 mm width provides more cable management room for dense server and network applications
- Ventilated doors with 81% perforation for airflow
- Integrated electrical grounding, UL 2416 certified
- Includes baying hardware, keys, keyed-alike doors and side panels, levelling feet, mounting hardware, pre-installed castors and side panels

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rack capacity: 42U
- Type: Freestanding rack
- Dimensions: 1991 mm (H) x 800 mm (W) x 1200 mm (D)
- Colour: Black
- Net weight: 135 kg
- Maximum weight capacity (static): 1199.75 kg
- Maximum weight capacity (rolling): 599.65 kg
- Mounting rail width: 19 in (482.6 mm)
- Maximum mounting depth: 104.14 cm
- Minimum mounting depth: 24.16 cm
- Side panels included: Yes, blind style
- Key lock: Front door, rear door and side panels
- Includes castors, adjustable levelling feet and 4 brackets
- No bottom panel
- Pre-assembled
- Door perforation: 81%
- Steel gauge: front door 18, rear door 19, post 16, EIA mounting rail 14
- Certification: EIA-310E, UL 2416, UL 60950-1

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What size is the APC ER8222 rack?
A: It is a 42U rack measuring 1991 mm high, 800 mm wide and 1200 mm deep.

Q: Does this rack include a bottom panel?
A: No. This SKU is supplied without a bottom panel. It includes a roof, blind side panels, castors, levelling feet and 4 brackets.

Q: What load can the rack support?
A: Maximum weight capacity is 1199.75 kg static and 599.65 kg rolling.

Q: Does it use a standard 19 inch mounting rail?
A: Yes. It has 19 in (482.6 mm) EIA-310 mounting rails and is EIA-310E compliant.

Q: Is the rack lockable?
A: Yes. The front door, rear door and side panels have key locks, and the doors and side panels are keyed alike.

Q: Is the rack supplied assembled?
A: Yes, it is pre-assembled, with castors and side panels pre-installed.
