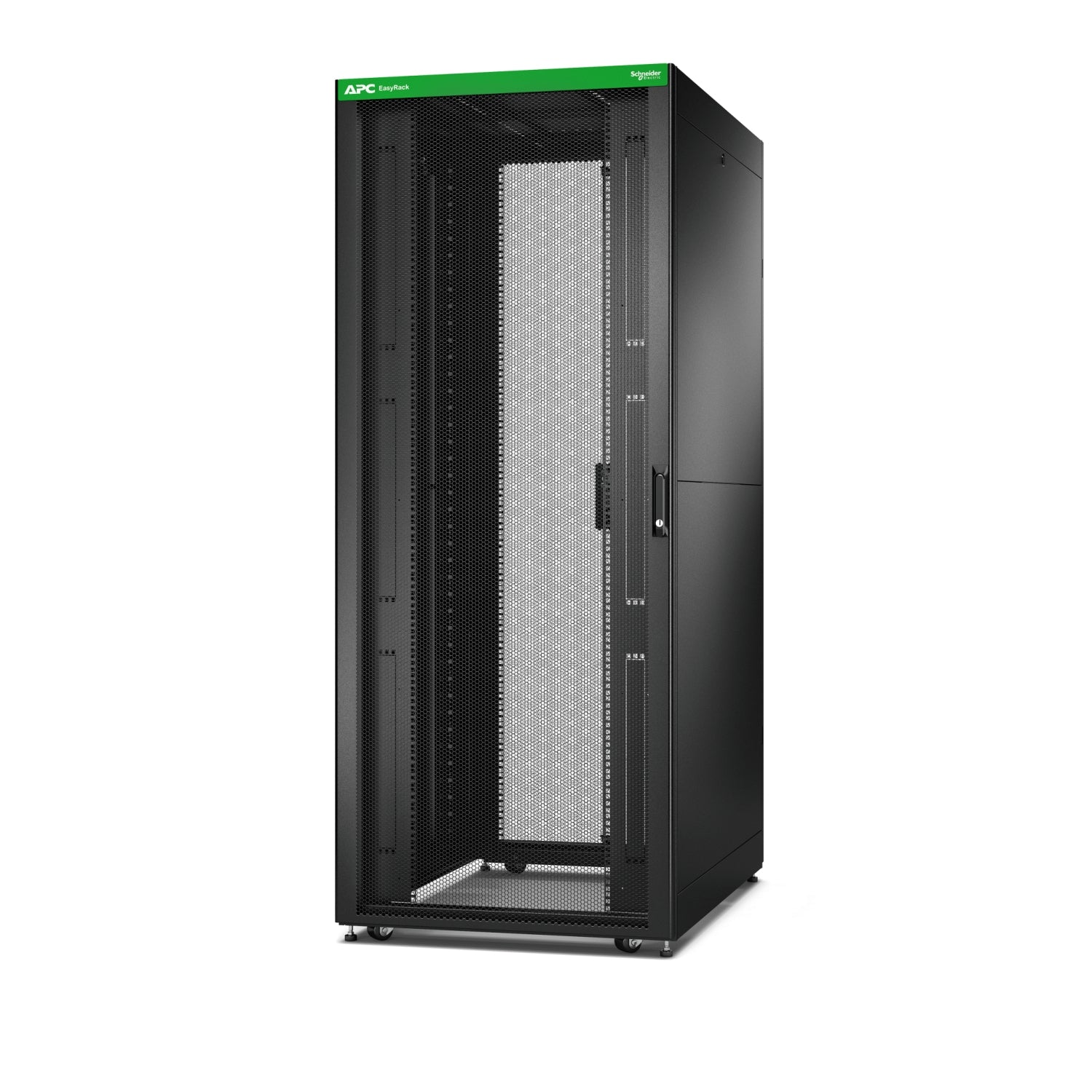

APC ER8212 | Easy Rack 42U Rack Enclosure, 800W x 1100D, Black

APC ER8212 | Easy Rack 42U Rack Enclosure, 800W x 1100D, Black

Authorised APC Partner

ER8212

Stock Status: Enquire

$2,790.59 inc. GST
$2,536.90 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Easy Rack ER8212 is a pre-assembled 42U rack enclosure built to the EIA-310 standard for data centre and networking deployments. It measures 800 mm wide and 1100 mm deep, with a black finish, roof, side panels, castors, levelling feet and 4 PDU mounting brackets. This configuration ships without a bottom panel.

The wide and deep cabinet gives extra room for cable management in dense server and network installations. A multi-functional roof supports cable routing and airflow, ventilated doors with 81% perforation aid cooling, and rear accessory brackets allow toolless installation. The rack is UL 2416 certified with integrated electrical grounding and supports a static load of 1200 kg.

Features

- Pre-assembled EIA-310 standard IT enclosure, supplied assembled or unassembled for tight spaces
- Wide, deep and tall cabinet with extra cable management options for dense server and networking applications
- Multi-functional roof for cable management and airflow
- Rear accessory brackets for toolless installation
- Integrated vertical 1U mounting spaces beside the EIA-310 U-spaces, replaceable with 1U accessories
- UL 2416 certified with integrated electrical grounding
- Ready for high-density cable management
- Includes castors and levelling feet for mobility and stable positioning

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 42U, EIA-310 standard
- Dimensions: 1991 H x 800 W x 1100 D mm
- Colour: Black
- Static load capacity: 1200 kg
- Dynamic load capacity: 600 kg
- Maximum mounting depth: 940 mm
- Minimum mounting depth: 242 mm
- Front door: 18 gauge, rear door: 19 gauge, vertical posts: 16 gauge
- Door perforation: 81%
- Net weight: 131.2 kg
- Approvals: EIA-310E, UL 2416
- Includes roof, side panels, castors, levelling feet, keys, mounting hardware and 4 PDU mounting brackets
- No bottom panel

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What size is the APC ER8212 rack?
A: It is a 42U enclosure measuring 1991 mm high, 800 mm wide and 1100 mm deep.

Q: Does the ER8212 include a bottom panel?
A: No. This configuration ships without a bottom panel. It does include a roof, side panels, castors, levelling feet and 4 PDU mounting brackets.

Q: What weight can the rack support?
A: The static load capacity is 1200 kg and the dynamic load capacity is 600 kg.

Q: Is it compatible with standard 19-inch equipment?
A: Yes. The rack follows the EIA-310 standard for 19-inch mounting, with a mounting depth range of 242 mm to 940 mm.

Q: Does the rack arrive assembled?
A: It is a pre-assembled enclosure and can also be supplied unassembled for installation in tight spaces.

Q: Are the doors ventilated?
A: Yes. The doors have 81% perforation to support airflow for installed equipment.
