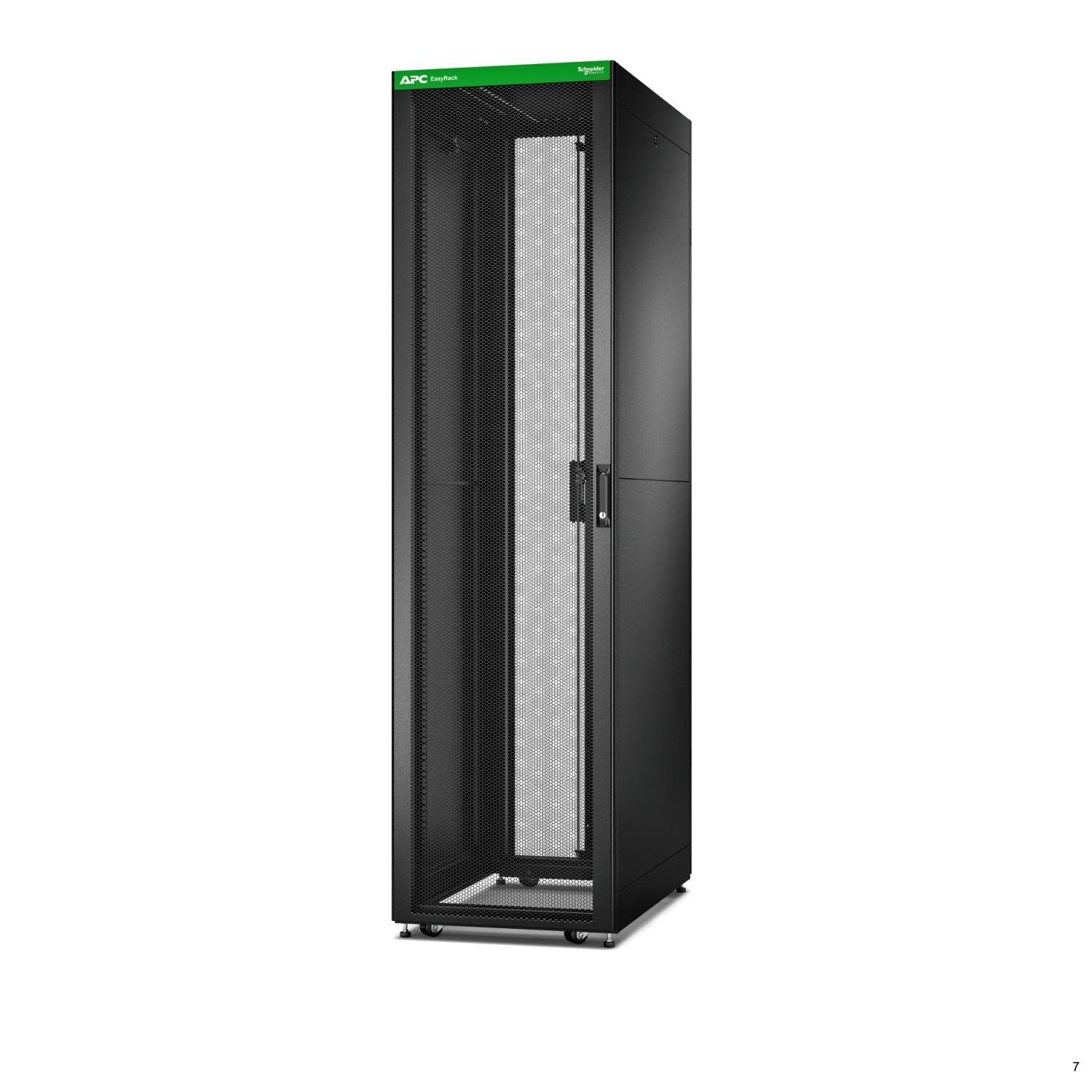

APC ER6802 | Easy Rack 48U Rack Enclosure, 600x1000mm, Black, No Bottom

APC ER6802 | Easy Rack 48U Rack Enclosure, 600x1000mm, Black, No Bottom

Authorised APC Partner

ER6802

Stock Status: Enquire

$2,511.15 inc. GST
$2,282.86 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Easy Rack ER6802 is a pre-assembled 48U rack enclosure built to the EIA-310 19-inch standard, sized 2258H x 600W x 1000D mm in black. It suits networking and data centre deployments where fast installation and maximum U-space per footprint matter, with 6U of extra height over a standard rack. This configuration includes a roof, castors, levelling feet, side panels and 4 PDU mounting brackets, and ships without a bottom panel.

The doors have 81% perforation for ventilation, and the roof, front and rear doors are electrically grounded to the frame. A multi-functional roof supports cable management and airflow, and rear accessory brackets allow toolless installation. The enclosure is compatible with Easy Rack PDUs, cooling and cable management accessories, and is rated for 1200 kg static and 600 kg dynamic load.

Features

- Pre-assembled for faster installation, or can ship unassembled for tight spaces
- 6U extra height to maximise U-space per footprint
- Doors with 81% perforation for ample ventilation
- Integrated electrical grounding of the roof, front and rear doors to the frame
- Multi-functional roof for cable management and airflow
- Rear accessory brackets for toolless installation
- Compatible with Easy Rack PDUs, cooling and cable management accessories
- 19-inch rack mounting compatibility

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rack height: 48U (2258 mm)
- Dimensions: 2258H x 600W x 1000D mm
- Colour: Black
- Standard: EIA-310 19-inch
- Static load rating: 1200 kg
- Dynamic load rating: 600 kg
- Door perforation: 81%
- Roof: Included
- Side panels: Included
- Castors: Included
- Levelling feet: Included
- PDU mounting brackets: 4 included
- Bottom panel: Not included
- Certification: UL 2146

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Does the ER6802 include a bottom panel?
A: No. This configuration ships without a bottom panel. It includes the roof, side panels, castors, levelling feet and 4 PDU mounting brackets.

Q: What load can the ER6802 support?
A: The enclosure has a static load rating of 1200 kg and a dynamic load rating of 600 kg.

Q: Is the ER6802 compatible with standard 19-inch equipment?
A: Yes. It follows the EIA-310 19-inch standard, so standard 19-inch rack-mount equipment is compatible.

Q: Does the rack arrive assembled?
A: The Easy Rack is pre-assembled for faster installation, and can also ship unassembled for tight spaces.

Q: How is airflow handled?
A: The doors have 81% perforation for ventilation, and the multi-functional roof supports cable management and airflow.

Q: Can I fit APC Easy Rack PDUs and accessories?
A: Yes. It is compatible with Easy Rack PDUs, cooling and cable management accessories, and includes 4 PDU mounting brackets.
