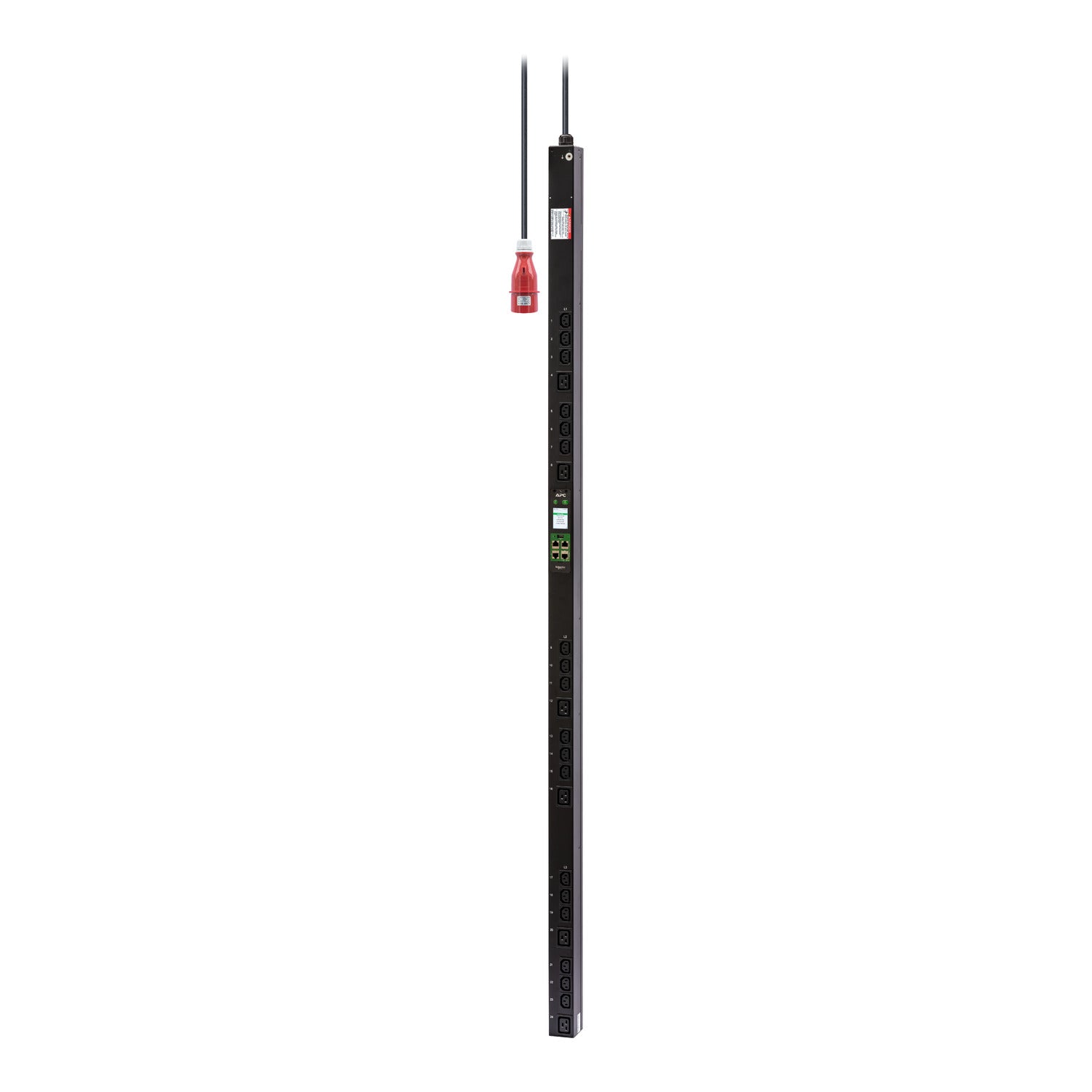

APC EPDU2216MBO | Easy PDU 2G Metered-by-Outlet ZeroU PDU, 3-Phase, 11kW, 16A, 24-Outlet

Name: APC EPDU2216MBO | Easy PDU 2G Metered-by-Outlet ZeroU PDU, 3-Phase, 11kW, 16A, 24-Outlet
Brand: APC
SKU: EPDU2216MBO
Price: 2623.48 AUD
Availability: BackOrder

Authorised APC Partner

SKU:EPDU2216MBO

Stock Status: Enquire

$2,623.48 inc. GST

$2,384.98 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The APC Easy PDU 2G Metered-by-Outlet Zero-U Rack PDU delivers 11kW at 230V over a 3-phase, 16A IEC60309 3P+N+PE input, with 24 outlets — (18) IEC C13 and (6) IEC C19 — making it ideal for high-density data centre and server room deployments where granular power visibility is essential. Per-outlet energy metering at ±1% accuracy enables precise capacity planning, overload alerting, and chargeback reporting without consuming a single rack unit thanks to its vertical Zero-U form factor.

Built on an ultra-lightweight aluminium housing, this second-generation Easy PDU integrates an NMC3 network management card for enhanced cybersecurity, supporting Web, SNMP, and CLI access through APC EcoStruxure IT. Flash-upgradeable firmware, an onboard digital display for local monitoring, and an external environmental sensor port (sensor sold separately) round out a comprehensive, future-ready power management solution.

Features

- Per-outlet energy metering at ±1% accuracy for granular capacity planning and chargeback reporting
- Integrated NMC3 network management card with enhanced cybersecurity, secured interfaces, and updated password policy
- EcoStruxure IT integration for centralised monitoring and management via Web, SNMP, and CLI
- Zero-U vertical rack mounting — no rack unit space consumed, ideal for high-density environments
- Ultra-lightweight aluminium housing — up to 50% weight reduction versus previous generation
- Local digital display module for on-unit current and power monitoring
- Overload alerting to warn of circuits approaching capacity thresholds
- External environmental sensor port for optional temperature and humidity monitoring
- Flash-upgradeable firmware via network download for ongoing enhancements and security patches
- 24 outlets — (18) IEC C13 and (6) IEC C19 — supporting mixed server and high-draw device connections

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Power Capacity: 11kW
- Input Voltage: 230V
- Input Current: 16A (3-Phase)
- Input Connector: IEC60309 3P+N+PE
- Phase Configuration: 3-Phase
- Total Outlets: 24 — (18) IEC C13 + (6) IEC C19
- Form Factor: Zero-U (0U), Vertical Rack Mount
- Metering Type: Metered-by-Outlet (no switching)
- Metering Accuracy: ±1%
- Network Management: NMC3 (built-in)
- Management Interfaces: Web, SNMP, CLI
- Environmental Sensor Port: Yes (sensor sold separately)
- Housing Material: Ultra-lightweight aluminium
- Firmware: Flash-upgradeable via network

FAQs

Q: What is the difference between a Metered-by-Outlet PDU and a Metered PDU?
A: A standard Metered PDU measures total input current at the inlet level only, while a Metered-by-Outlet PDU like the EPDU2216MBO measures energy consumption individually at each outlet. This allows data centre managers to track power usage per server or device, enabling accurate capacity planning, chargeback billing, and early overload detection at the outlet level.

Q: Does the EPDU2216MBO include remote switching to turn outlets on and off?
A: No. The EPDU2216MBO is a metered-by-outlet PDU without switching capability. It provides per-outlet monitoring and metering but does not support remote outlet switching. If remote on/off control per outlet is required, consider APC's Switched or Metered-by-Outlet + Switched PDU variants.

Q: What network management capabilities does this PDU support?
A: The EPDU2216MBO includes an integrated NMC3 (Network Management Card 3), which provides Web interface, SNMP, and Command Line Interface (CLI) access. It integrates with APC EcoStruxure IT for centralised monitoring, and the NMC3 features enhanced cybersecurity including secured interfaces and a modified password policy compared to previous-generation NMC cards.

Q: Can environmental sensors be connected to monitor temperature and humidity?
A: Yes. The EPDU2216MBO includes an external environmental monitoring port that supports APC temperature and humidity sensors (sold separately). This allows rack-level environmental data to be monitored alongside power metrics through the NMC3 management interface and EcoStruxure IT platform.

Q: Is this PDU suitable for 3-phase power installations in Australian data centres?
A: Yes. The EPDU2216MBO is designed for 3-phase 230V environments with a 16A IEC60309 3P+N+PE inlet, which is a standard industrial connector widely used in Australian enterprise and data centre power infrastructure. The Zero-U vertical form factor mounts inside standard racks without occupying rack unit space, making it well-suited for high-density Australian data centre deployments.

Q: Can I purchase the APC EPDU2216MBO in Australia through IP Trading?
A: Yes. The APC Easy PDU 2G EPDU2216MBO is available through iptrading.com.au, an Australian B2B IT hardware reseller specialising in enterprise power and networking solutions. Contact IP Trading for pricing, availability, and volume purchasing options.
