APC E3MOPT011 | Easy UPS 3M IP30 Upgrade Kit, 200kVA 400V, External Batteries

APC E3MOPT011 | Easy UPS 3M IP30 Upgrade Kit, 200kVA 400V, External Batteries

E3MOPT011

Stock Status: Enquire

$252.51 inc. GST
$229.55 ex. GST
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

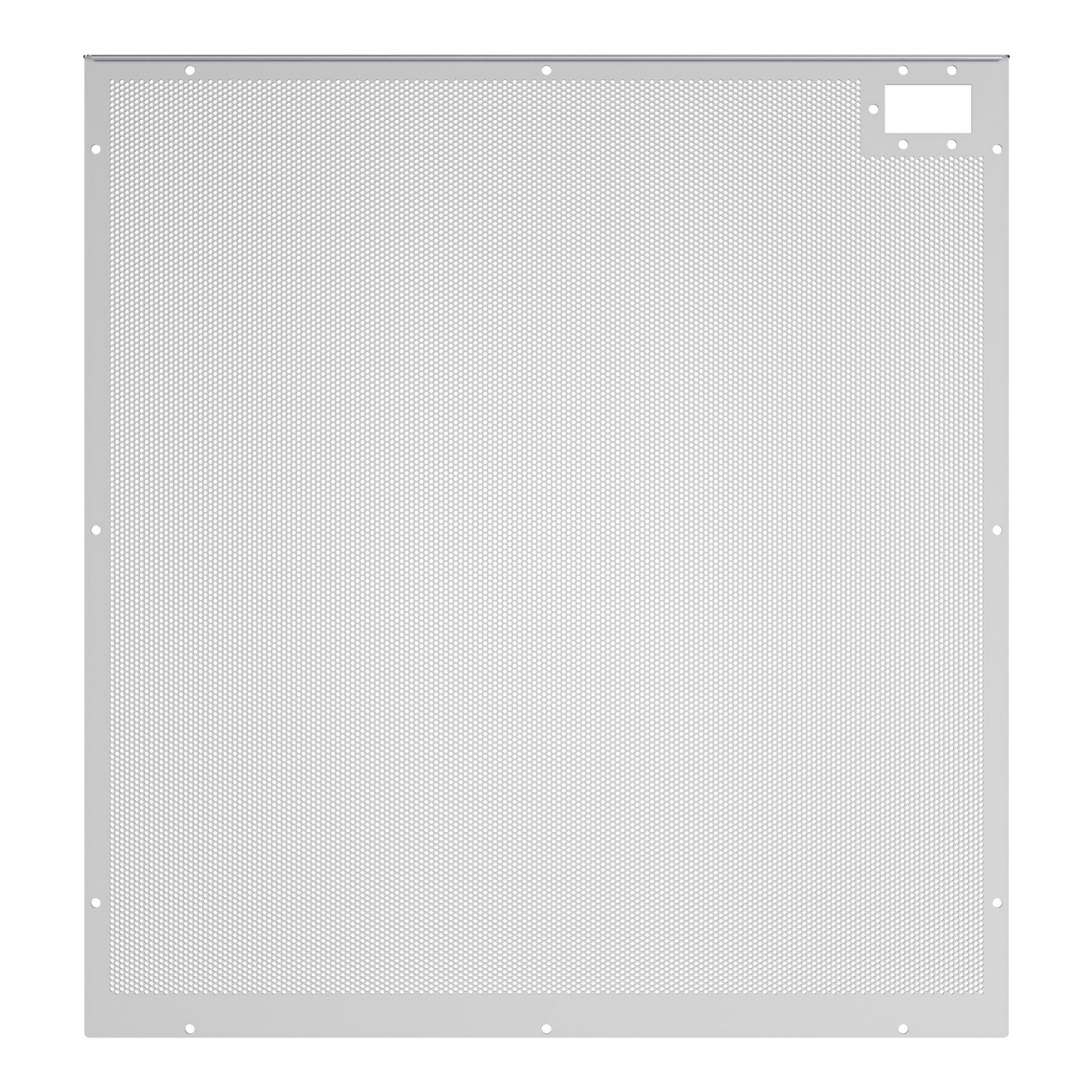

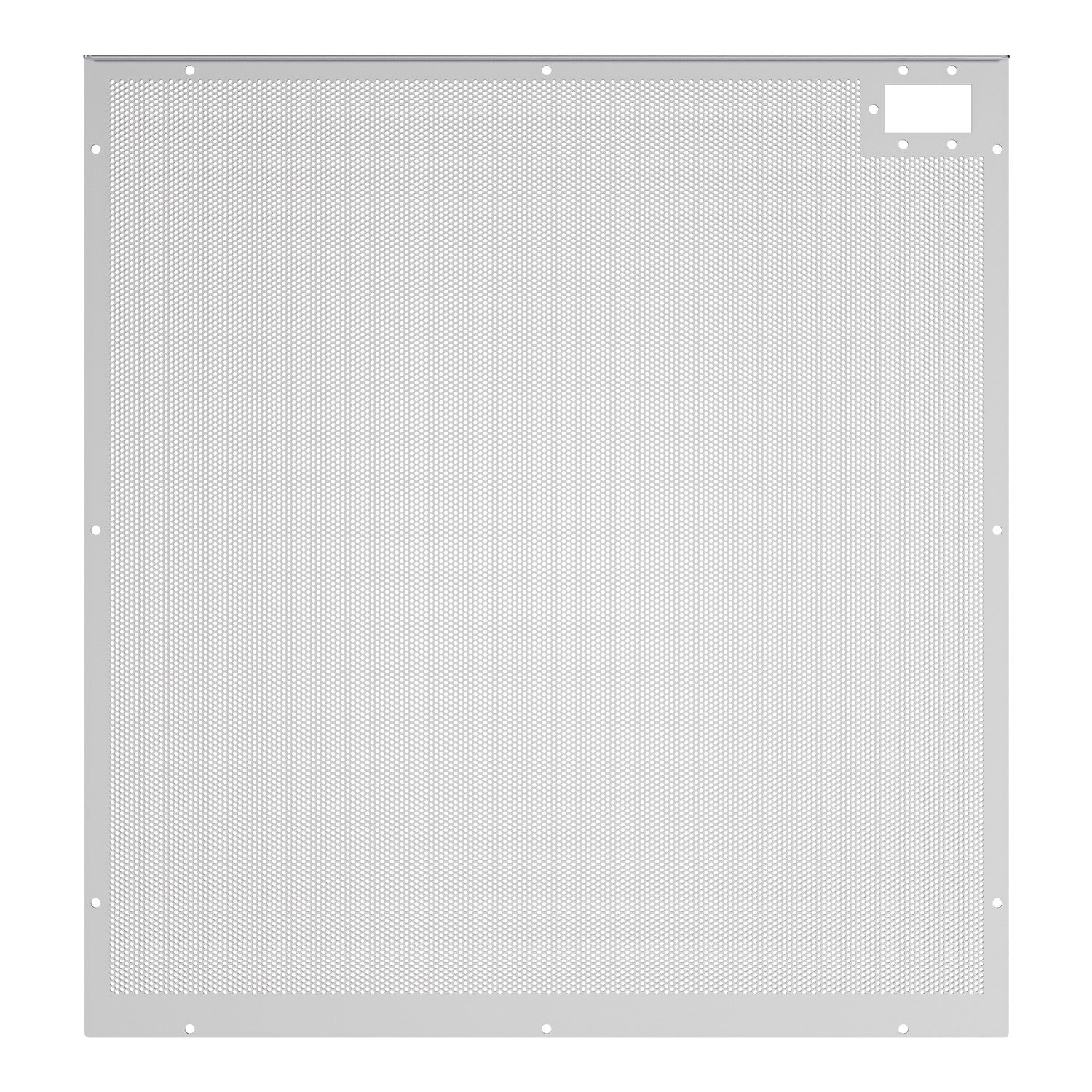

The APC Easy UPS 3M IP30 Kit upgrades the Easy UPS 3M 200kVA 400V UPS (external battery configuration) from IP20 to IP30 ingress protection, enabling deployment in environments where protection against solid objects greater than 2.5mm — such as tools or wires — is required. The kit includes a custom rear panel engineered for seamless integration with the 200kVA external battery variant, supporting full nominal load at ambient temperatures up to 30°C with the kit installed.

This option kit is part of APC's broader range of IP30 upgrade kits spanning the 60kVA to 200kVA Easy UPS 3M line, making it a straightforward compliance solution for facilities requiring enhanced enclosure ratings. Note that with the IP30 kit installed, power output derades to 85% of nominal at 40°C ambient. Available now through iptrading.com.au — your local source for enterprise-grade networking solutions.

Features

- Upgrades Easy UPS 3M 200kVA 400V (external battery config) from IP20 to IP30 protection
- Custom rear panel included for seamless, integrated installation
- Enables deployment in environments with IP30 ingress protection requirements
- Supports full nominal load at up to 30°C ambient after installation
- Part of a complete IP30 kit range covering Easy UPS 3M models from 60kVA to 200kVA
- Designed exclusively for external battery UPS configurations

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Compatible UPS: APC Easy UPS 3M 200kVA 400V (external battery configuration)
- IP Protection Level Achieved: IP30
- Protection Against: Solid objects greater than 2.5mm (e.g. tools, wires)
- Full nominal load supported at up to 30°C ambient with kit installed
- Power derades to 85% of nominal at 40°C ambient with kit installed
- Includes: Custom rear panel
- Upgrades from: IP20 to IP30

FAQs

Q: What does the E3MOPT011 IP30 kit actually include?
A: The kit includes a custom rear panel that, when installed on the APC Easy UPS 3M 200kVA 400V (external battery configuration), upgrades the unit's ingress protection rating from IP20 to IP30.

Q: Which UPS model is this kit compatible with?
A: The E3MOPT011 is specifically designed for the APC Easy UPS 3M 200kVA 400V configured for external batteries. It is not compatible with internal battery variants or other kVA ratings — APC offers separate IP30 kits for 60kVA to 160kVA Easy UPS 3M models.

Q: What does IP30 protection mean in practice?
A: IP30 protection guards against ingress of solid objects greater than 2.5mm in diameter, such as tools or wires. It does not provide protection against liquids. This rating is suitable for many indoor commercial and industrial environments with higher cleanliness requirements.

Q: Does installing the IP30 kit affect the UPS's power output?
A: At ambient temperatures up to 30°C, the UPS continues to operate at full nominal load with the IP30 kit installed. At 40°C ambient, the power output derades to 85% of nominal capacity.

Q: Can I purchase this kit in Australia through IP Trading?
A: Yes. The APC E3MOPT011 Easy UPS 3M IP30 Kit is available through iptrading.com.au. IP Trading is an Australian B2B IT hardware reseller supplying enterprise power and UPS accessories with local support.

Q: Is any special installation expertise required to fit this kit?
A: APC provides a dedicated installation guide (document 990-200001) covering IP30, IP40, and IPX2 kits for the Easy UPS 3M range. Installation should be performed by a qualified technician following the published APC installation instructions.
