APC E3MOPT010 | Easy UPS 3M IP30 Kit, 120–160 kVA 400V, External Batteries

APC E3MOPT010 | Easy UPS 3M IP30 Kit, 120–160 kVA 400V, External Batteries

E3MOPT010

Stock Status: Enquire

$240.65 inc. GST
$218.77 ex. GST
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The APC Easy UPS 3M IP30 Option Kit upgrades your 120–160 kVA 400V Easy UPS 3M (external battery configuration) to IP30 ingress protection level, guarding internal components against solid objects greater than 2.5 mm such as tools and wires. The kit includes a custom rear panel for seamless integration and supports full-load operation at up to 30°C, with an 85% nominal power derating at 40°C — making it suitable for environments where a baseline level of physical ingress protection is required.

Designed specifically for the 120–160 kVA 400V external battery variant of the Easy UPS 3M range, this kit is part of APC's broader family of IP protection options (IP30, IPX2, IP40) for the platform. It allows organisations to meet site or compliance requirements without replacing existing infrastructure. Buy today from iptrading.com.au — fast shipping and expert service across Australia.

Features

- Upgrades Easy UPS 3M to IP30 ingress protection level
- Protects against solid object ingress greater than 2.5 mm (tools, wires, etc.)

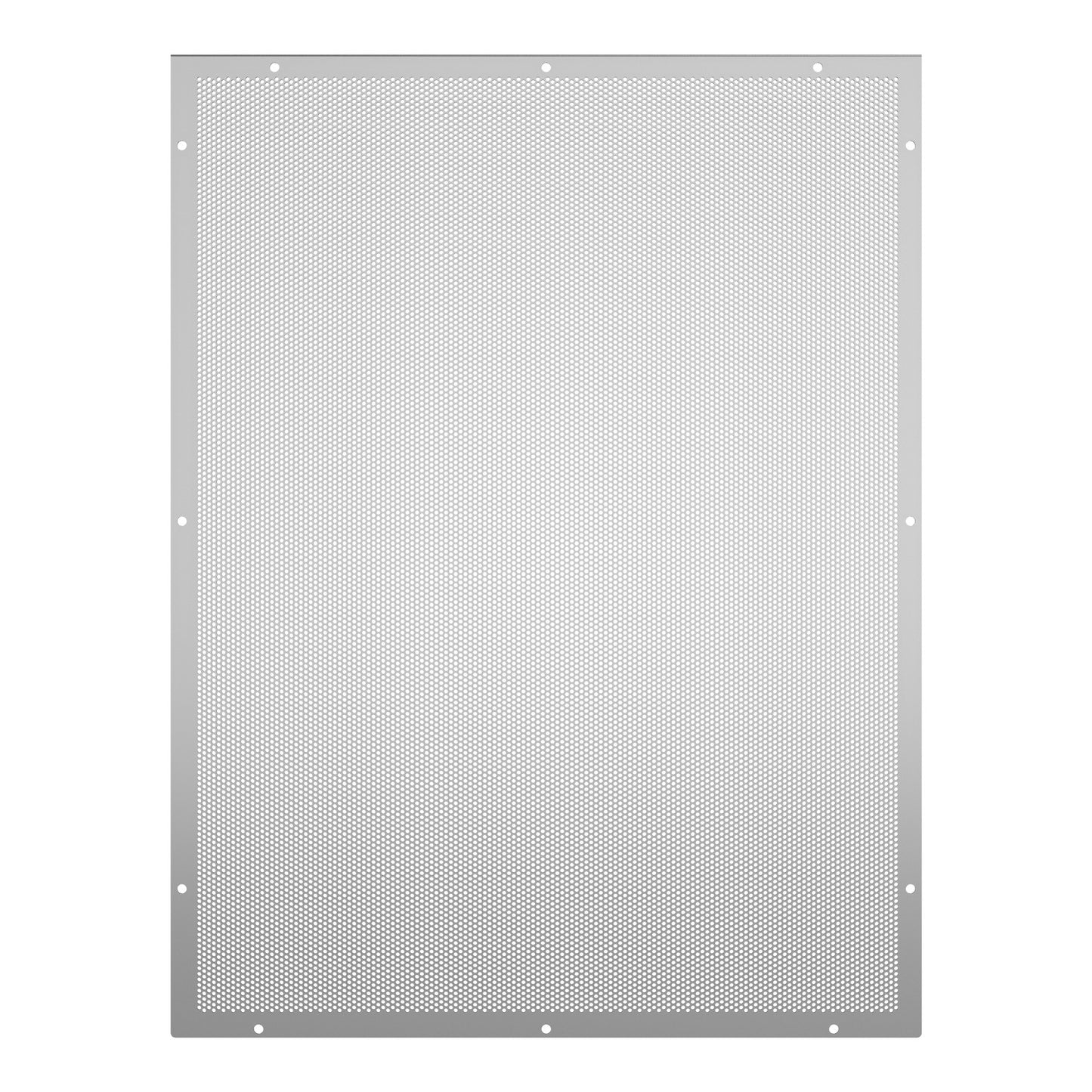

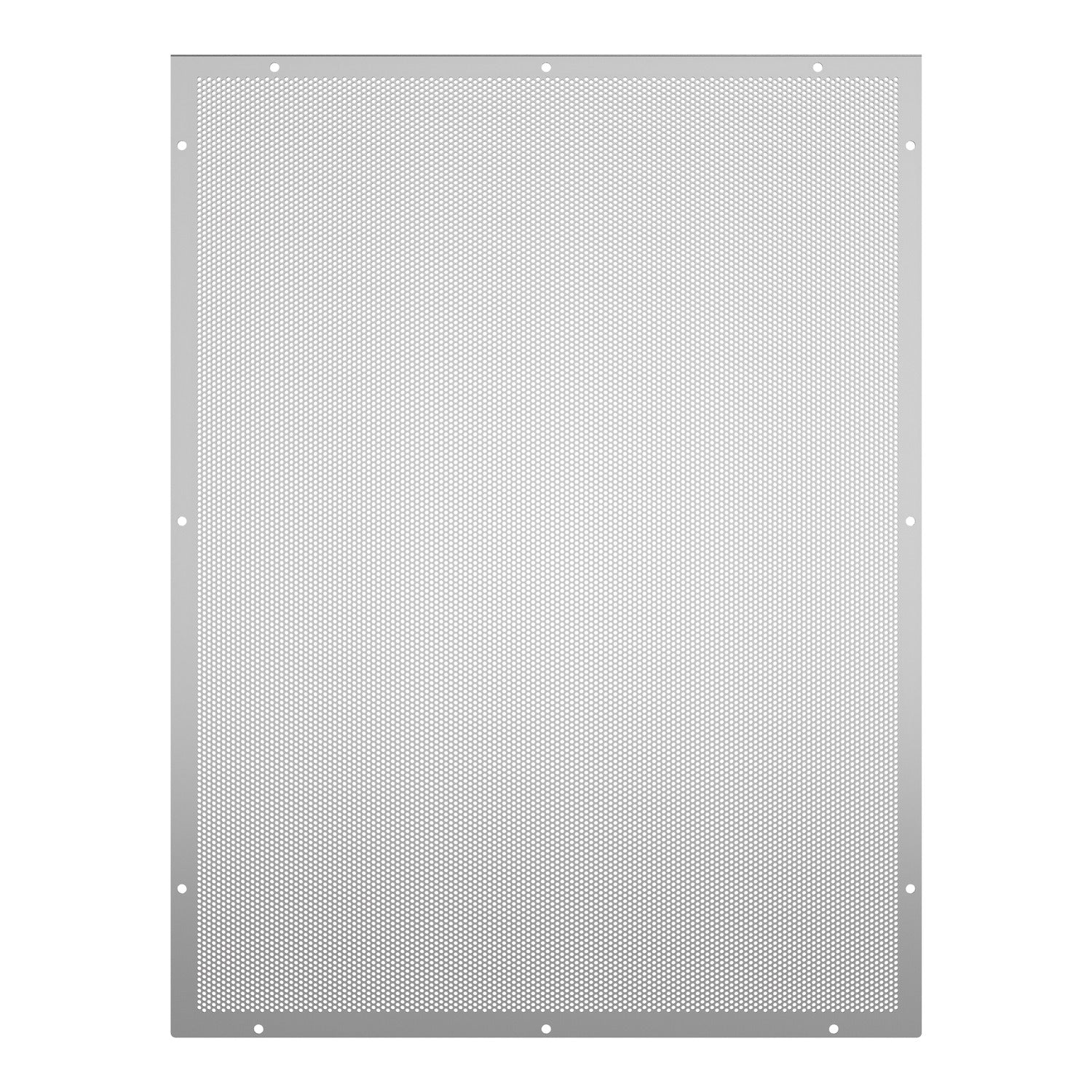

- Custom rear panel included for seamless, integrated fitment
- Supports full-load operation at 30°C with no power derating
- 85% nominal power derating applies at 40°C ambient
- Designed exclusively for 120–160 kVA, 400V external battery UPS configurations
- Part of a broader family of IP protection kits (IP30, IPX2, IP40) for the Easy UPS 3M platform

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Compatible UPS: APC Easy UPS 3M 120–160 kVA, 400V (external battery models)
- Ingress Protection Level Achieved: IP30
- Protection: Against solid objects greater than 2.5 mm (e.g. tools, wires)
- Includes: Custom rear panel
- Full load operation: Up to 30°C (no derating)
- Power derating at 40°C: 85% of nominal rating

FAQs

Q: What does the E3MOPT010 IP30 kit do for my Easy UPS 3M?
A: It upgrades the ingress protection level of your Easy UPS 3M to IP30, providing protection against solid objects larger than 2.5 mm such as tools or wires entering the unit. The kit includes a custom rear panel that integrates with the existing UPS chassis.

Q: Which Easy UPS 3M models is the E3MOPT010 compatible with?
A: This kit is designed specifically for APC Easy UPS 3M units rated at 120–160 kVA, 400V, in the external battery configuration. It is not intended for internal battery variants or other kVA ratings in the Easy UPS 3M range.

Q: Does the IP30 kit affect the UPS's power output or operating temperature range?
A: Full rated load operation is supported at ambient temperatures up to 30°C with no derating. At 40°C, the UPS will operate at 85% of its nominal power rating when the IP30 kit is fitted.

Q: Are there other IP protection kits available for the Easy UPS 3M range?
A: Yes. APC offers a family of IP protection option kits for the Easy UPS 3M platform, including IP30, IPX2 (drip-proof), and IP40 variants, allowing customers to select the ingress protection level appropriate to their environment.

Q: Can I purchase the E3MOPT010 in Australia, and how quickly can I receive it?
A: Yes, the APC E3MOPT010 is available through iptrading.com.au. IP Trading provides fast shipping and expert support across Australia for APC UPS accessories and option kits.

Q: Do I need a professional to install the IP30 kit on my Easy UPS 3M?
A: APC provides a dedicated installation guide (document 990-200001) for the IP30, IPX2, and IP40 kits. For a 120–160 kVA three-phase UPS, installation by a qualified electrical professional is strongly recommended to ensure safe and compliant fitment.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
