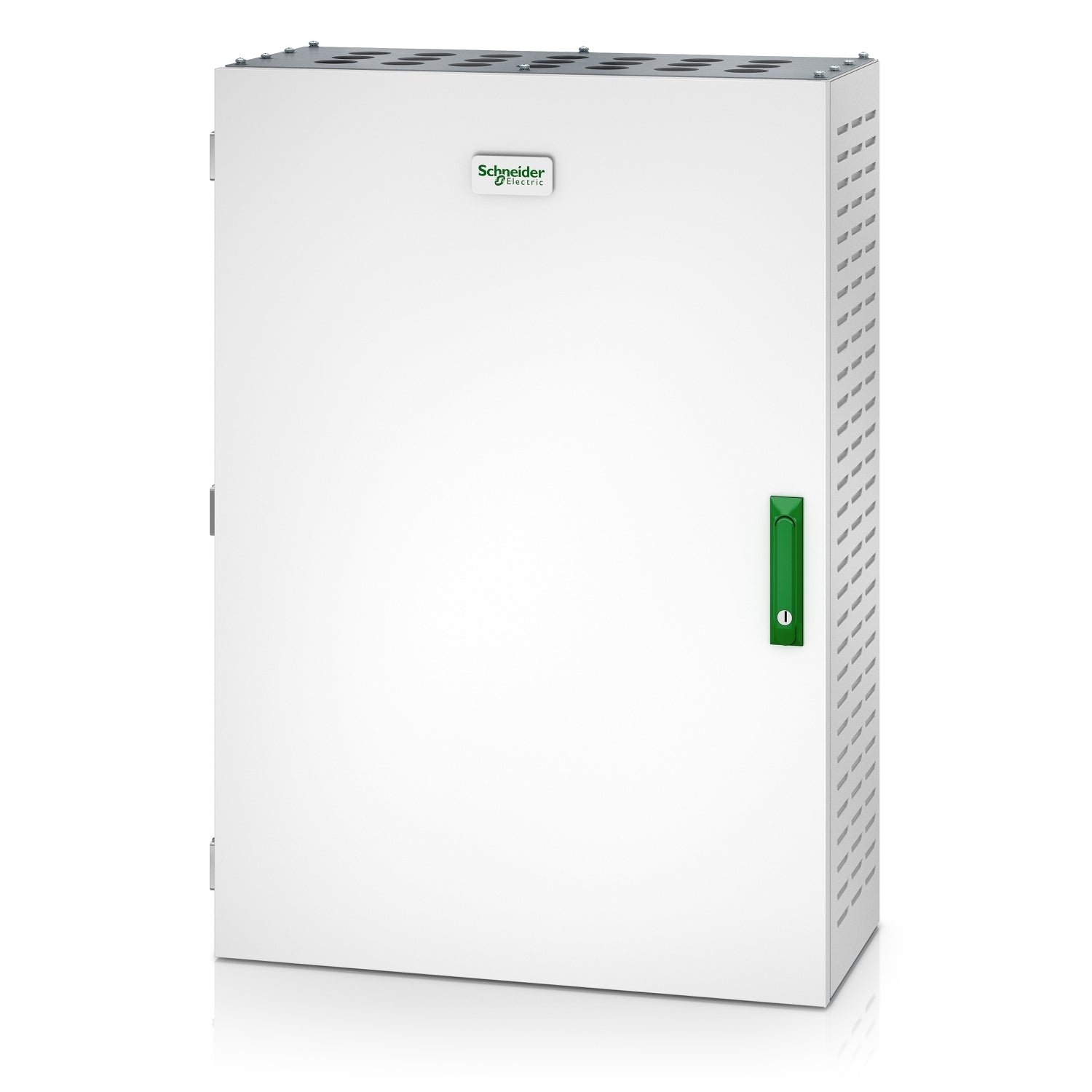

• White Schneider Electric APC E3MBPAR60K200H parallel maintenance bypass panel with green handle and perforated side panels
1 1

APC

APC E3MBPAR60K200H | Parallel Maintenance Bypass Panel, 10-200kVA, 400V, Wall-Mount

APC E3MBPAR60K200H | Parallel Maintenance Bypass Panel, 10-200kVA, 400V, Wall-Mount

E3MBPAR60K200H

Stock Status: Enquire

$4,723.38 inc. GST
$4,293.98 ex. GST
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The APC Parallel Maintenance Bypass Panel for Easy UPS 3S and 3M series delivers safe, uninterrupted maintenance capability for parallel UPS configurations rated from 10 to 200kVA at 400V. Wall-mounted and designed for flexible installation, it allows technicians to service or replace UPS units without interrupting power to critical loads — essential for data centres, healthcare facilities, and enterprise environments running 3-phase parallel UPS deployments.

This panel supports both the Easy UPS 3S and 3M product families and is compatible with the Easy UPS 3M Parallel Kit with 15m cable (E3MOPT012). Top and bottom gland plates provide flexible cable entry to suit varying installation layouts. At 700mm x 320mm x 1000mm, the wall-mount form factor minimises floor space requirements while keeping bypass switching accessible. Contact iptrading.com.au — your local source for enterprise-grade networking solutions.

Features

- Enables parallel maintenance bypass for APC Easy UPS 3S and 3M series UPS systems
- Allows safe UPS servicing and maintenance without interrupting power to connected loads
- Supports parallel UPS configurations from 10kVA to 200kVA at 400V (3-phase)
- Wall-mount design minimises floor space requirements and suits flexible installation scenarios
- Top and bottom gland plates for versatile cable entry and routing
- Compatible with Easy UPS 3M Parallel Kit with 15m cable (E3MOPT012)

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Compatible UPS Series: APC Easy UPS 3S and Easy UPS 3M
- Input/Output Voltage: 400V (3-phase)
- Power Range: 10kVA – 200kVA
- Mounting: Wall-mount
- Dimensions (W x D x H): 700mm x 320mm x 1000mm
- Cable Entry: Top and bottom gland plates
- Colour: White
- EAN/GTIN: 0731304346814

FAQs

Q: What UPS systems is the E3MBPAR60K200H compatible with?
A: This parallel maintenance bypass panel is designed specifically for use with APC Easy UPS 3S and Easy UPS 3M series UPS systems configured in parallel, supporting loads from 10kVA up to 200kVA at 400V (3-phase).

Q: Can I service my UPS without powering down connected equipment?
A: Yes. The parallel maintenance bypass panel allows your UPS units to be safely maintained, serviced, or replaced without interrupting power to the critical load — a key requirement for high-availability environments.

Q: Is this panel wall-mounted or floor-standing?
A: The E3MBPAR60K200H is a wall-mount unit measuring 700mm x 320mm x 1000mm (W x D x H), making it suitable for installations where floor space is limited.

Q: Does this panel work with the Easy UPS 3M Parallel Kit?
A: Yes. It is compatible with the APC Easy UPS 3M Parallel Kit with 15m cable (E3MOPT012), enabling straightforward integration into parallel UPS deployments.

Q: How does cable routing work with this bypass panel?
A: The panel features both top and bottom gland plates, providing flexible cable entry options to accommodate different site layouts and conduit routing requirements.

Q: Can I purchase the APC E3MBPAR60K200H in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) stocks and supplies APC power infrastructure products including this parallel maintenance bypass panel, with local support for Australian enterprise and data centre customers.
