• APC AR7261 rack accessory top panel with black matte no step logo
1 1

APC

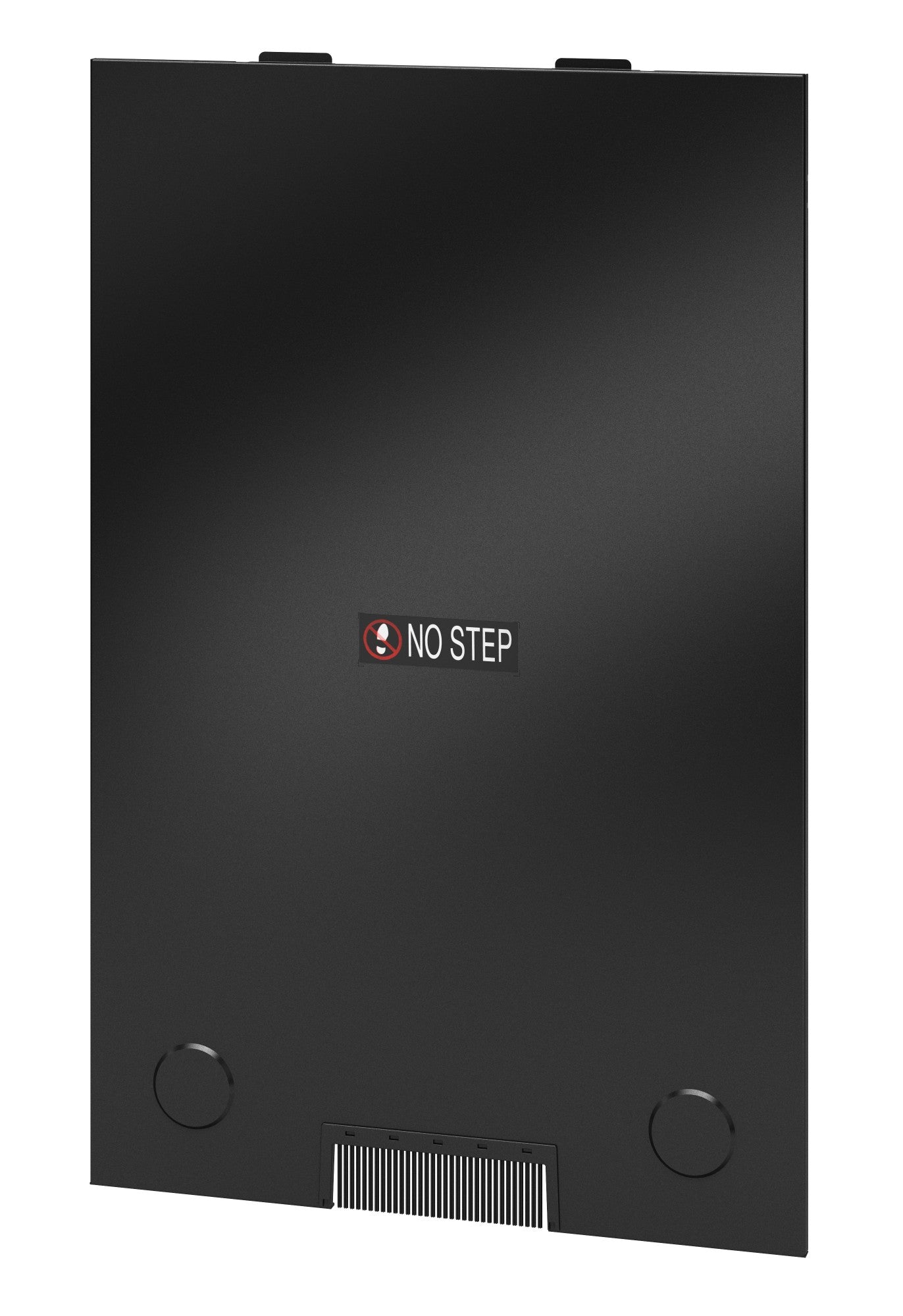

APC AR7261 | NetShelter SX Rack Roof Panel, 12U/18U, 1070mm, Black

APC AR7261 | NetShelter SX Rack Roof Panel, 12U/18U, 1070mm, Black

Authorised APC Partner

AR7261

Stock Status: Enquire

$545.47 inc. GST
$495.88 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AR7261 is a black NetShelter SX rack roof panel (top panel) designed for 12U and 18U enclosures that are 1070mm deep. It completes or replaces the top of an existing NetShelter SX rack, and can be added to an installed enclosure if requirements change.

The panel ships with grommets for cable access, mounting hardware and an installation guide, so it can be fitted without sourcing extra parts. It is a good match for server room and network cabinet deployments that need a finished top and managed cable entry.

Features

- Rack system component that can be added to existing NetShelter SX racks if requirements change
- Includes grommets for cable access
- Includes mounting hardware and installation guide
- Black finish to match NetShelter SX enclosures

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Part number: AR7261
- Product type: Rack roof panel (top panel)
- Compatible with NetShelter SX 12U/18U enclosures, 1070mm deep
- Colour: Black
- Dimensions (approx.): 670 mm W x 1010 mm D x 120 mm H
- Weight: approx. 9 kg (19.84 lb)
- Package contents: roof, grommets, installation guide, mounting hardware
- RoHS compliant, REACH compliant, mercury free

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Which enclosures is the APC AR7261 roof compatible with?
A: It is designed for NetShelter SX 12U and 18U enclosures that are 1070mm deep.

Q: Can the AR7261 be added to an existing rack?
A: Yes. It is a rack system component that can be added to an existing NetShelter SX rack if your requirements change.

Q: Does the AR7261 include cable access?
A: Yes. The roof includes grommets for cable access.

Q: What is included in the box?
A: The package contains the roof panel, grommets, mounting hardware and an installation guide.

Q: What colour is the AR7261?
A: It is black.

Q: What are the approximate dimensions and weight?
A: Approximately 670 mm wide x 1010 mm deep x 120 mm high, and about 9 kg.
