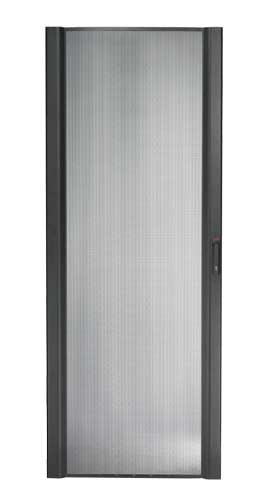

• APC AR7050A rack accessory with modern black-framed sliding glass door, brushed metallic finish
1 1

APC

APC AR7050A | NetShelter SX 42U 750mm Wide Perforated Curved Door, Black

APC AR7050A | NetShelter SX 42U 750mm Wide Perforated Curved Door, Black

Authorised APC Partner

AR7050A

Stock Status: Enquire

$851.22 inc. GST
$773.84 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AR7050A is a black perforated curved front door for NetShelter SX 42U, 750mm wide enclosures. The fully perforated design delivers ample airflow for servers and networking equipment, while the key-lockable door helps prevent unwanted access to rack-mounted hardware.

This door is an add-on component that can be fitted to an existing NetShelter SX rack if your requirements change. It supports top-to-bottom airflow to help maintain proper rack temperatures, and the kit includes the door handle, mounting hardware, installation guide and keys.

Features

- Fully perforated door gives ample airflow for servers and networking equipment
- Key-lockable door prevents unwanted access
- Promotes top-to-bottom airflow to help maintain proper rack temperatures
- Can be added to existing racks if requirements change
- Air Distribution and Air Removal Units are available for higher heat density applications

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Model: AR7050A
- Fits NetShelter SX 42U, 750mm wide enclosures
- Colour: Black
- Perforated curved door design
- Door ventilation exceeds 830 in2 (5355 cm2)
- Front door open area of 844 in2
- Width approx. 750mm (29.5 in)
- Height approx. 75.4 in
- Depth approx. 1.4 in
- Includes door handle, door mounting hardware, installation guide and key(s)

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Which enclosures does the APC AR7050A fit?
A: It is designed for NetShelter SX 42U enclosures that are 750mm wide.

Q: Is the door lockable?
A: Yes. The door is key-lockable, and keys are included with the door.

Q: What is included with the AR7050A?
A: The kit includes the door handle, door mounting hardware, an installation guide and key(s).

Q: Does the perforated design help with cooling?
A: Yes. The fully perforated curved door provides ventilation exceeding 830 in2 (5355 cm2) and promotes top-to-bottom airflow for servers and networking equipment.

Q: Can I add this door to an existing rack?
A: Yes. It is an add-on component that can be fitted to an existing compatible NetShelter SX rack if your requirements change.

Q: What can I use for higher heat density applications?
A: For higher heat density applications, Air Distribution and Air Removal Units are available to complement the perforated door.
