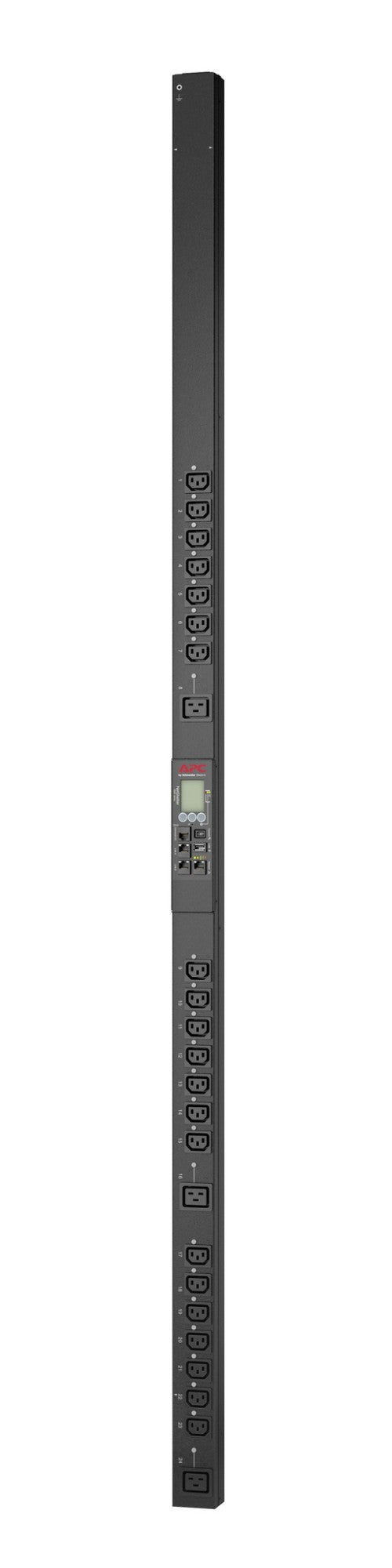

APC APDU9959EU3 | NetShelter Rack PDU 9000 Switched ZeroU, 16A, 21x C13, 3x C19

APC APDU9959EU3 | NetShelter Rack PDU 9000 Switched ZeroU, 16A, 21x C13, 3x C19

Authorised APC Partner

APDU9959EU3

In stock:53

$2,351.64 inc. GST
$2,137.85 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Rack PDU 9000 APDU9959EU3 is a single-phase switched ZeroU (0U) vertical rack PDU for 230V, 16A feeds, delivering 3.7kW across 21 IEC C13 and 3 IEC C19 outlets. Remote outlet-level switching and power metering let data centre and server room teams control and monitor every connected device from the network, while the IEC 60309 16A locking input cord makes installation straightforward.

The vertical ZeroU design mounts in the rack side space to preserve rack units and keep cabling tidy. Outlet sequencing and grouping help reduce inrush current and avoid circuit overload, and 1% metering accuracy supports capacity planning and usage-based billing. Management is available via web, SNMP and Telnet over a 10/100/1000 Ethernet interface, with an LCD display for local readout.

Features

- Remote outlet-level switching and real-time power monitoring
- Outlet sequencing and grouping to reduce inrush current and avoid circuit overload
- 1% metering accuracy (IEC 62053-21 class 1) for usage-based billing and capacity planning
- ZeroU design saves rack space and allows efficient cable management
- Locking receptacles and cord retention bracket
- Alarm thresholds for load monitoring

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 21 x IEC 60320 C13 outlets and 3 x IEC 60320 C19 outlets (24 total)
- Input: IEC 60309 16A 2P+E plug with locking input power cord (approx. 3 m)
- Nominal input and output voltage: 230V AC (input range 220-240V AC), 50/60 Hz
- Maximum input current: 16A
- Load capacity: 3700VA / 3.7kW
- Type: Switched, single-phase
- Form factor: ZeroU (0U) vertical mount, black
- Management: Web, SNMP, Telnet; 10/100/1000 Ethernet; LCD display
- Dimensions: approx. 1794 mm (H) x 55 mm (W) x 46 mm (D)
- Weight: approx. 5.61 kg
- Certifications: EAC, FCC Part 15 Class A, ICES-003, RCM, VDE, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3
- Includes installation guide, locking input power cord, rack mounting brackets and safety guide

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of input plug does the APDU9959EU3 use?
A: It has an IEC 60309 16A 2P+E plug on a locking input power cord of approximately 3 m, for 230V single-phase feeds.

Q: How many outlets does it provide and of what type?
A: It provides 24 outlets in total: 21 x IEC 60320 C13 and 3 x IEC 60320 C19.

Q: Can individual outlets be switched on and off remotely?
A: Yes. This is a switched PDU, so each outlet can be controlled remotely, and outlet sequencing helps reduce inrush current at start-up.

Q: How is the PDU managed?
A: It supports web, SNMP and Telnet management over a 10/100/1000 Ethernet interface, and has an LCD display for local readout.

Q: What is the maximum load this PDU can supply?
A: It supports a maximum input current of 16A at 230V, for a load capacity of 3700VA / 3.7kW.

Q: How is it mounted in the rack?
A: It is a ZeroU (0U) vertical PDU that mounts in the side space of a rack, saving rack units. Rack mounting brackets are included.
