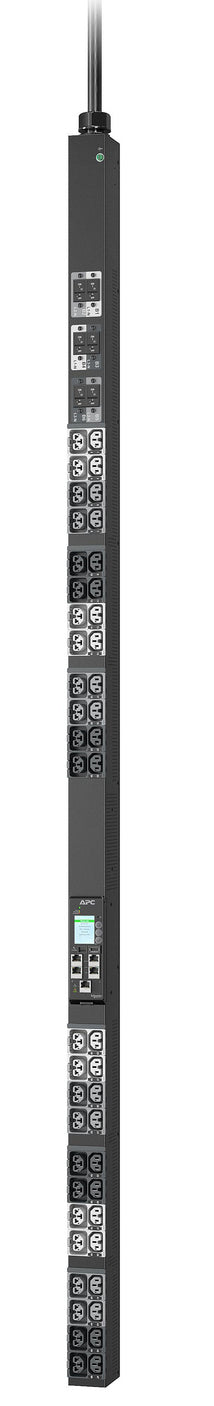

APC APDU11350SW | NetShelter Advanced Switched Rack PDU, 0U, 3-Phase, 17.3kW, 48 Outlet

APC APDU11350SW | NetShelter Advanced Switched Rack PDU, 0U, 3-Phase, 17.3kW, 48 Outlet

Authorised APC Partner

APDU11350SW

Stock Status: Enquire

$5,077.20 inc. GST
$4,615.64 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC APDU11350SW is a NetShelter Advanced switched rack PDU in a vertical 0U format, built for high-density and AI racks. It accepts a three-phase IEC 60309 530P6 input (30A 3P+N+PE) and delivers up to 17.3kW at 415V 30A (UL), or 22.1kW at 400V 32A (IEC). Forty-eight outlets are provided: 24 C13/C15 outlets and 24 4-in-1 outlets, with a 3 m input cord.

Switched outlets allow remote on/off control, and the embedded NMC3 network management card with display module supports monitoring and management from the network. The 4-in-1 combination outlets act as C13, C15, C19 and C21 in a single outlet, so one PDU can power a mix of servers, storage and network equipment without adaptors. Outlets are colour-coded or labelled by breaker and input phase, which simplifies balanced load planning.

Features

- 4-in-1 combination outlets act as C13, C15, C19 and C21 in a single outlet
- Designed for AI and other high-density applications
- Switched outlets allow remote on/off control
- Outlets are colour-coded or labelled by breaker and input phase
- Network management with display module (embedded NMC3)

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Switched rack PDU, 0U vertical
- 3-phase input, IEC 60309 530P6 (30A 3P+N+PE) plug
- 17.3 kW at 415V 30A (UL) / 22.1 kW at 400V 32A (IEC)
- 48 outlets total: (24) C13/C15 and (24) 4-in-1 C13/C15/C19/C21
- Input voltage 400-415V, worldwide (WW) model
- Cord length 3 m
- Embedded NMC3 network management card with display module
- Warranty: 3 years

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input plug does the APDU11350SW use?
A: It has a three-phase IEC 60309 530P6 plug (30A 3P+N+PE) on a 3 m cord, so it needs a matching 30A three-phase supply.

Q: How much power can this PDU deliver?
A: It delivers up to 17.3kW at 415V 30A (UL) or 22.1kW at 400V 32A (IEC), depending on the supply it is connected to.

Q: What outlet types are provided?
A: There are 48 outlets in total: 24 C13/C15 outlets and 24 4-in-1 outlets that each work as C13, C15, C19 or C21.

Q: Can outlets be switched on and off remotely?
A: Yes. This is a switched PDU, so individual outlets can be controlled remotely through the embedded NMC3 network management card.

Q: Does it need a separate network management card?
A: No. An NMC3 network management card with display module is embedded, so no extra card is required for network monitoring and control.

Q: How is it mounted in the rack?
A: It is a 0U vertical PDU, so it mounts alongside the equipment and does not use any rack unit space.
