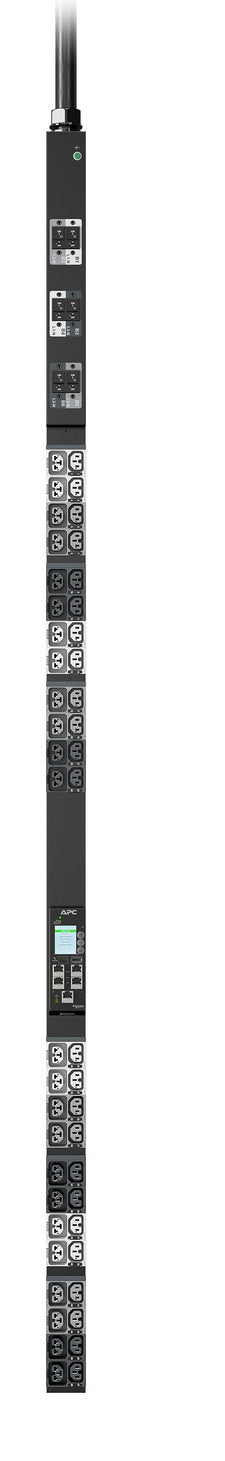

• APC APDU11350ME black vertical metered 0U PDU with 48 outlets and display
1 1

APC

APC APDU11350ME | NetShelter 0U Metered PDU, 3-Phase 415V 30A, 48 Outlets

APC APDU11350ME | NetShelter 0U Metered PDU, 3-Phase 415V 30A, 48 Outlets

Authorised APC Partner

APDU11350ME

In stock:17

$3,325.68 inc. GST
$3,023.35 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC APDU11350ME is a NetShelter Rack PDU Advanced, a metered 0U three-phase rack PDU for distributing power to servers and network equipment in a rack. It has an IEC 60309 30A 3P+N+PE (530P6) input and delivers up to 17.3 kW at 415V 30A, or 22.1 kW at 400V 32A, through 48 outlets in a slim 5.6 cm wide vertical form factor.

Outlets are split into 24 combination outlets that accept C13, C15, C19 or C21 connectors and 24 C13/C15 outlets, so mixed server and network loads can be powered from one PDU. PDU-level metering with 1% accuracy, network management through a live-swappable NMC3 card, and integration with EcoStruxure IT give visibility and control over rack power. This unit replaces the APDU10350ME.

Features

- 4-in-1 combination outlets that work as C13, C15, C19 or C21
- High outlet density with 48 outlets in a 5.6 cm wide form factor
- PDU-level power metering with overload notification
- Outlets colour-coded and labelled by breaker
- Live-swappable NMC3 network management card to minimise downtime
- Integrates with EcoStruxure IT and is configurable via web, SNMP and CLI
- Two environmental sensor ports for optional sensors, sold separately
- Replaces APDU10350ME

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- PDU type: Metered, 0U vertical
- Input connection: IEC 60309 30A 3P+N+PE (530P6)
- Input voltage: 415 V AC / 400 V AC
- Power capacity: 17.3 kW at 415V 30A, or 22.1 kW at 400V 32A
- Outlets: 48 total
- Outlet types: 24 x IEC 60320 C13/C15/C19/C21 combination, 24 x IEC 60320 C13/C15
- Input cord length: 3 m (9.8 ft)
- Metering accuracy: 1% at PDU level
- Network port: 1 x RJ-45 10/100/1000 Ethernet
- Link ports: 2, cascading up to 32 PDUs with network port sharing
- Environmental sensor ports: 2
- Maximum operating temperature at full load: 60 C (140 F)
- Width: 5.6 cm (2.2 in)
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does the APDU11350ME use?
A: It has an IEC 60309 30A 3P+N+PE (530P6) input on a 3 m cord, so it needs a matching three-phase supply outlet.

Q: How much power can this PDU deliver?
A: It is rated for 17.3 kW at 415V 30A, or 22.1 kW at 400V 32A.

Q: What outlet types does it provide?
A: There are 48 outlets in total: 24 combination outlets that accept C13, C15, C19 or C21 connectors, and 24 C13/C15 outlets.

Q: Does it provide power metering?
A: Yes. It is metered at PDU level with 1% accuracy and includes overload notification.

Q: How is the PDU managed over the network?
A: Management is through a live-swappable NMC3 card with an RJ-45 10/100/1000 port. It can be configured via web, SNMP and CLI and integrates with EcoStruxure IT.

Q: Can I connect environmental sensors?
A: Yes. It has two environmental sensor ports for optional sensors, which are sold separately.
