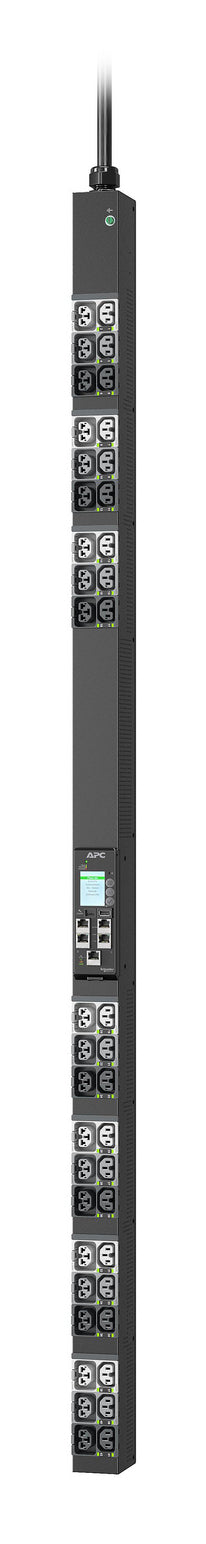

• APC APDU11250SW NetShelter black metal server rack PDU with 42 outlets and display
1 1

APC

APC APDU11250SW | NetShelter Advanced Switched 0U Rack PDU, 11.5kW 415V 20A 3-Phase, 42 Outlets

APC APDU11250SW | NetShelter Advanced Switched 0U Rack PDU, 11.5kW 415V 20A 3-Phase, 42 Outlets

Authorised APC Partner

APDU11250SW

Stock Status: Enquire

$3,735.55 inc. GST
$3,395.95 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter Advanced switched 0U rack PDU delivers up to 11.5 kW of three-phase power at 415 V and 20 A through 42 outlets, with a 520P6 (IEC 60309 20 A 3P+N+PE) input plug. Designed for high-density server and network racks, it provides remote per-outlet on/off control and PDU-level power metering in a slim vertical form factor.

The outlet mix includes 21 combination outlets that work as C13, C15, C19 or C21, plus 21 C13/C15 outlets, arranged in alternating phase groups to simplify cable management and load balancing. A second Ethernet port supports cascading, a second private network or network redundancy, and the PDU is EcoStruxure IT compatible.

Features

- High outlet density with 42 outlets in a 2.2 in wide form factor
- Switched outlets can be turned on or off remotely
- PDU-level power metering for visibility and overload notification
- 4-in-1 combination outlets work as C13, C15, C19 or C21
- Alternating phase outlet groups for better cable management and load balancing
- Power Sharing across cascaded PDUs keeps the network management card running during AC loss
- Second 10/100 Ethernet port for cascading, a second private network or network redundancy
- Enhanced cybersecurity and EcoStruxure IT compatible
- 1 year free subscription to Secure NMC3

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Switched rack PDU, 0U vertical mounting
- Capacity: 11.5 kW / 11500 VA
- Input: three-phase, 415 V, 20 A (346-415 V AC, 50/60 Hz)
- Input plug: IEC 60309 20 A 3P+N+PE (520P6)
- Output voltage: 240 V AC
- Outlets: 42 total, 21 x C13/C15/C19/C21 combination and 21 x C13/C15
- Input cable length: 3 m (9.8 ft)
- Metering accuracy: 1%
- Dimensions: 56 mm wide x 75 mm deep x approx. 1491 mm high
- Net weight: 7.2 kg (15.9 lb)
- Dual Ethernet ports for cascading

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input plug does the APDU11250SW use?
A: It uses an IEC 60309 20 A 3P+N+PE plug (520P6), so the supply must provide a matching three-phase 20 A receptacle.

Q: Can I switch individual outlets on and off remotely?
A: Yes. This is a switched PDU, so each outlet can be turned on or off remotely over the network.

Q: Which outlet types does it provide?
A: It has 42 outlets: 21 combination outlets that work as C13, C15, C19 or C21, plus 21 C13/C15 outlets.

Q: How is it mounted in the rack?
A: It is a 0U vertical PDU, so it mounts alongside the equipment in the rack without using any rack unit space.

Q: What is the maximum load capacity?
A: It is rated for 11.5 kW (11500 VA) at 415 V and 20 A three-phase.

Q: Can multiple PDUs be linked together?
A: Yes. The second Ethernet port supports cascading, and Power Sharing across cascaded PDUs keeps the network management card running during an AC loss.
