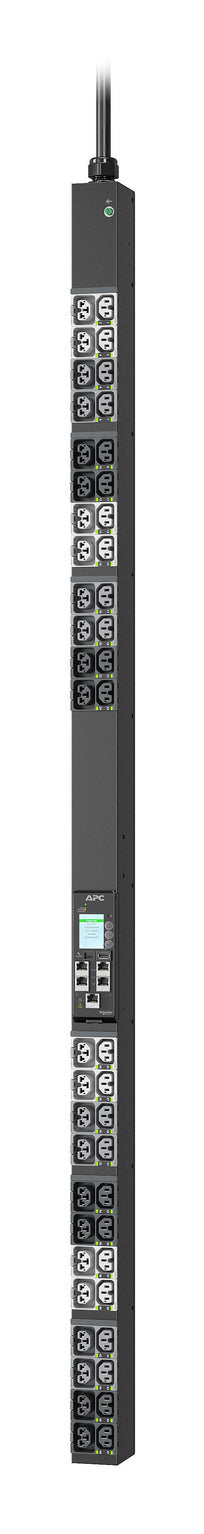

• APC APDU11250SM NetShelter Switched 11.5kW metered PDU black vertical unit
1 1

APC

APC APDU11250SM | NetShelter Switched Metered 0U Rack PDU, 11.5kW, 48 Outlets

APC APDU11250SM | NetShelter Switched Metered 0U Rack PDU, 11.5kW, 48 Outlets

Authorised APC Partner

APDU11250SM

Stock Status: Enquire

$4,901.24 inc. GST
$4,455.67 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC APDU11250SM is a three-phase switched rack PDU with outlet-level metering, built for high-density server and network racks. It delivers 11.5kW at 415V 20A through an IEC 60309 520P6 input and provides 48 outlets in a narrow 0U vertical form factor, so rack space is preserved for equipment.

Switched outlets can be turned on or off remotely, and outlet-level and PDU-level metering gives power visibility with overload notification. The network management card with Gigabit Ethernet supports remote monitoring, and two sensor ports accept optional environmental sensors. The 4-in-1 combination outlets suit C13, C15, C19 and C21 connections, and the unit is compatible with EcoStruxure IT.

Features

- Switched outlets allow turning outlets on or off remotely
- Outlet-level and PDU-level power metering for visibility and overload notification
- 4-in-1 combination outlets provide deployment flexibility across device types
- Maximum outlet density of 48 outlets in a narrow 0U footprint
- Outlets are colour coded and labelled by breaker and phase for easier deployment
- Enhanced cybersecurity and EcoStruxure IT compatible

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Switched, metered-by-outlet rack PDU
- 0U vertical mounting, 2.2 in (5.6 cm) wide form factor
- 48 outlets, 4-in-1 combination outlets usable as C13/C15/C19/C21
- Input: IEC 60309 520P6, 20A, 3P+N+PE
- Rated 11 kW at 400V/16A or 11.5 kW at 415V/20A (11500 VA)
- Output voltage 240V, 50/60 Hz
- Input cord length 3 m (9.8 ft)
- 1% metering accuracy
- Two environmental sensor ports for optional sensors
- Network management card (NMC3) with Gigabit Ethernet
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does the APDU11250SM use?
A: It uses an IEC 60309 520P6 input rated at 20A, 3P+N+PE, with a 3 m input cord.

Q: What outlet types does it support?
A: It provides 48 4-in-1 combination outlets that can be used as C13, C15, C19 or C21.

Q: Can I switch outlets on and off remotely?
A: Yes. This is a switched PDU, so individual outlets can be turned on or off remotely through the network management card.

Q: What power capacity does it support?
A: It is rated at 11 kW on 400V/16A or 11.5 kW (11500 VA) on 415V/20A, with a 240V output.

Q: Does it support environmental monitoring?
A: Yes. It has two environmental sensor ports for optional sensors, and the NMC3 network management card provides Gigabit Ethernet connectivity.

Q: How is it mounted in the rack?
A: It mounts vertically in a 0U position and is 5.6 cm wide, so it does not use any rack unit space.
