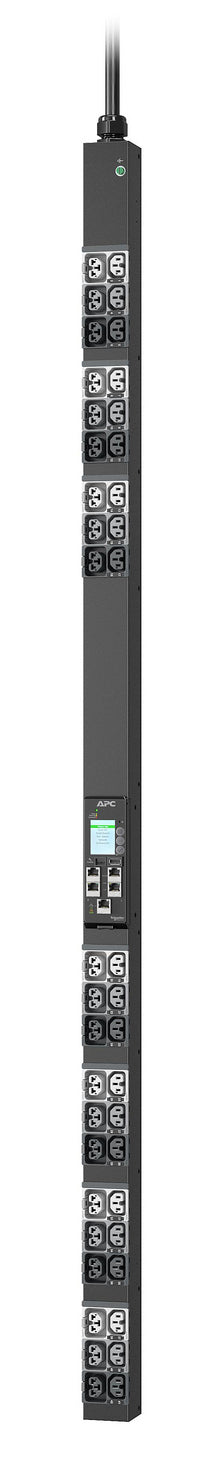

• APC APDU11250ME NetShelter black metal rack PDU with power outlets and display
1 1

APC

APC APDU11250ME | NetShelter Advanced Metered Rack PDU, 11.5kW 415V 20A, 42 Outlet

APC APDU11250ME | NetShelter Advanced Metered Rack PDU, 11.5kW 415V 20A, 42 Outlet

Authorised APC Partner

APDU11250ME

Stock Status: Enquire

$2,346.45 inc. GST
$2,133.14 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC APDU11250ME is a NetShelter Advanced metered 3-phase 0U rack PDU that distributes power to servers and networking equipment in a data centre or server room. It accepts a 400V 16A (11kW) or 415V 20A (11.5kW) three-phase input via an IEC 60309 520P6 plug and delivers 240V AC to 42 outlets, including 4-in-1 combination outlets that work as C13, C15, C19 or C21.

PDU-level metering with overload notification and remote monitoring through the NMC3 network management card (web, SNMP and CLI) gives administrators clear visibility of rack power. The slim 2.2 in wide vertical form factor maximises outlet density, and up to 32 PDUs can be cascaded on a single network connection. It integrates with EcoStruxure IT and supports optional environmental sensors.

Features

- 4-in-1 combination outlets work as C13, C15, C19 or C21 for deployment flexibility
- 42 outlets in a 2.2 in wide form factor for maximum outlet density
- Outlets are colour coded and labelled by breaker
- Live-swappable NMC3 minimises downtime if the card loses power
- Network port sharing lets cascaded PDUs share power so the NMC keeps running
- Integrates with EcoStruxure IT
- Enhanced cybersecurity
- Rated to operate up to 60°C at full load
- PDU-level power metering with overload notification
- Optional environmental sensors (sold separately)

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Type: Metered, 3-phase, 0U vertical rack PDU
- Input: 3PH, 400V 16A (11kW) or 415V 20A (11.5kW)
- Input plug: IEC 60309 520P6 (3P+N+PE, 20A)
- 42 outlets: 21 x C13/C15/C19/C21 4-in-1 combination outlets plus 21 x C13/C15 outlets
- Output voltage: 240V AC
- Input cord length: 3 m (9.84 ft)
- Form factor: 0U, 2.2 in (5.6 cm) wide, approx. 58.7 in high
- Weight: approx. 12.57 lb
- Management: NMC3 (web, SNMP, CLI)
- Ports: 1 x Gigabit Ethernet (10/100/1000), 2 link ports (cascade up to 32 PDUs), 2 environmental sensor ports
- Metering accuracy: 1%
- Maximum operating temperature: 60°C (140°F) at full load
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input does the APDU11250ME require?
A: It requires a three-phase supply, either 400V 16A (11kW) or 415V 20A (11.5kW), connected through the attached 3 m cord with an IEC 60309 520P6 plug.

Q: What types of outlets does it provide?
A: It has 42 outlets in total: 21 x 4-in-1 combination outlets that work as C13, C15, C19 or C21, plus 21 x C13/C15 outlets. Output voltage is 240V AC.

Q: Can I monitor power remotely?
A: Yes. The metered PDU includes an NMC3 network management card with web, SNMP and CLI access, plus PDU-level metering and overload notification.

Q: Can multiple PDUs share one network connection?
A: Yes. The two link ports allow up to 32 PDUs to be cascaded, and network port sharing lets cascaded units share power so the NMC keeps running.

Q: Does it support environmental monitoring?
A: It has two environmental sensor ports for optional sensors, which are sold separately.

Q: What is the mounting format?
A: It is a 0U vertical PDU, 2.2 in (5.6 cm) wide and approx. 58.7 in high, designed to mount alongside equipment in the rack without using rack units.
