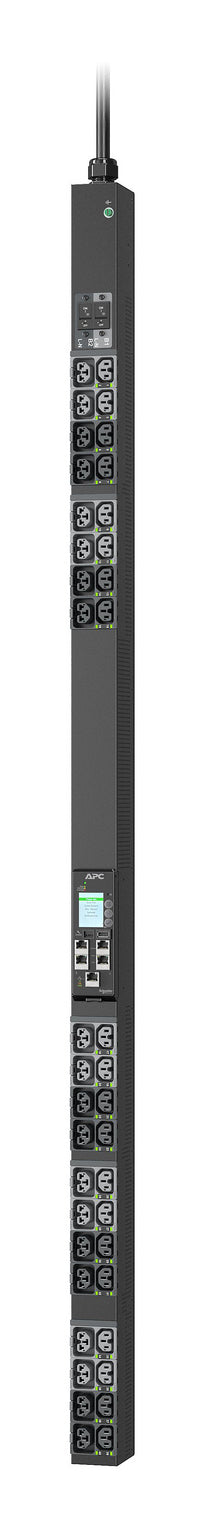

• APC APDU11150SW NetShelter black metal server rack PDU with 42 outlets and display
1 1

APC

APC APDU11150SW | NetShelter Advanced Switched Rack PDU, 7.4kW, 32A, 40 Outlet

APC APDU11150SW | NetShelter Advanced Switched Rack PDU, 7.4kW, 32A, 40 Outlet

Authorised APC Partner

APDU11150SW

Stock Status: Enquire

$3,241.31 inc. GST
$2,946.65 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC APDU11150SW is a NetShelter Advanced switched rack PDU rated at 7.4kW, 32A and 230V single phase, with 40 outlets in a 0U vertical form factor. Each outlet can be switched on and off remotely, and the PDU provides PDU-level power metering, making it well suited to server racks and data centre deployments that need remote power control.

The 40 combination outlets each work as C13, C15, C19 or C21, so mixed equipment loads can be powered from the one PDU. It is managed through a Network Management Card 3 (NMC3) via web, SNMP and CLI, integrates with EcoStruxure IT, and supports cascading up to 32 PDUs through its link ports.

Features

- 4-in-1 combination outlets act as C13, C15, C19 and C21 in one outlet
- Maximum outlet density, 40 outlets in a 2.2 in (5.6 cm) wide form factor
- Outlets are colour coded and labelled by breaker
- Live-swappable NMC3 to minimise downtime
- Integrates with EcoStruxure IT, and is managed via web, SNMP and CLI
- Enhanced cybersecurity, with a 1 year free subscription to Secure NMC3 System
- Two link ports for cascading up to 32 PDUs, with network port sharing for power sharing between PDUs
- Two environmental sensor ports for optional sensors (sold separately)
- Rated up to 60 C (140 F) at full load

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 7.4 kW / 32 A / 230 V single phase
- 40 x 4-in-1 combination outlets (usable as C13, C15, C19 or C21)
- Switched outlets (remote on/off)
- PDU-level power metering
- 0U vertical form factor, 2.2 in (5.6 cm) wide
- 3 m (10 ft) input cord
- Rated to operate up to 60 C (140 F) at full load
- 1 x 10/100/1000 Ethernet network port
- 2 x link ports, cascade up to 32 PDUs, with network port sharing
- 2 x environmental sensor ports

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Can the outlets on the APDU11150SW be switched remotely?
A: Yes. This is a switched PDU, so each outlet can be turned on and off remotely through the network management interface.

Q: What outlet types does this PDU support?
A: It has 40 x 4-in-1 combination outlets, each of which can be used as a C13, C15, C19 or C21 outlet, so no fixed outlet mix is needed.

Q: How is the APDU11150SW managed?
A: It is managed through a Network Management Card 3 (NMC3) over web, SNMP or CLI, and it integrates with EcoStruxure IT. The NMC3 is live-swappable.

Q: Can multiple PDUs be linked together?
A: Yes. The two link ports allow up to 32 PDUs to be cascaded, with network port sharing so a single network connection can serve the linked PDUs.

Q: Does it support environmental monitoring?
A: It has two environmental sensor ports for optional sensors, which are sold separately.

Q: What is the power rating and input?
A: It is rated at 7.4 kW, 32 A and 230 V single phase, with a 3 m input cord and a 332P6 input connection.
