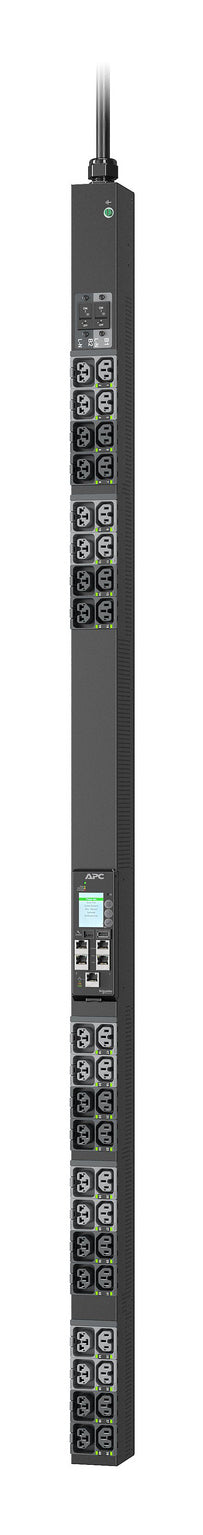

• APC APDU11150SM black metal server rack PDU with power outlets and display
1 1

APC

APC APDU11150SM | NetShelter Advanced Switched Metered Rack PDU, 7.4kW 230V 32A, 40 Outlets

APC APDU11150SM | NetShelter Advanced Switched Metered Rack PDU, 7.4kW 230V 32A, 40 Outlets

Authorised APC Partner

APDU11150SM

Stock Status: Enquire

$4,282.91 inc. GST
$3,893.55 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter Rack PDU Advanced is a 0U switched metered rack PDU delivering 7.4kW from a single-phase 230V 32A IEC 60309 332P6 input. It provides 40 combination outlets, outlet-level and PDU-level metering, and remote outlet on/off control, making it well suited to high-density server and network racks that need power visibility and remote power cycling.

Each of the 40 outlets is a 4-in-1 combination outlet that accepts C13, C15, C19 and C21 plugs, so one PDU supports a mix of equipment without adapters. The NMC3 network management card adds Gigabit Ethernet management over web, SNMP and CLI, with cascading of up to 32 PDUs and network port sharing. Two environmental sensor ports allow temperature and humidity monitoring with compatible sensors, and the unit is EcoStruxure IT compatible.

Features

- 4-in-1 combination outlets give flexible deployment for C13, C15, C19 and C21 equipment
- Switched outlets allow remote power cycling of individual outlets
- Outlet and PDU level metering give power visibility and overload notification
- Live-swappable NMC3 minimises downtime in the event of an NMC power event
- Network port sharing keeps the management card running through AC power loss in cascaded PDUs
- Web, SNMP and CLI access and configuration
- Enhanced cybersecurity and EcoStruxure IT compatible
- Outlets are colour coded and labelled by breaker
- 1% metering accuracy suitable for usage-based billing and capacity planning

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- 7.4kW rated power, 1-phase, 230V, 32A input
- Input connection: IEC 60309 332P6 (32A) with 3 m (10 ft) input cord
- 40 x 4-in-1 combination outlets (each works as C13, C15, C19 or C21)
- Switched outlets (remote on/off) with outlet-level and PDU-level metering
- Zero U (0U) vertical rack mount, 2.2 in (5.6 cm) wide form factor
- NMC3 network management card with 1 x 10/100/1000 Gigabit Ethernet port and 2 link ports
- Cascades up to 32 PDUs, with network port sharing (NPS)
- Rated to operate up to 60°C (140°F) at full load
- Two environmental sensor ports (sensors sold separately)
- 1% metering accuracy
- Weight approx. 9.12 kg

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does the APDU11150SM use?
A: It has a 3 m (10 ft) input cord terminated with an IEC 60309 332P6 (32A) plug, for a single-phase 230V 32A supply.

Q: Which equipment plugs can the outlets accept?
A: All 40 outlets are 4-in-1 combination outlets, so each one works as a C13, C15, C19 or C21 outlet.

Q: Can I switch individual outlets on and off remotely?
A: Yes. This is a switched PDU, so individual outlets can be turned on, off or power cycled remotely through the web interface, SNMP or CLI.

Q: Does it meter power at the outlet level?
A: Yes. It provides both outlet-level and PDU-level metering with 1% accuracy, suitable for capacity planning and usage-based billing.

Q: Can I monitor rack temperature and humidity with it?
A: The PDU has two environmental sensor ports for connecting compatible sensors. The sensors are sold separately.

Q: Can multiple PDUs share one network connection?
A: Yes. The NMC3 supports cascading of up to 32 PDUs with network port sharing, which reduces the number of network connections needed.
