• APC APDU11150ME NetShelter black 0U metered rack PDU 40 outlets 230V 32A
1 1

APC

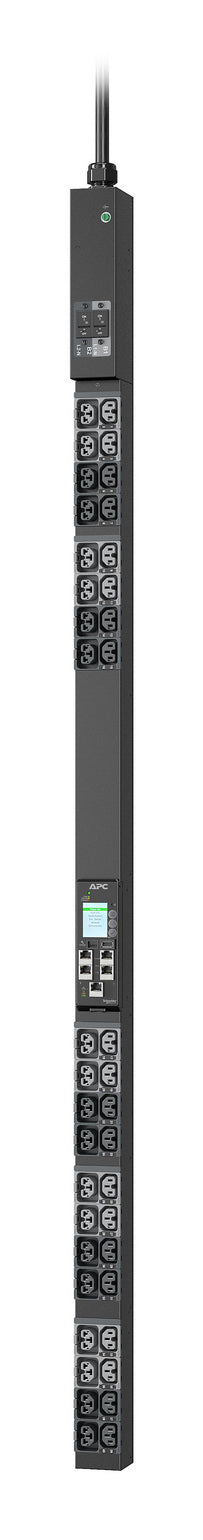

APC APDU11150ME | NetShelter Advanced Metered 0U Rack PDU, 7.4kW, 32A, 40 Outlets

APC APDU11150ME | NetShelter Advanced Metered 0U Rack PDU, 7.4kW, 32A, 40 Outlets

Authorised APC Partner

APDU11150ME

In stock:5

$1,794.40 inc. GST
$1,631.27 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter Rack PDU Advanced is a vertical 0U metered rack PDU delivering 7.4kW from a single-phase 230V 32A supply, with 40 outlets for dense server and network racks. Twenty outlets are 4-in-1 combination outlets that accept C13, C15, C19 or C21 connections, and the other twenty are C13/C15, so mixed equipment can be powered from one unit. Input is via an IEC 60309 32A (332P6) plug on a 3 m cord.

PDU-level metering with 1% accuracy and overload notification gives visibility of rack power draw. The embedded NMC3 network card provides a 10/100/1000 Ethernet connection with web, SNMP and CLI management and integrates with EcoStruxure IT, while two link ports allow up to 32 PDUs to be cascaded. The unit is rated for operation up to 60 C at full load.

Features

- 4-in-1 combination outlets that work as C13, C15, C19 or C21
- PDU-level power metering with overload notification
- Metering accuracy of 1%
- 40 outlets in a slim 5.6 cm (2.2 in) wide form factor
- Outlets colour-coded and labelled by breaker
- Live-swappable NMC3 card to minimise downtime
- Management via web, SNMP and CLI, with EcoStruxure IT integration
- Rated for operation up to 60 C at full load
- Enhanced cybersecurity with NMC3 meeting IEC 62443-4-2
- Cascade up to 32 PDUs over two link ports

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- 0U vertical, single-phase metered rack PDU
- 7.4 kW, 230V, 32A
- Input plug: IEC 60309 32A 2P+E (332P6)
- 40 outlets: 20 x C13/C15/C19/C21 combination plus 20 x C13/C15
- 3 m (10 ft) input cord
- Metering accuracy: 1%
- 1 x 10/100/1000 Ethernet port (NMC3) plus 2 link ports
- Cascading: up to 32 PDUs
- Maximum operating temperature at full load: 60 C (140 F)

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input supply does the APDU11150ME require?
A: It is a single-phase unit rated for 230V at 32A, with an IEC 60309 32A 2P+E (332P6) plug on a 3 m input cord. A matching 32A supply is required.

Q: What types of outlets does it provide?
A: It has 40 outlets in total. Twenty are 4-in-1 combination outlets that work as C13, C15, C19 or C21, and twenty are C13/C15.

Q: Is this PDU metered or switched?
A: It is a metered PDU, with PDU-level power metering at 1% accuracy and overload notification. It does not switch individual outlets.

Q: How is the PDU managed over the network?
A: An embedded NMC3 card provides a 10/100/1000 Ethernet port with web, SNMP and CLI management. It integrates with EcoStruxure IT.

Q: Can multiple PDUs share one network connection?
A: Yes. Two link ports allow up to 32 PDUs to be cascaded.

Q: How is it mounted in the rack?
A: It is a vertical 0U PDU, so it mounts alongside the equipment in the rack and does not use any rack unit space.
