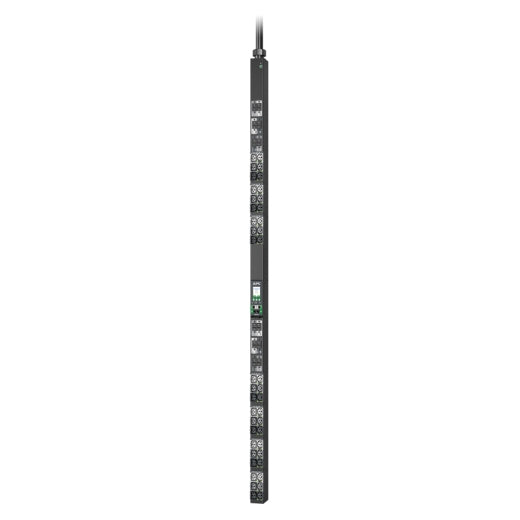

• APC APDU10450ME black vertical metered rack PDU with 42 outlets
1 1

APC

APC APDU10450ME | NetShelter Advanced Metered 3-Phase Rack PDU, 43.5kW, 42 Outlets

APC APDU10450ME | NetShelter Advanced Metered 3-Phase Rack PDU, 43.5kW, 42 Outlets

Authorised APC Partner

APDU10450ME

Stock Status: Enquire

$4,799.03 inc. GST
$4,362.75 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetShelter Rack PDU Advanced APDU10450ME is a 0U vertical metered three-phase rack PDU for server and network racks. It delivers 43.5kW at 400V 63A or 34.6kW at 415V 60A through an IEC 60309 560P6 input, with 42 outlets in a slim 2.2 inch wide chassis. PDU-level power metering is available through a local display and remote access, with overload notification to help prevent downtime.

Outlets are colour coded and labelled by breaker and input phase, and the alternating phase layout simplifies cord management and load balancing. Four-in-1 combination outlets accept C13, C15, C19 or C21 connectors, and two Ethernet ports allow daisy chaining with Power Sharing so cascaded PDUs can keep the Network Management Card running during an AC power loss.

Features

- 4-in-1 combination outlets that can be used as C13, C19, C15 or C21
- Maximum outlet density: 42 outlets in a 2.2 inch wide form factor
- Outlets colour coded and/or labelled by breaker and input phase
- Alternating phase design for easier cord management and better load balancing
- Power Sharing keeps the Network Management Card running during an AC power loss on cascaded PDUs
- Live Swap Network Management Card, replaceable without powering down the PDU or connected devices
- Local display and remote access for power metering and overload notification
- Rated to operate up to 60°C (140°F) at full load

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Metered, 3-phase, 0U vertical rack PDU
- 43.5kW at 400V 63A, or 34.6kW at 415V 60A
- Input: IEC 60309 60A 3P+N+PE (560P6)
- 42 outlets total: 21 x C13/C15/C19/C21 and 21 x C13/C15
- Width 56mm (2.2 in), depth 75mm
- Height approx. 1826mm
- Weight approx. 11.7kg
- Operating temperature up to 60°C (140°F) at full load
- Two Ethernet ports for daisy chaining with Power Sharing

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does the APDU10450ME use?
A: It uses an IEC 60309 60A 3P+N+PE (560P6) input, supporting 43.5kW at 400V 63A or 34.6kW at 415V 60A.

Q: How many outlets does it have and what types?
A: It has 42 outlets: 21 x C13/C15/C19/C21 combination outlets and 21 x C13/C15 outlets.

Q: Is this a metered or switched PDU?
A: It is a metered PDU. It provides PDU-level power metering via a local display and remote access, with overload notification, but does not switch outlets individually.

Q: Can the PDU be mounted without using rack space?
A: Yes. It is a 0U vertical PDU with a slim 56mm (2.2 in) width, so it mounts alongside equipment without consuming rack units.

Q: Can multiple PDUs be daisy chained?
A: Yes. Two Ethernet ports support daisy chaining, and Power Sharing lets cascaded PDUs keep the Network Management Card running during an AC power loss.

Q: Can the Network Management Card be replaced while the PDU is in use?
A: Yes. The Live Swap Network Management Card can be replaced without powering down the PDU or the connected devices.
