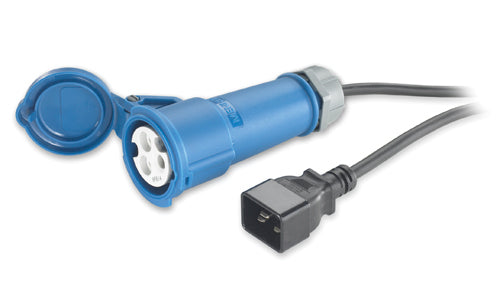

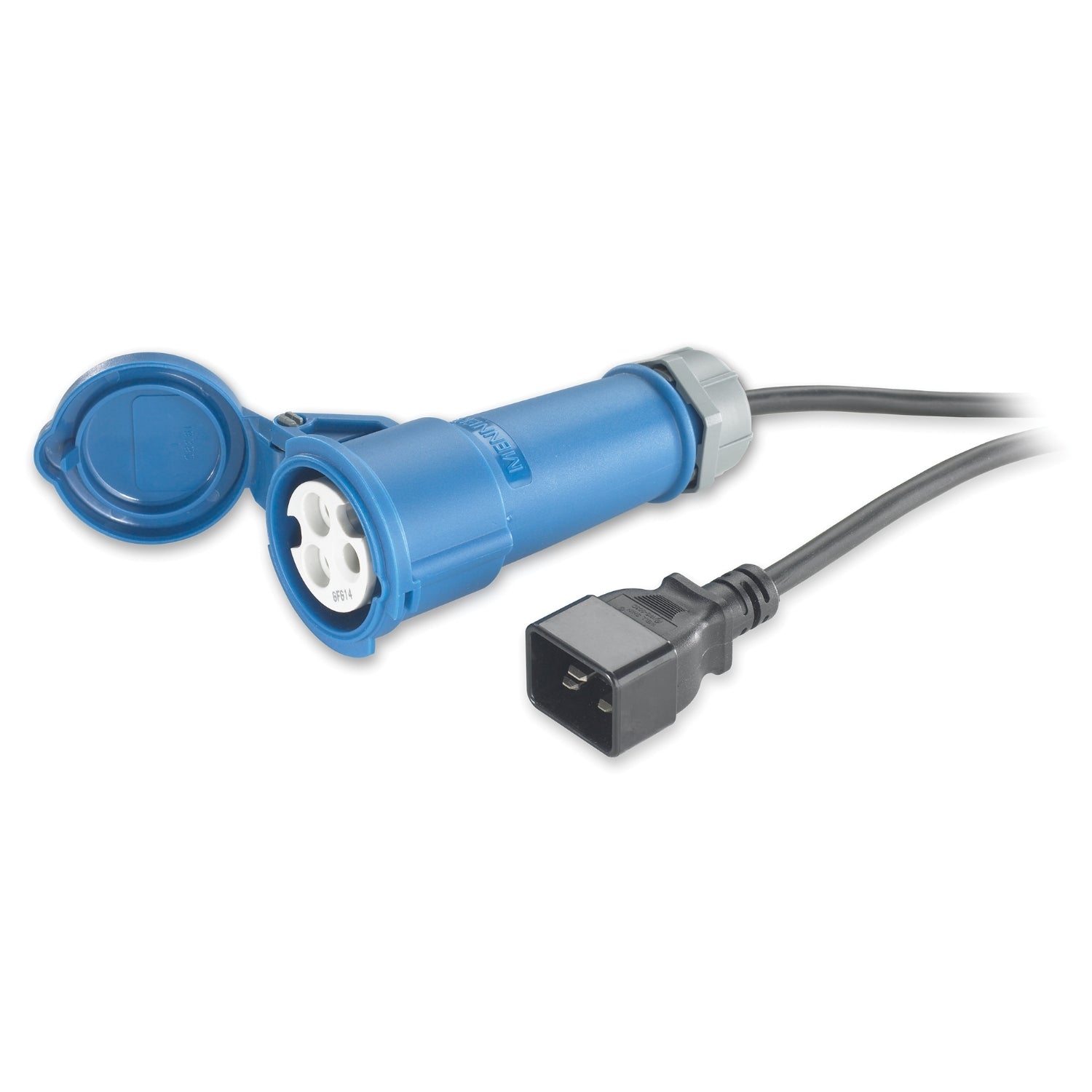

• APC AP9899 NetShelter C20 to IEC309 16A 2.5m blue power connector
  • APC AP9899 NetShelter C20 to IEC309 16A 2.5m blue power cord

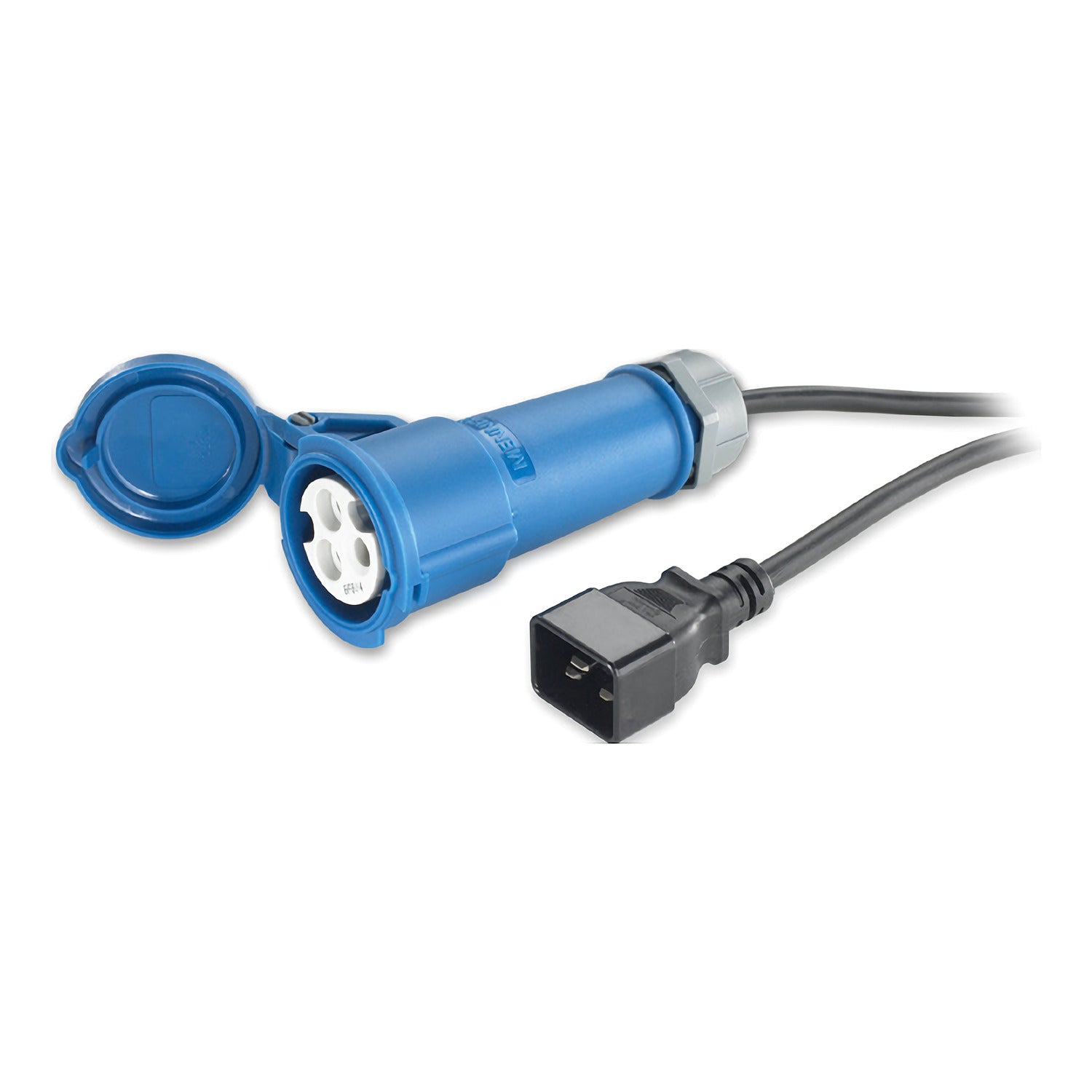

  • APC AP9899 blue C20 to IEC309 16A 2.5m rack power cord with hinged cover
1 3

APC

APC AP9899 | NetShelter Power Cord, C20 to IEC309 16A, 2.5m

APC AP9899 | NetShelter Power Cord, C20 to IEC309 16A, 2.5m

Authorised APC Partner

AP9899

In stock:2

$359.13 inc. GST
$326.48 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter AP9899 is a 2.5m power cord with an IEC 60320 C20 input and a 16A IEC 60309 (2P+E) connector, designed for rack power distribution. It connects an IEC C19 outlet on a rack PDU to a 16A IEC 309 connector, so a 16A IEC 309 plug can be used with a Rack PDU that has IEC C19 outlets.

This standalone cord is rated for 16A and is VDE certified and RoHS compliant. It suits data centre and server room deployments where the PDU outlet type and the downstream power connection need to be matched with a short, purpose-built lead.

Features

- Connects an IEC C19 outlet to an IEC 309-16A connector
- Allows a 16A IEC 309 plug to be used with a Rack PDU that has IEC C19 outlets
- 16A current rating
- Standalone cord, not rack-mountable
- VDE certified
- RoHS compliant

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Input connection: IEC 60320 C20
- Output connection: 1 x IEC 60309 16A 2P+E
- Cable length: 2.5 m
- Maximum current: 16 A
- Colour: Black
- Dimensions (H x W x D): 9.5 x 29.2 x 9.5 cm
- Net weight: 0.5 kg
- Certification: VDE
- Operating temperature: -10 to 40 °C
- Operating humidity: 20-80%
- Storage temperature: 10 to 30 °C

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What does the APC AP9899 power cord connect?
A: It connects an IEC C19 outlet on a rack PDU to a 16A IEC 309 connector, using a C20 input and an IEC 60309 16A 2P+E output.

Q: How long is the AP9899 power cord?
A: The cord length is 2.5 metres.

Q: What is the maximum current rating?
A: The AP9899 is rated for a maximum of 16 A.

Q: Can I use a 16A IEC 309 plug with a Rack PDU that has C19 outlets?
A: Yes. This cord is designed for exactly that purpose, adapting a PDU with IEC C19 outlets to a 16A IEC 309 plug.

Q: Is the AP9899 rack-mountable?
A: No. It is a standalone power cord and does not mount in a rack.

Q: Which safety certifications does it carry?
A: The AP9899 is VDE certified and RoHS compliant.
