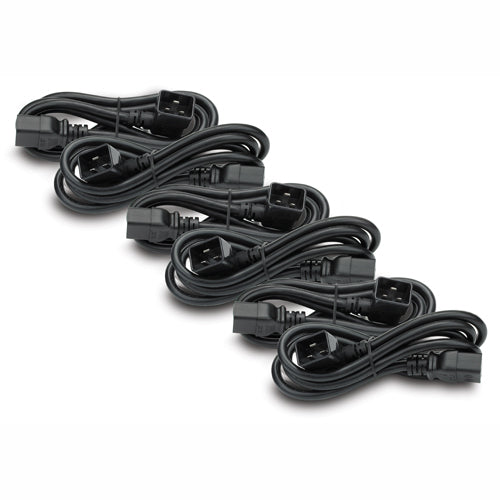

• APC AP98894F 16A C19 to C20R power cord kit with black coiled cords and 90° angled plug
1 1

APC

APC AP98894F | 16A Power Cord Kit, C19 to C20, 1.2m, 90° Angled, 6-Pack

APC AP98894F | 16A Power Cord Kit, C19 to C20, 1.2m, 90° Angled, 6-Pack

Authorised APC Partner

AP98894F

Stock Status: Enquire

$341.30 inc. GST
$310.27 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

This 16A power cord kit connects C19 to C20 with 90° angled plugs, supplied as a 6-piece kit of 1.2m cords. It includes three left-angle and three right-angle jumper cords, giving a low-profile cabling option for PDUs and equipment with C19 outlets and C20 inlets in dense rack environments.

The low-profile angled design avoids space interference when accessing removable hot-swap blade modules. It is part of the APC NetShelter power cord range and is rated for 16 A at 208/230V, with an operating temperature range of -5 to 60 °C.

Features

- Low-profile cord designed to eliminate space interference when accessing removable hot-swap blade modules
- Includes 3 left-angle and 3 right-angle jumper cords
- 16A rating suits high-current rack power connections
- Part of the APC NetShelter power cord range

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Kit of 6 cords: 3 left-angle and 3 right-angle jumper cords
- Connectors: IEC 60320 C19 to IEC 60320 C20 (90° angled)
- Cord length: 1.2 m
- Rated input current: 16 A (208/230V)
- Operating temperature: -5 to 60 °C
- Operating humidity: 5-95%
- Storage temperature: -25 to 65 °C
- Operating altitude: 0-10,000 ft
- Not rack-mountable
- GTIN: 731304261995

FAQs

Q: What connectors does the AP98894F use?
A: It uses IEC 60320 C19 to IEC 60320 C20 connectors, with 90° angled plugs.

Q: How many cords are in the AP98894F kit?
A: The kit contains six 1.2m cords: three left-angle and three right-angle jumper cords.

Q: What is the current rating of this power cord kit?
A: The cords are rated for 16 A at 208/230V.

Q: Why choose angled cords over straight cords?
A: The low-profile 90° angled plugs avoid space interference when accessing removable hot-swap blade modules, which helps in dense rack installations.

Q: What is the cord length?
A: Each cord in the kit is 1.2 metres long.

Q: What operating temperature range does the kit support?
A: The kit operates from -5 to 60 °C and can be stored from -25 to 65 °C.
