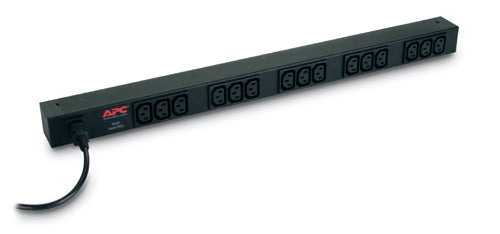

APC AP9568 | NetShelter Basic Rack PDU, 0U, 10A, 230V, 15x C13

APC AP9568 | NetShelter Basic Rack PDU, 0U, 10A, 230V, 15x C13

Authorised APC Partner

AP9568

In stock:32

$511.06 inc. GST
$464.60 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP9568 NetShelter Basic Rack PDU is a Zero U vertical rack PDU that distributes 230V power at up to 10A through 15 IEC 60320 C13 outlets. Its 0U form factor mounts vertically alongside equipment, keeping valuable rack units free for servers, switches and storage.

This basic (non-metered, non-switched) PDU ships with a 6.5 ft (approx. 2 m) input cord with an IEC 60320 C14 plug, rack mounting brackets and a toolless mounting kit for quick installation. It suits server racks and network cabinets that need dense C13 outlet capacity for IT equipment.

Features

- 15 C13 outlets for comprehensive power distribution
- Vertical Zero U mounting saves valuable rack space
- Supports up to 10A, 230V power distribution
- Toolless mounting kit for quick setup

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: Zero U (0U) vertical mount
- Input: 230V, 10A maximum input current
- Outlets: 15 x IEC 60320 C13
- Input power cord: 6.5 ft (approx. 2 m) with IEC 60320 C14 plug
- Capacity: 2.3kW, 240V, 10A
- Included: installation guide, rack mounting brackets, toolless mounting kit

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of outlets does the AP9568 provide?
A: It provides 15 IEC 60320 C13 outlets, suited to servers, switches and other IT equipment using C13 power cords.

Q: What is the input connection on the AP9568?
A: It has a fixed input cord of approximately 2 m (6.5 ft) terminated with an IEC 60320 C14 plug, rated for 230V at up to 10A.

Q: Is this PDU metered or switched?
A: No. The AP9568 is a basic rack PDU, so it provides power distribution only, without metering or remote outlet switching.

Q: How is the AP9568 mounted in the rack?
A: It is a Zero U vertical PDU and includes rack mounting brackets and a toolless mounting kit, so it mounts alongside equipment without using any rack units.

Q: What is the maximum current for this PDU?
A: The AP9568 supports a maximum input current of 10A at 230V.
