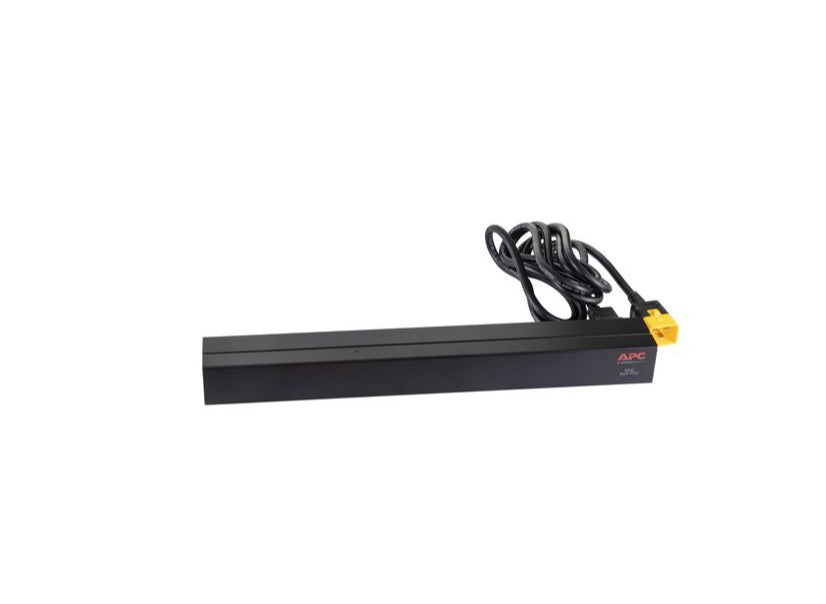

• APC AP9565 black rack PDU with coiled C20 cord and yellow connector
1 1

APC

APC AP9565 | NetShelter Basic Rack PDU, 1U, 16A, 208/230V, 12x C13

APC AP9565 | NetShelter Basic Rack PDU, 1U, 16A, 208/230V, 12x C13

Authorised APC Partner

AP9565

Stock Status: Enquire

$414.92 inc. GST
$377.20 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetShelter Basic Rack PDU is a non-switched 1U rack power distribution unit that delivers 208/230V single-phase power from a C20 inlet cord to 12 IEC C13 outlets. It suits server, storage and network racks where a simple, reliable 16A power feed is required, with a load capacity of 3680VA (3.7kW at 230V or 3.3kW at 208V).

The 1U form factor keeps rack space use to a minimum, and mounting brackets are included for both horizontal and vertical installation. Twelve C13 outlets power a wide range of IT equipment from a single feed, making this PDU a practical fit for standard 230V data centre and comms room deployments.

Features

- 12 x C13 outlets power multiple servers and network devices from one feed
- 1U design frees up valuable rack space
- Mounting brackets for horizontal and vertical installation included
- Non-switched basic design for simple, dependable power distribution
- Supports 208V and 230V single-phase 16A supplies

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 1U rack-mount, horizontal or vertical mounting brackets included
- PDU type: Basic (non-switched)
- Input: 1-phase, 200/208/230V, 16A, 50/60Hz
- Input connection: IEC 60320 C20 with attached cord, approx. 2.5m
- Output: 12 x IEC 60320 C13 outlets, 208/230V
- Load capacity: 3680VA (3.7kW at 230V, 3.3kW at 208V)
- Dimensions: approx. 44.7cm W x 5.7cm D x 4.4cm H
- Weight: approx. 2.05kg
- Warranty: 2 years

FAQs

Q: What type of inlet does the AP9565 use?
A: It has an attached cord terminated in an IEC 60320 C20 plug, rated for 16A single-phase 200/208/230V input.

Q: How many outlets does this PDU provide and what type are they?
A: It provides 12 x IEC 60320 C13 outlets at 208/230V, suitable for most servers, switches and storage equipment.

Q: Is the AP9565 a switched or metered PDU?
A: No. It is a basic non-switched PDU with no remote outlet control, intended for straightforward power distribution.

Q: What is the maximum load capacity?
A: The load capacity is 3680VA, equal to approximately 3.7kW at 230V or 3.3kW at 208V.

Q: Can it be mounted vertically in a rack?
A: Yes. Mounting brackets for both horizontal 1U installation and vertical installation are included.

Q: What is the warranty on this PDU?
A: It is backed by a 2-year warranty.
