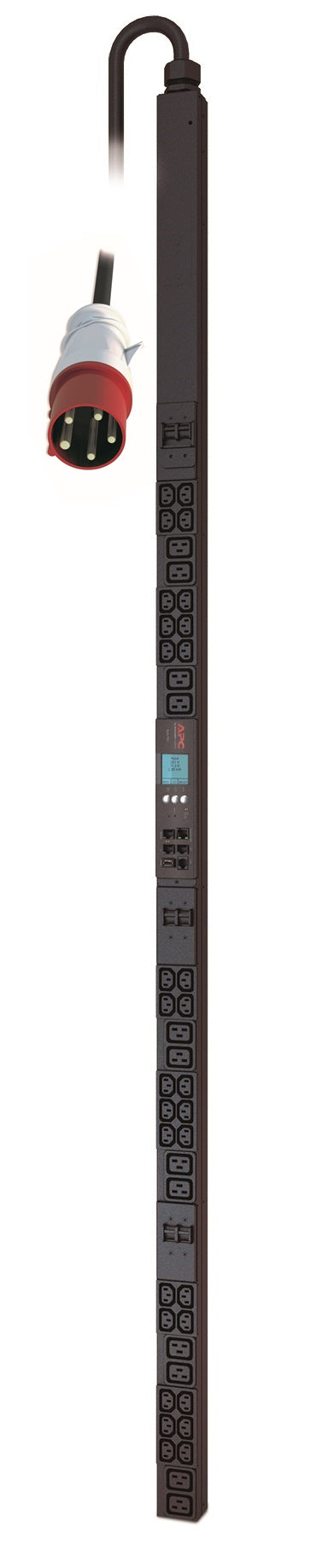

APC AP8886 | NetShelter Metered 3-Phase Rack PDU, 22kW 32A, 30 C13 12 C19

APC AP8886 | NetShelter Metered 3-Phase Rack PDU, 22kW 32A, 30 C13 12 C19

Authorised APC Partner

AP8886

In stock:12

$3,415.50 inc. GST
$3,105.00 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetShelter AP8886 is a 0U vertical metered 3-phase rack PDU delivering 22kW at 230V 32A or 17.3kW at 230V 24A to 30 IEC C13 and 12 IEC C19 outlets. It connects through an IEC 309 3P+N+PE input cord and provides real power monitoring, making it well suited to high-density server and network racks that need accurate load visibility.

User-defined alarm thresholds give real-time local and remote alerts for potential circuit overloads, supporting load balancing and right-sizing of IT environments. Secure Web, SNMP or Telnet access allows integration with APC centralised management platforms, while locking IEC receptacles help prevent accidental disconnection.

Features

- Active metering for energy optimisation and circuit protection
- User-defined alarm thresholds with real-time local and remote alerts for potential circuit overloads
- Locking IEC receptacles to help prevent accidental disconnection
- Ultra low profile circuit breakers
- Power utilisation data to support load balancing and right-sizing of IT environments
- Secure Web, SNMP or Telnet access with APC centralised management platform support

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 0U vertical, rack-mounted (Rack PDU 2G, Metered, ZeroU)
- Power capacity: 22kW (230V, 32A) or 17.3kW (230V, 24A)
- Input: 3-phase 400V, IEC 60309 32A 3P+N+E
- Input cord length: 1.83m (6 ft)
- Output voltage: 230V nominal
- Outlets: 30 x IEC 60320 C13 and 12 x IEC 60320 C19 (42 total)
- Metering: real power monitoring
- Sensor ports: 1 x temperature/humidity sensor port
- Management: Web, SNMP and Telnet interfaces
- Dimensions (H x W x D): 182.9 x 5.6 x 5.1 cm
- Weight: 8.72 kg
- Approvals: VCCI Class A, VDE
- RoHS compliant with exemptions; REACH free of SVHC above the threshold

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What power capacity does the AP8886 provide?
A: It delivers 22kW at 230V 32A or 17.3kW at 230V 24A, depending on the supply configuration.

Q: What outlets does the AP8886 have?
A: It has 30 x IEC 60320 C13 and 12 x IEC 60320 C19 outlets, 42 in total.

Q: What input connection does it use?
A: A 1.83m (6 ft) input cord with an IEC 60309 32A 3P+N+E plug for 3-phase 400V supply.

Q: Is this a metered or switched PDU?
A: It is a metered PDU. It provides real power monitoring and alarm thresholds, but does not offer per-outlet switching.

Q: How is the PDU managed and monitored?
A: Through Web, SNMP or Telnet interfaces, with support for APC centralised management platforms such as InfraStruxure Central.

Q: Can I connect environmental sensors?
A: Yes. It includes 1 x temperature/humidity sensor port.
